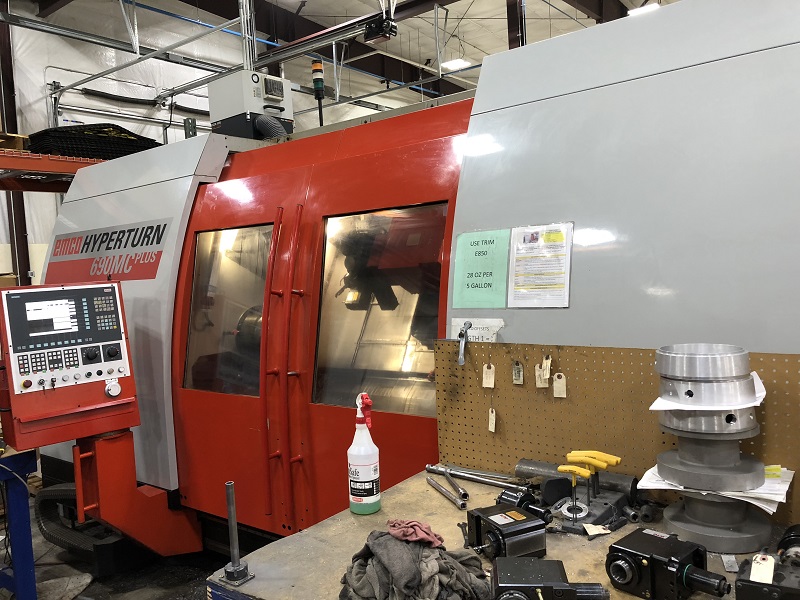

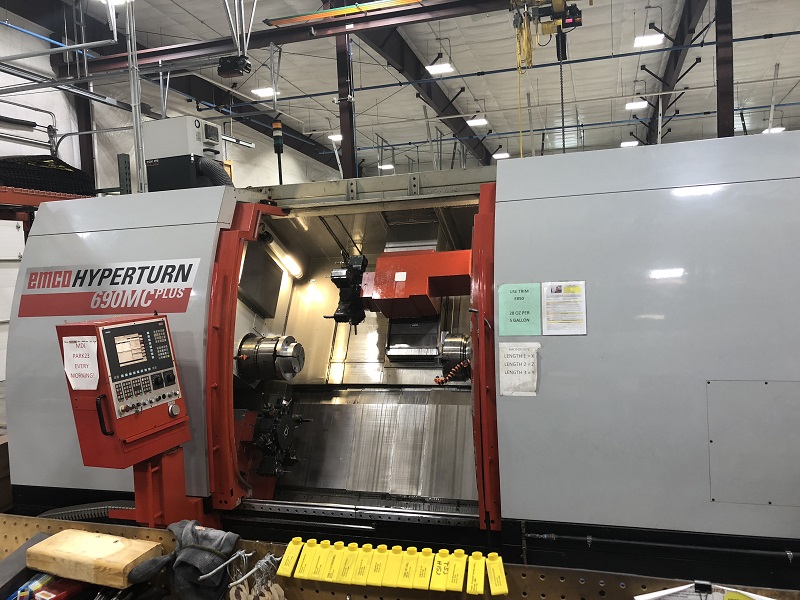

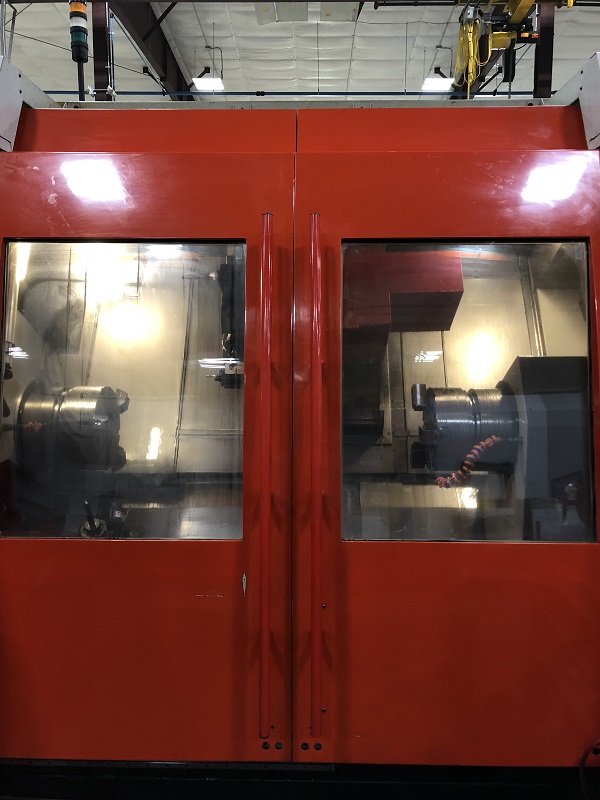

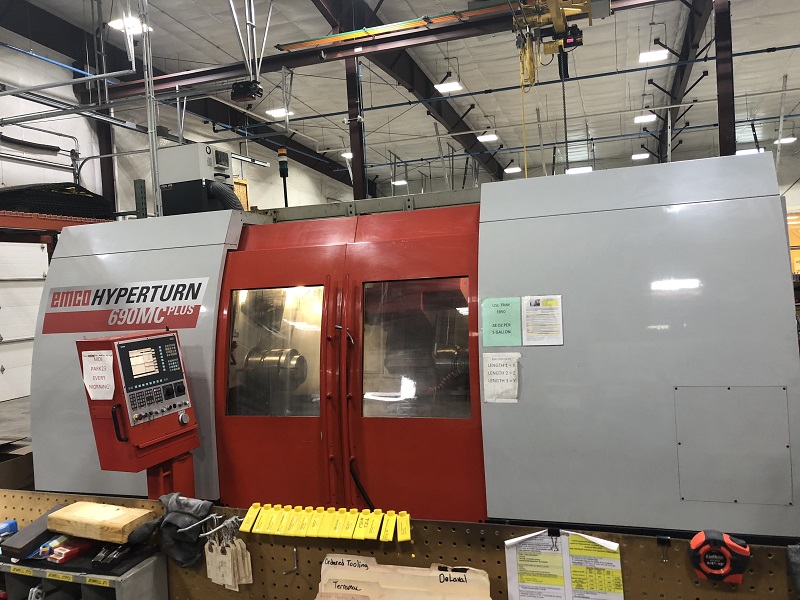

2004 EMCO HYPERTURN 690MC PLUS Y

Siemens 840D, 3.8" Bar, (2) 12" Chucks, 12/12 Tools, 3200 RPM, Y & C-Axis Live Tooling, Twin Spindles, Upper & Lower Turrets
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12" (2)
  • Max Diameter Bar Capacity 3.8"
  • Max Swing Over Bed 27.6"
  • Spindle Speed (L & R) 20 - 3200 RPM
  • Spindle Nose A2-8
  • Tools (Upper / Lower Turret) 12 / 12
  • X-Axis Travel (Upper/Lower Turret) 19.3" / 11"
  • Z-Axis Travel (Upper/Lower Turret) 41.5" / 43.3"
  • Y-Axis Travel 7.87"
  • Distance Between Spindles 42.13"
  • Main Spindle Bore 4.2"
  • Max Turning Diameter 20"

Product Features

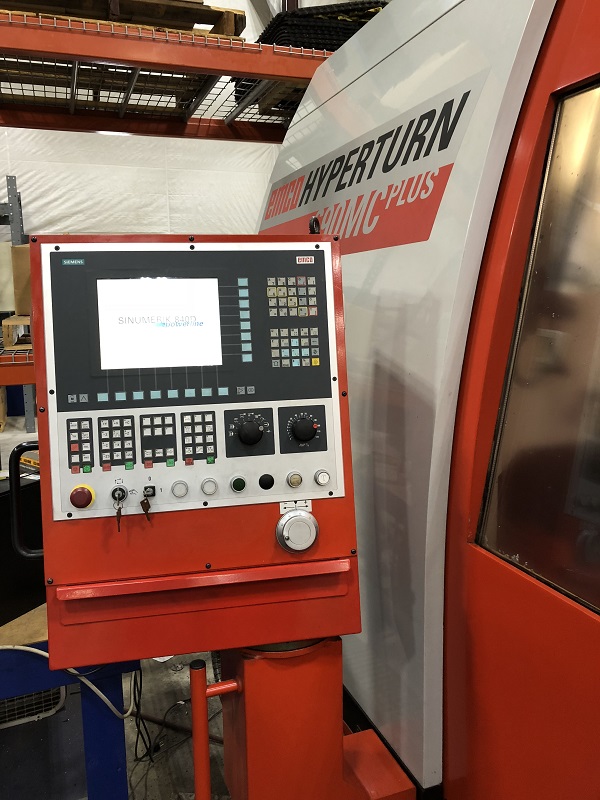

  • Siemens Sinumerik 840D Powerline CNC Control
  • 10.4" Color LCD

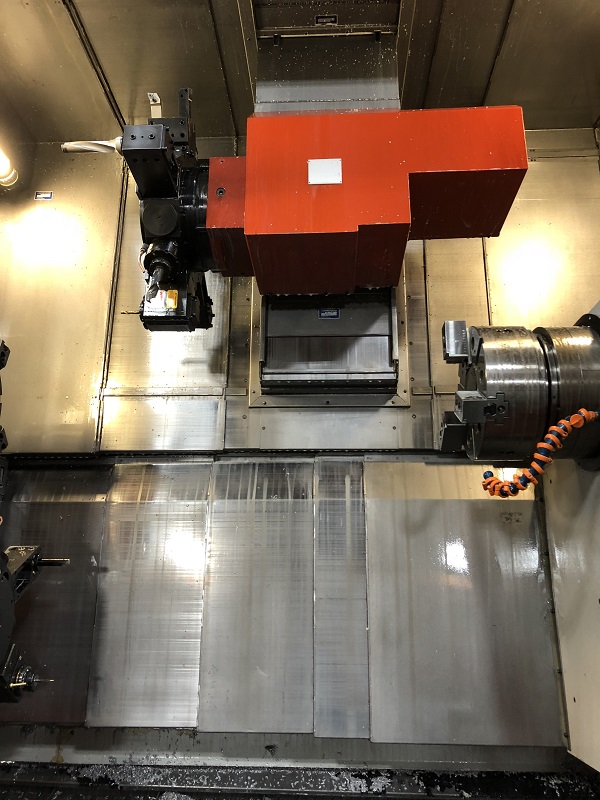

  • Twin Opposed Spindles with Upper & Lower Turrets
  • Y-Axis Milling Capability on Upper Turret
  • C-Axis Milling Capability on Both Spindles

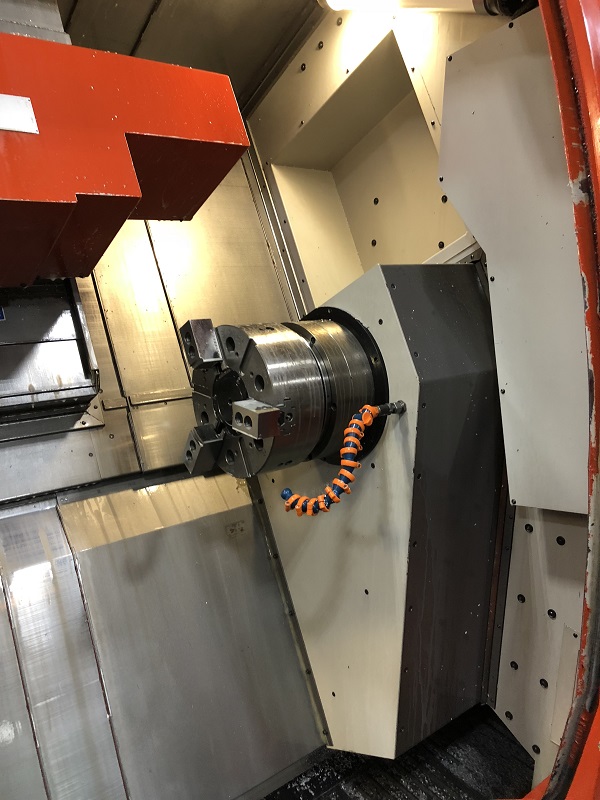

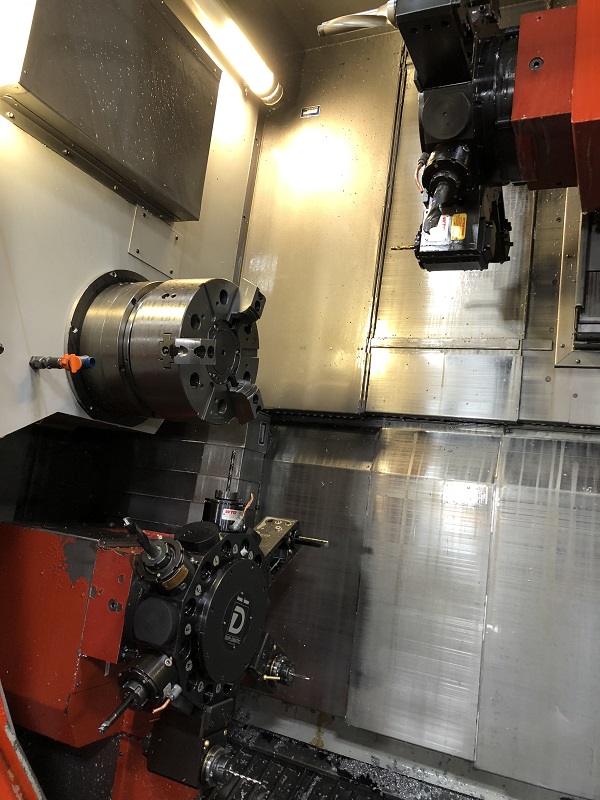

  • (2) 12" Hydraulic Chucks
  • Chip Conveyor (Side Exit)
  • (8) OD Live Holders
  • (5) Face Live Holders
  • (8) Double Face Live Holders
  • (12) Boring Bar Holders
  • (4) Turning Holders
  • (2) Facing Holders
  • 9028 Power On Hours
  • 4783 Operation Hours
  • 1442 Cutting Hours
