2004 DOOSAN / DAEWOO DHP-400

Fanuc 18i-MB, 15.75" Plts, 24.22.22", 14000 RPM, 60 Tools, 30 HP, Cat 40, TSC 230 psi, Chip Conveyor, Dual Chip Augers
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 5.9 Seconds
  • Pallet Load Capacity 880 lbs.

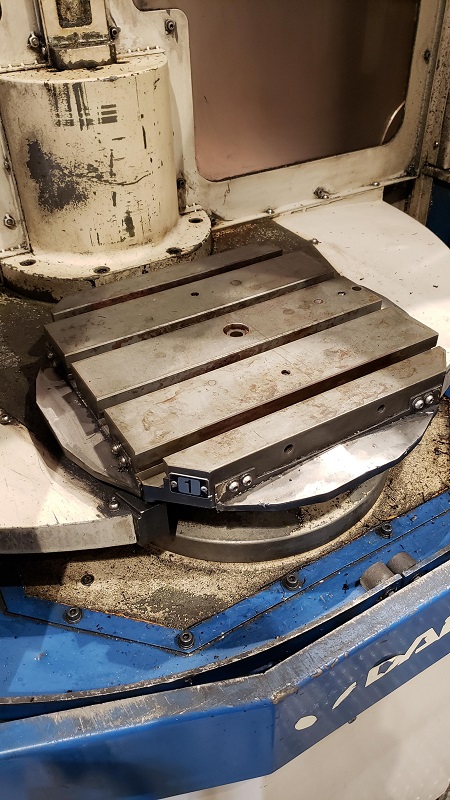

  • Pallet Size 15.75" (2)
  • X-Axis 23.6"
  • Y-Axis 22.0"
  • Z-Axis 22.2"
  • Pallet Index 1 Degree

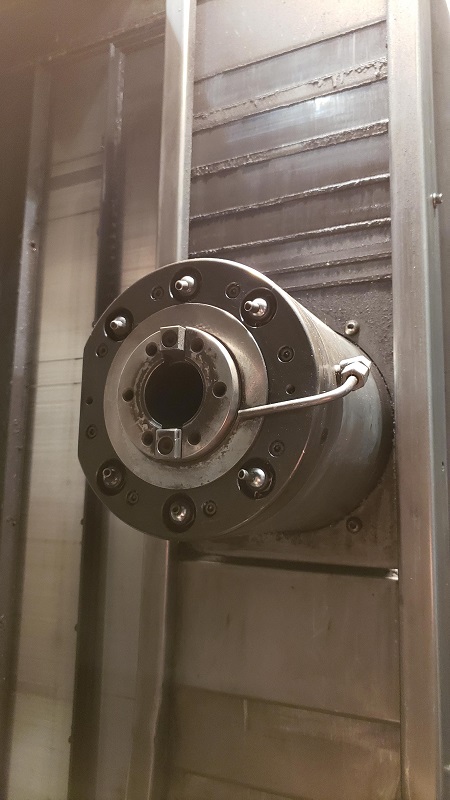

  • Spindle Speed 140 - 14,000
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 30 HP
  • Spindle Center to Table Top 1.97" - 24.0"
  • Spindle Nose to Table Center 5.9" - 29.5"
  • Tools 60
  • Rapid Traverse Rates 2362 IPM
  • Max Tool Diameter 3" / 5.5"
  • Max Tool Length 15.7"
  • Max Tool Weight 22 lbs.
  • Machine Dimensions (L x W x H) 139" x 229" x 113"
  • Machine Weight 27,000

Product Features

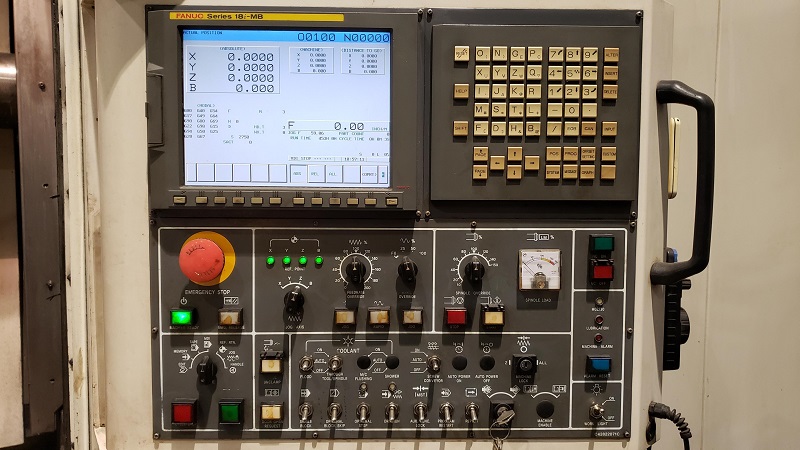

  • FANUC 18iMB CNC CONTROL
  • 10.4" Color LCD
  • 60 Tool Magazine
  • Coolant Thru Spindle (230 psi)
  • Chip Conveyor (Right Rear Exit)
  • Dual Chip Augers
  • Spindle Orientation
  • Rigid Tapping
  • Tool Life Monitoring
  • Manufacture Date May 2004

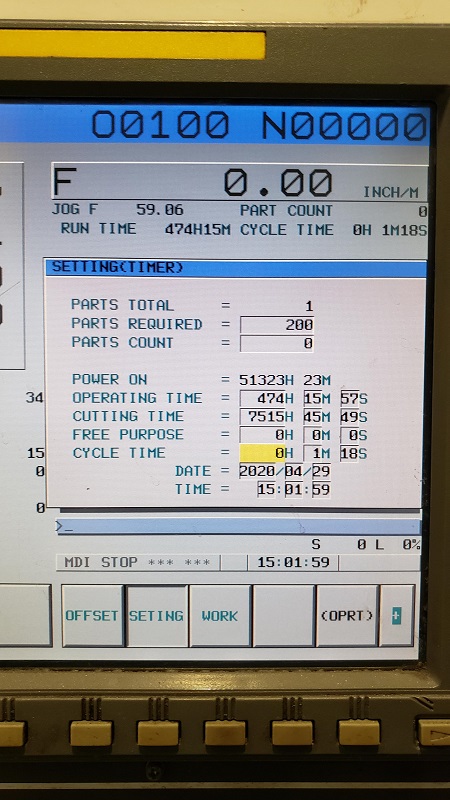

  • 51,323 Power On Time
  • 474 Operating Time
  • 7515 Cutting Time
