Special Item

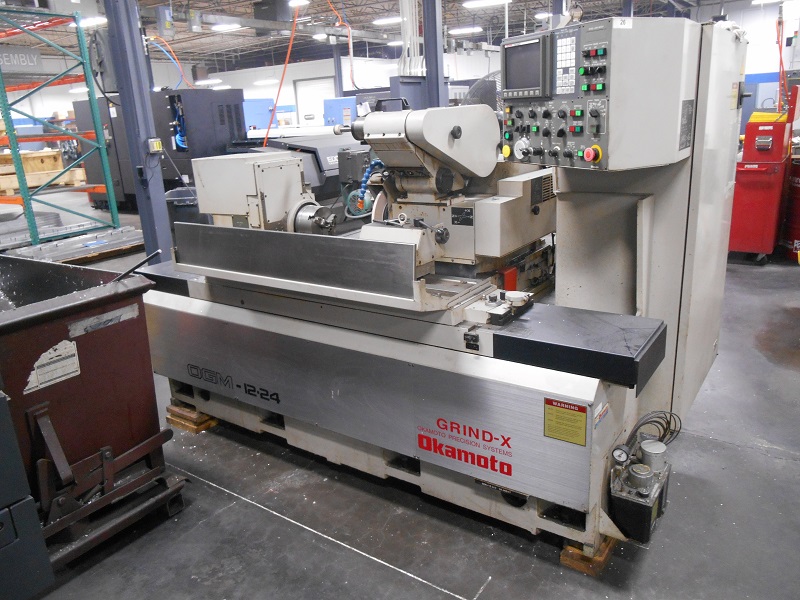

2003 OKAMOTO OGM 12-24U OD/ID GRINDER

Fanuc, 12" x 24" Capacity, 18000 Spindle Speed, 7.3 HP, ID Attachment, Paper Filter Coolant, Manual Dresser
Talk to a representative today!
(803) 548-8000

Product Details

  • Distance Between Centers 23.6"
  • Grinding Wheel Size 14 x 1.5 x 5
  • Grinding Wheel Speed 1767/1996 RPM
  • Grinding Wheel Spindle Motor 7.3 HP
  • Machine Weight 7710 lbs.
  • Swing Over Table 12.6"
  • Table Feed Motor 1.2 HP
  • Table Swivel Angle 3 to - 10 Degrees
  • Tailstock Taper MT #4
  • Wheel Swivel +/- 30 Degrees
  • Wheelhead Feed Motor 1.2 HP
  • Work Head Center Taper MT #4
  • Work Head Spindle Bore 0.7"
  • Work Head Spindle Motor 1 HP
  • Work Head Spindle Speed 10 - 500 RPM
  • Work Head Swivel Angle 30 - 90 Degrees
  • X-Axis Travel 11.8"
  • Z-Axis Travel 29.5"

Product Features

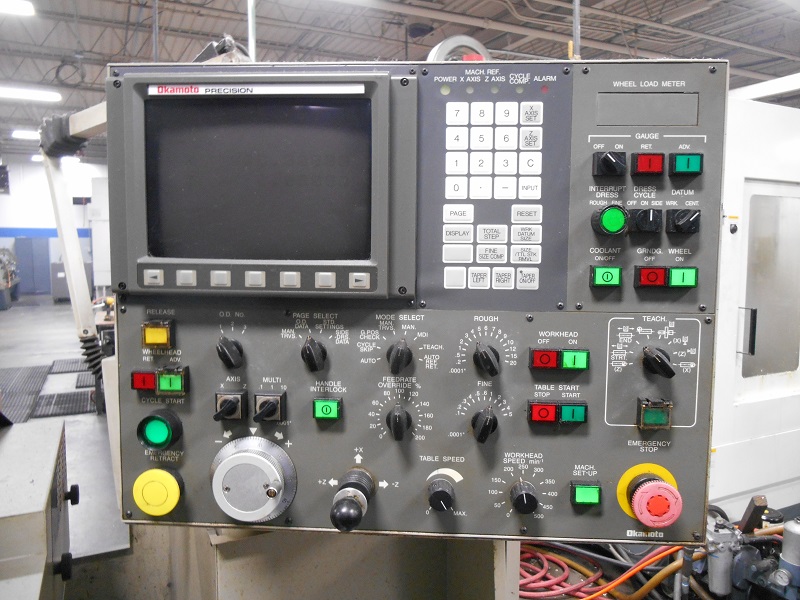

  • Fanuc CNC Control
  • 9" CRT
  • 6" Manual 3-Jaw Chuck

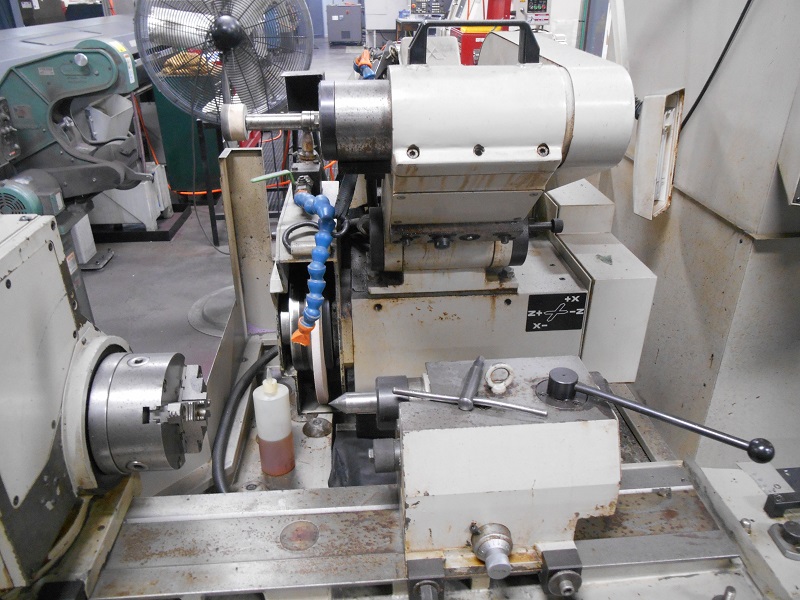

  • ID Grinding Attachment
  • Tailstock
  • 18000 RPM Spindle Speed
  • Paper Filter Coolant System
  • Manual Wheel Dresser
