Special Item

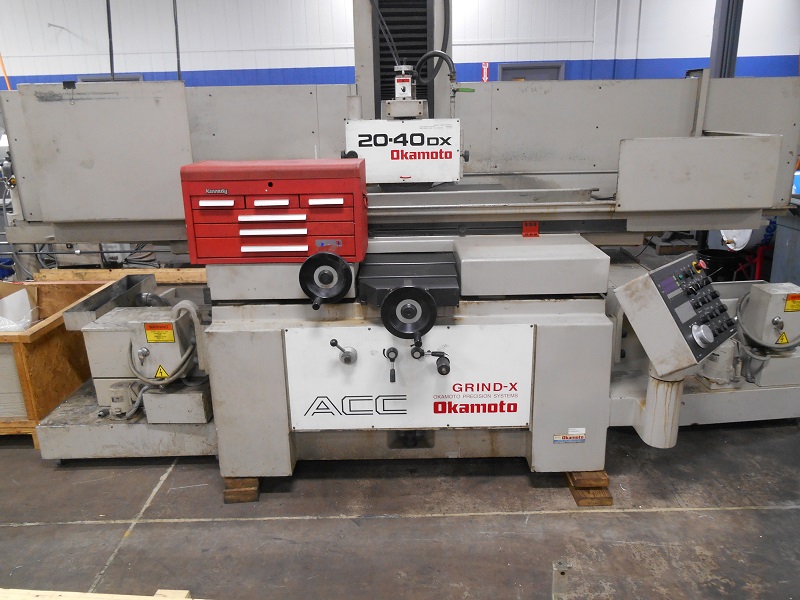

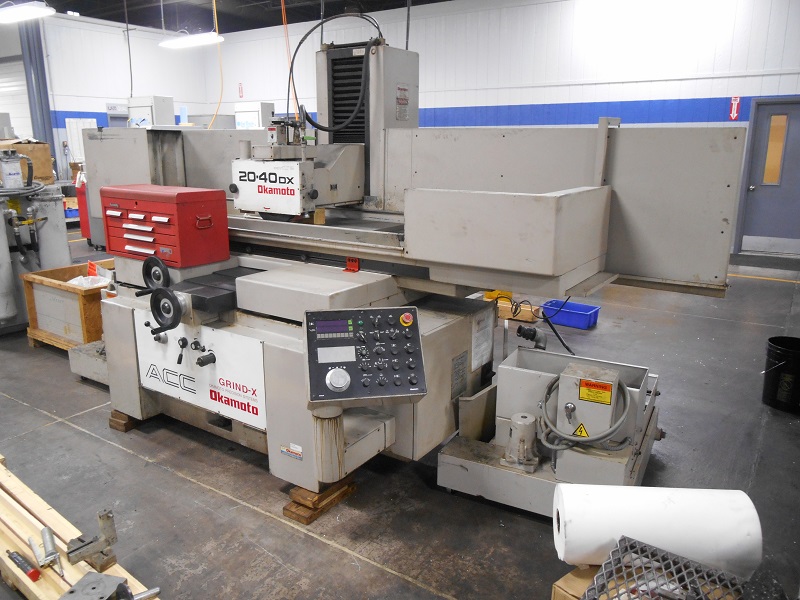

2003 OKAMOTO ACC-20-40 DX SURFACE GRINDER

40" x 20" Capacity, 5 HP, 1500/1800 RPM, Incremental Downfeed, Electro Magnetic Chuck, Hydraulic Dresser, Paper Filter Coolant
Talk to a representative today!
(803) 548-8000

Product Details

  • Grinding Capacity Length 40"
  • Grinding Capacity Width 20"
  • Grinding Wheel Size (Dia x Width x Bore) 12" x 1.5" x 5"
  • Hydraulic Pump Motor 3 HP
  • Machine Weight 10500 lbs.
  • Max Cross Travel 21.25"
  • Max Longitudinal Travel 45.5"
  • Max Workpiece Weight 1543 lbs.
  • OD Wheel Drive Motor 5 HP
  • Saddle Graduation of Handwheel 0.001"
  • Saddle Hand Feed per Revolution 0.25"
  • Saddle Hydraulic Continuous Feed 8-40 in/min
  • Saddle Hydraulic Intermittent Feed 0.02-0.8"
  • Table Hand Feed per Revolution 1.85"
  • Table Hydraulic Feed 10-82 ft/min
  • Table Size 40" x 20"
  • Vertical Clearance 1.9" - 21.5"
  • Vertical Feed Motor 0.5 HP
  • Wheelhead Automatic Feed per Saddle Reversal 0.00005-0.0015"
  • Wheelhead Automatic Feed per Table Stroke 0.00005-0.0015"
  • Wheelhead Rapid Feed 23.6 IPM

Product Features

  • Incremental Downfeed
  • Hydraulic Wheel Dresser

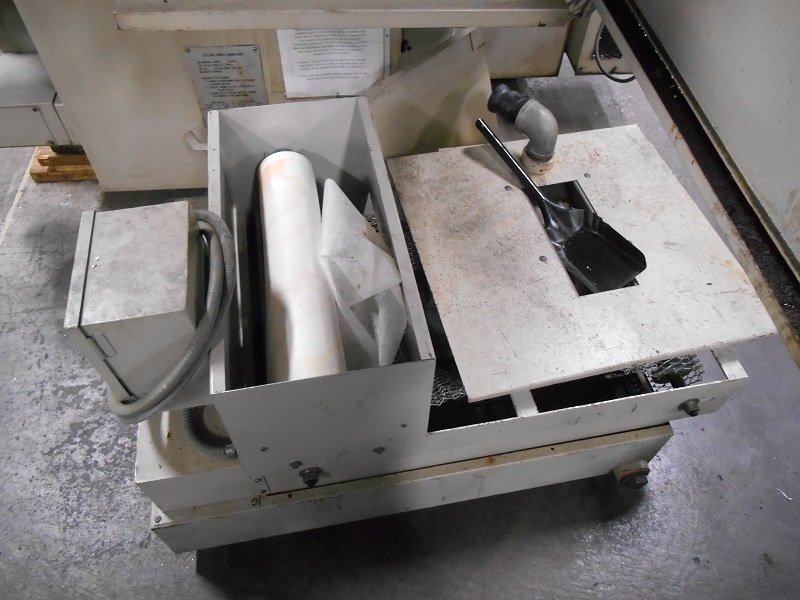

  • Paper Filter Coolant System
  • Electro Magnetic Chuck
  • Automatic Lubrication
