2003 MAZAK QUICK TURN 6G Gantry

EIA, 1.26" Bar, 5" Chuck, 7000 RPM, 7.5HP, 6 Tool Gang Slide, Chucker, Gantry Robot, 10 Pallet Stocker
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 5"
  • Max Diameter Bar Capacity 1.26"
  • Max Swing Over Bed / Carriage 18.5" / 9.5"
  • Max Machining Length 2.36"
  • Spindle Motor 7.5 / 5 HP
  • Spindle Speed 35 - 7000 RPM
  • Spindle Nose 115 mm Flat
  • Spindle Bore 1.73"
  • Tools Gang
  • Rapid Traverse Rates (X & Z) 787 IPM
  • X-Axis Travel 11.8"
  • Z-Axis Travel 9.45"
  • Machine Dimensions (L x W x H) 96" x 70" x 62"
  • Machine Weight 5000 lbs.
  • Max Part Length 0.59" to 2.36"
  • Max Part Weight 1.1 lbs x 2
  • Max Stack Height 10.6"
  • Max Turning Diameter 3.7"
  • Max Workpiece Dia (Max/Min) 0.787" / 3.15"

Product Features

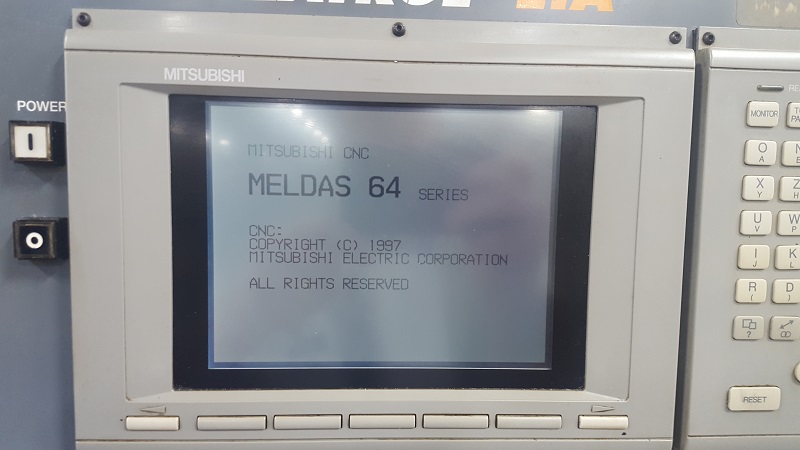

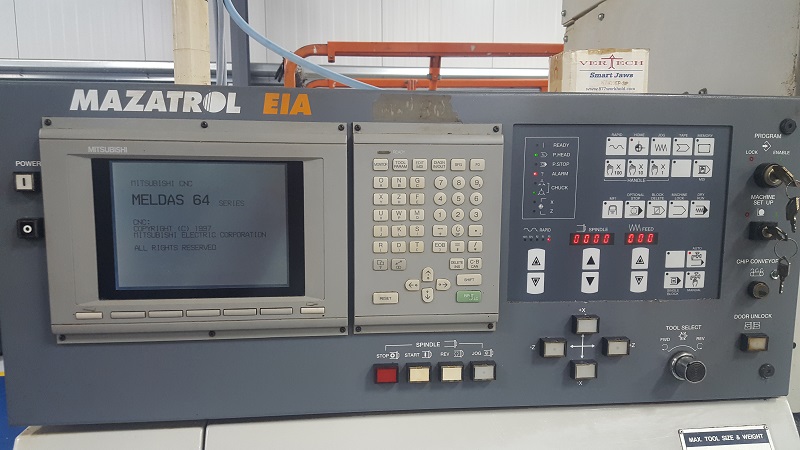

  • MAZATROL EIA DASH CNC Control
  • 9" Monochrome CRT
  • EIA / ISO Input Function (G-Code Programming)

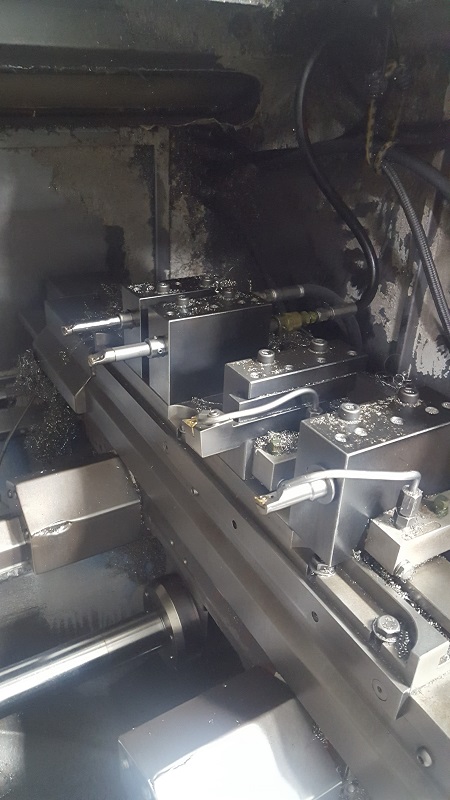

  • Gang Tool Slide

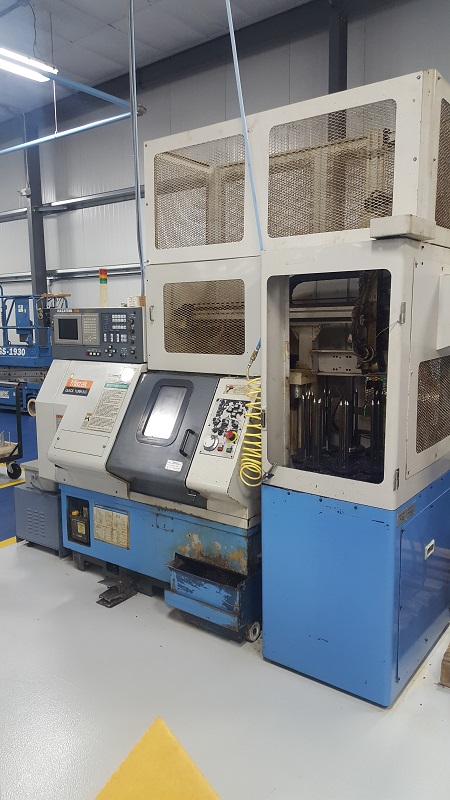

  • FLEX GL-6 Gantry Loader with 10 Pallet Stocker
  • Robot Interface
  • Automatic Top Door Open / Close
  • Automatic Chuck Open / Close Confirmation
  • Chuck Air Blast

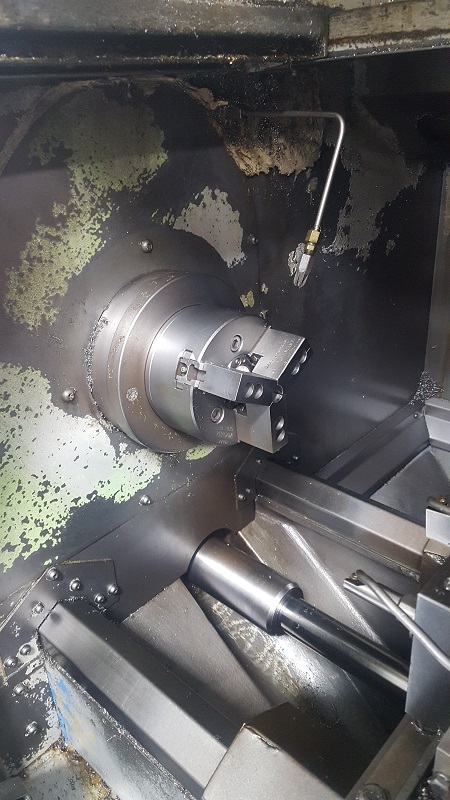

  • 5" Hydraulic Chuck
  • RS232C Interface
  • Background Edit Function
  • Background Tool Path Check
  • Multiple Repetitive Cycle
  • Three Color Tower Light
  • (3) Boring Bar Holders
  • (1) Turning Holder
  • Manufacture Date June 2003
