< Back to Lathes

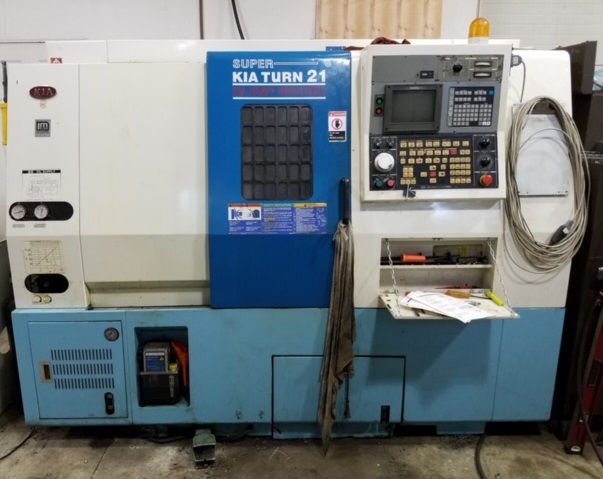

2003 HYUNDAI-KIA SKT-21

Yasnac J50L, 2.56" Bar, 8" Chk, 8.2" Max Dia, 15.4" Length, 12 Tools, 20HP, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.56"
  • Max Swing Over Bed 21.7"
  • Max Machining Length 15.4"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 25 - 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.03"
  • Tools 12
  • Rapid Traverse Rates 1417 IPM
  • X-Axis Travel 8.3"
  • Z-Axis Travel 16.9"
  • Turret Index (Single Step / Full) 0.2 / 0.4 Seconds
  • Machine Dimensions (L x W x H) 94.7" x 65" x 74"
  • Machine Weight 9100 lbs.
  • Distance Between Centers 16.1"
  • Max Turning Diameter 8.2"
  • Tailstock Taper MT#4

Product Features

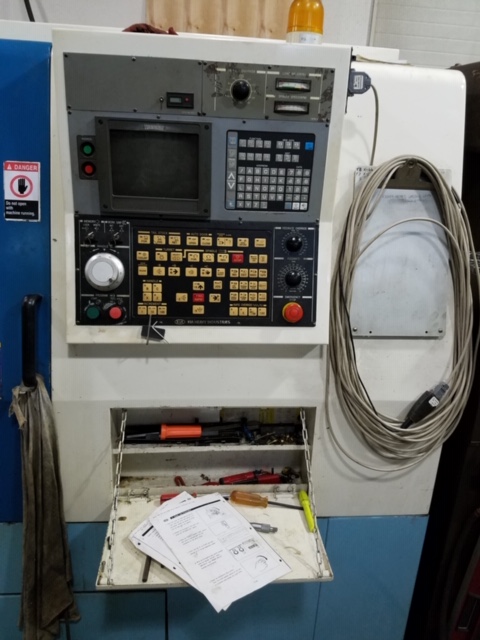

  • YASNAC J50L CNC CONTROL
  • 9" Monochrome CRT
  • 8" Hydraulic Chuck
  • Programmable Tailstock
  • Servo Driven Turret
  • Spindle Air Blast
  • Yellow Operation End Light
