Special Item

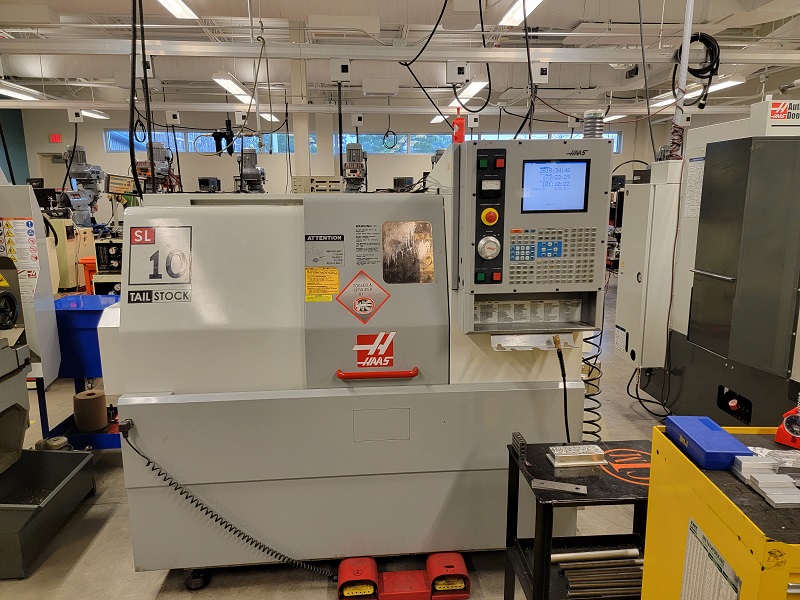

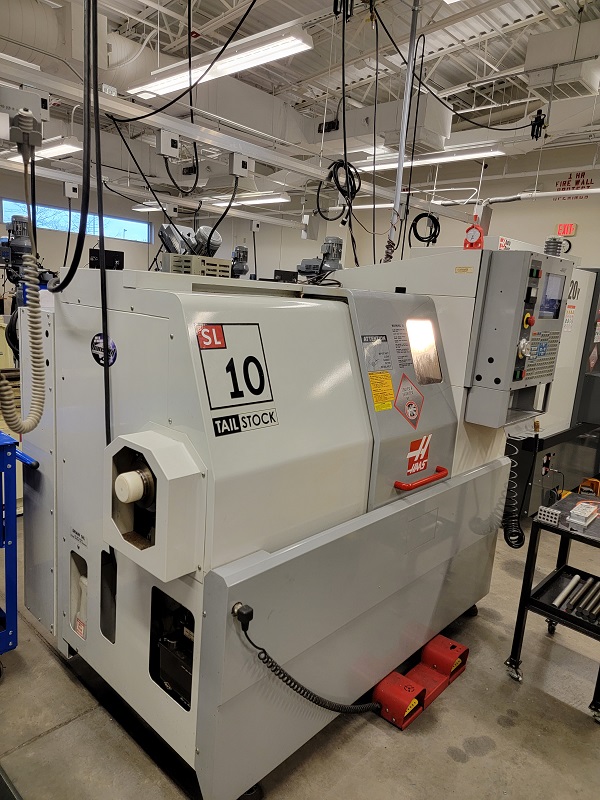

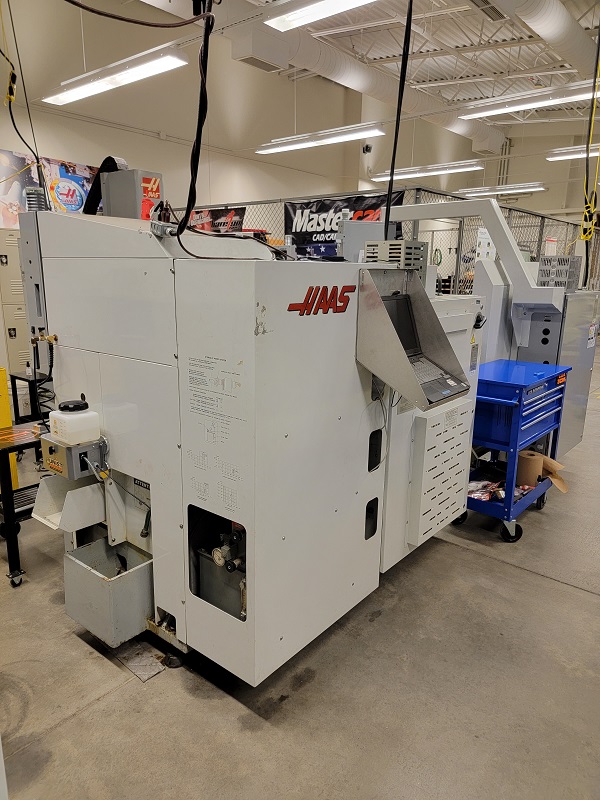

2003 HAAS SL-10T

1.75" Bar, 6" Chuck, 6000 RPM, 10 Tools, 15 HP, Tailstock, Bolt-On Turret, Rigid Tapping, From a Tech School
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6.65"
  • Max Diameter Bar Capacity 1.75"
  • Max Swing Over Bed / Cross Slide 16.25" / 8"
  • Max Machining Length 14"
  • Spindle Motor 15 HP
  • Spindle Speed 100 - 6000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.31"
  • Tools 10
  • Rapid Traverse Rates 1200 IPM
  • X-Axis Travel 6.25"
  • Z-Axis Travel 14"
  • Turret Index (Single Step) 1 Second
  • Machine Dimensions (L x W x H) 92" x 55" x 69"
  • Machine Weight 5500 lbs.
  • Distance Between Centers 16.5"
  • Max Turning Diameter 11"
  • Tailstock Taper MT#3

Product Features

  • HAAS CNC Control
  • 12" Color LCD
  • Floppy Disc Drive

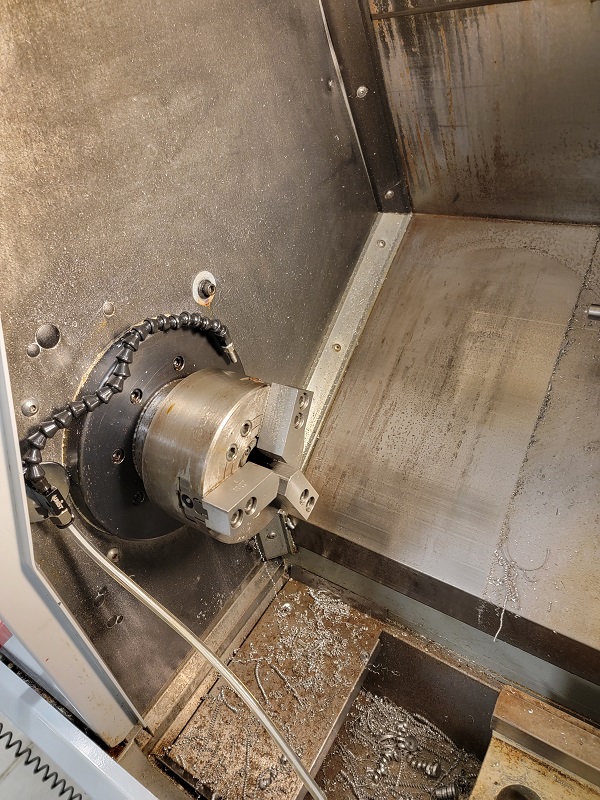

  • 6" Hydraulic Chuck

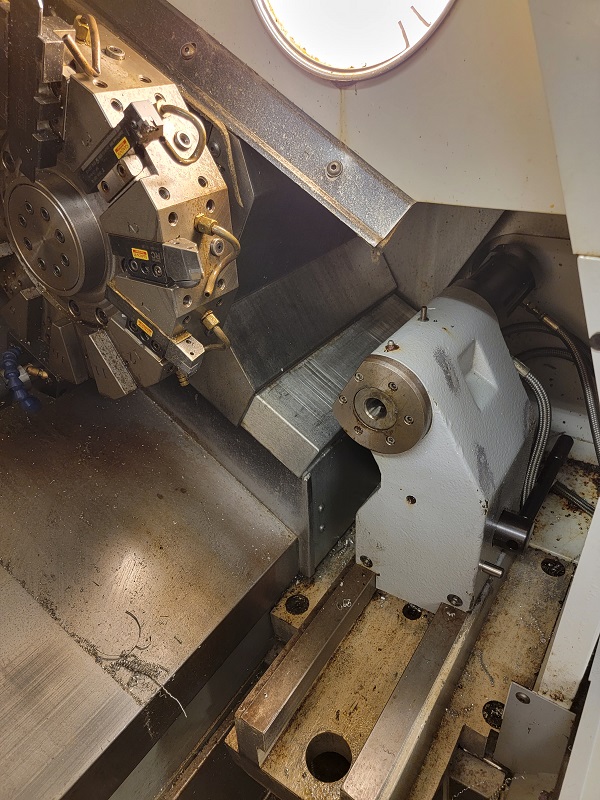

  • Hydraulic Tailstock
  • Bolt-On Turret
  • Green Operating Condition Light
  • (3) Boring Bar Holders
  • (4) OD Wedge Blocks
  • Manufacture Date March 2003

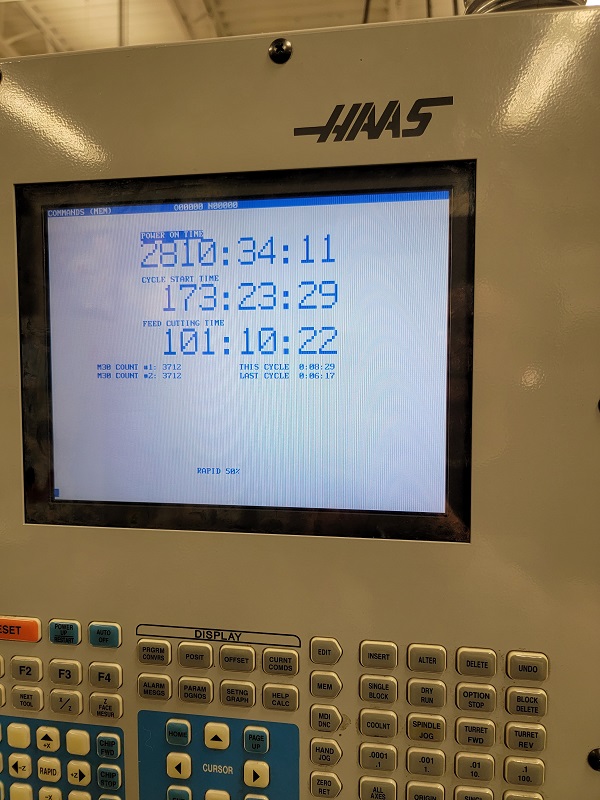

  • 2450 Servo Time
  • 150 In Motion Time
  • 219 Spindle Time
  • Came from a Technical School
