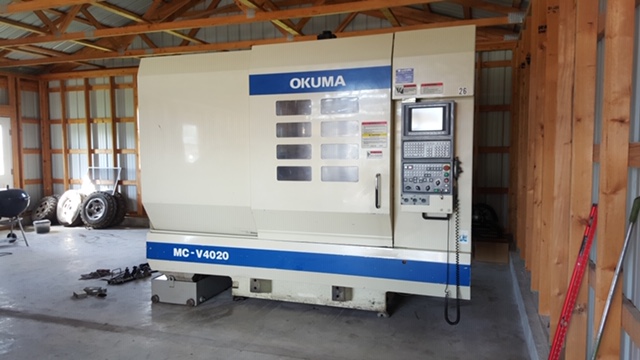

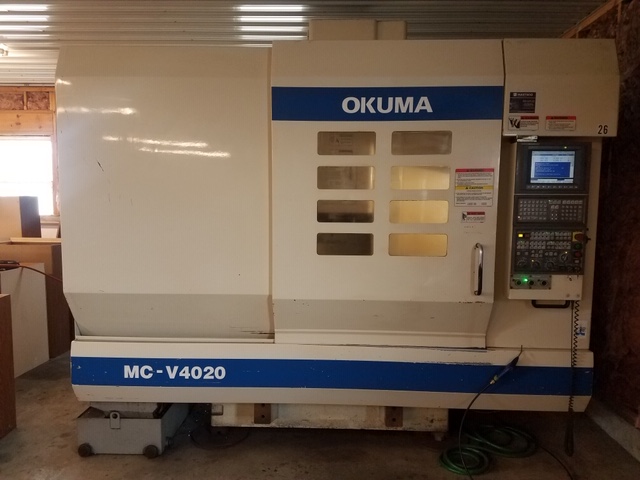

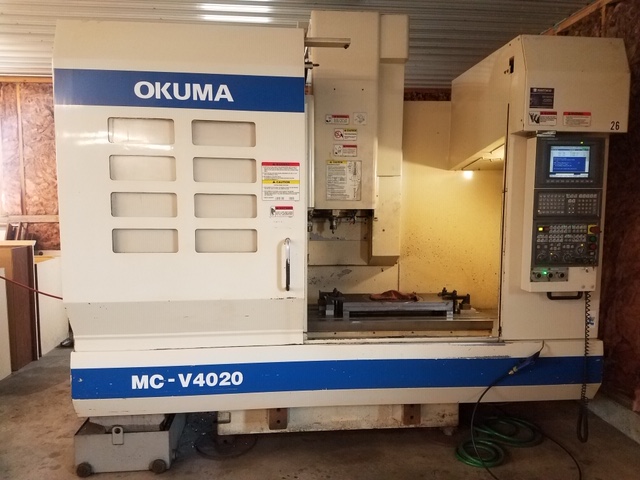

2004 OKUMA MC-V4020

OSP-E100L, 40.20.18", 15000 RPM, Cat 40, 20 HP, 20 Tools, Thru Spindle Coolant (1000 psi), Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40"
  • Y-Axis 20"
  • Z-Axis 17.7"

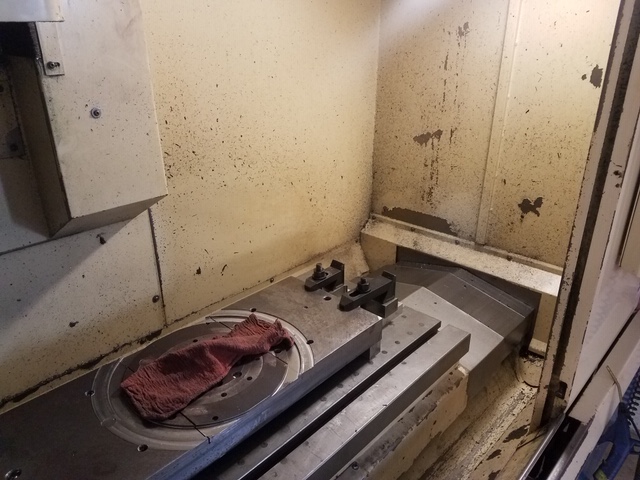

  • Table Size 48" x 20"
  • Spindle Speed 15,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Tools 20
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1417 / 1181 IPM
  • Max Tool Diameter 3.54" / 4.92"
  • Max Tool Length 15.75"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 130" x 107.2" x 104.3"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 6.3" - 24"
  • Tool Change Time (T - T / C - C) 1.5 / 5.0 Seconds

Product Features

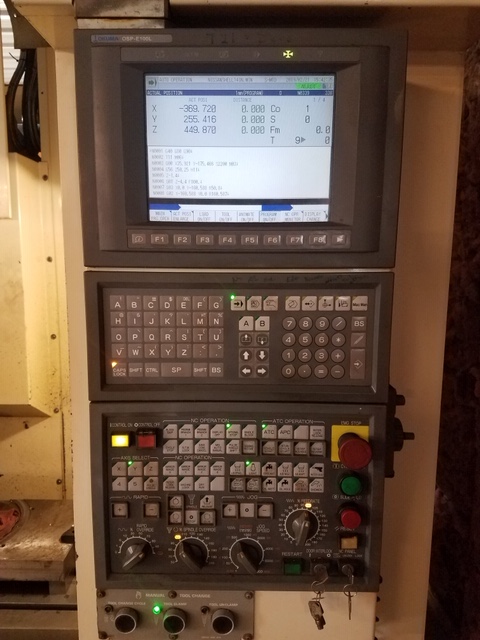

  • OSP -E100L CNC Control
  • 10.4" Color LCD
  • 15000 RPM Spindle Speed
  • Through Spindle Coolant (ChipBlaster 1000 psi)

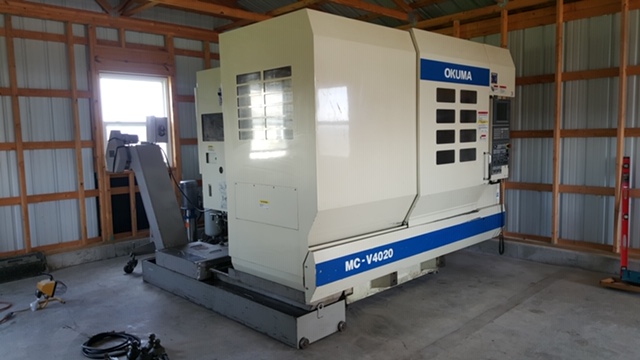

  • Chip Conveyor (Left Rear Exit)
  • Remote Jog Handle
  • Mist Collector

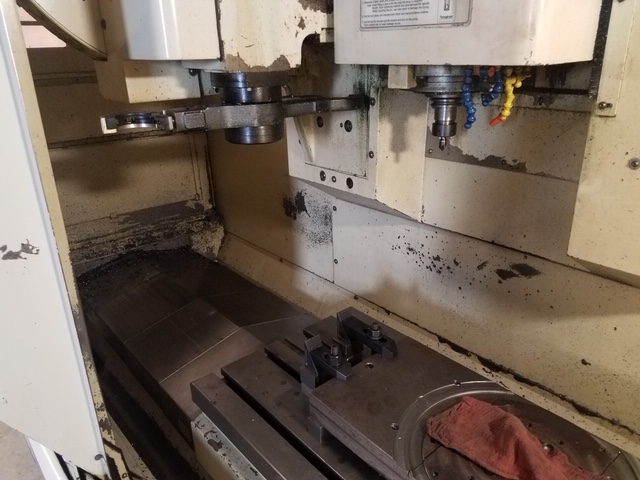

  • 20 Position Side Mount Tool Changer
  • Manufacture Date February 2004

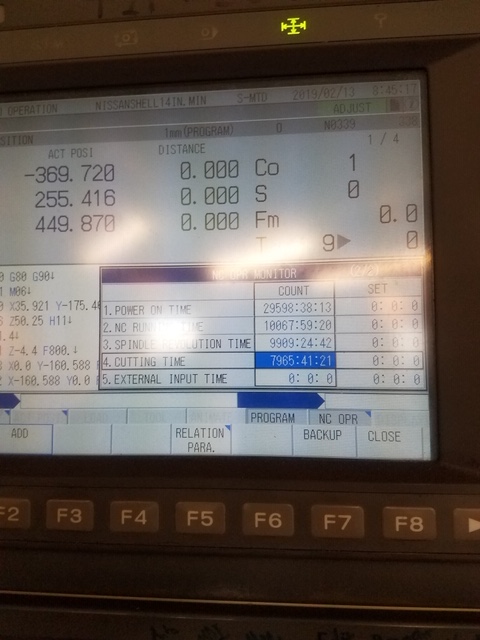

  • 29,598 Power On Time
  • 10,067 NC Running Time
  • 9909 Spindle Revolution Time
  • 7965 Cutting Time
