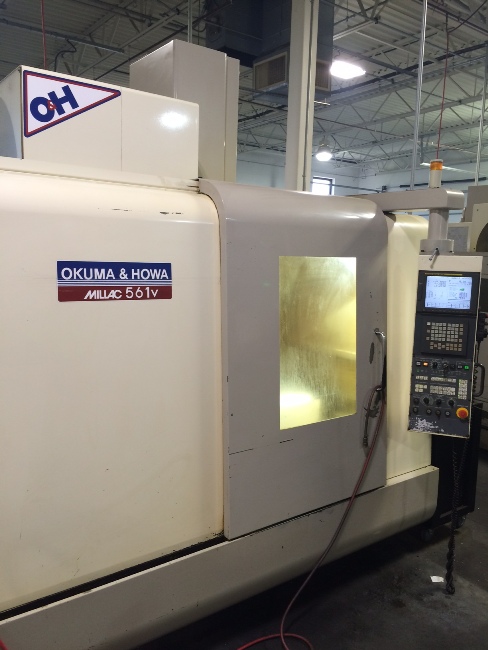

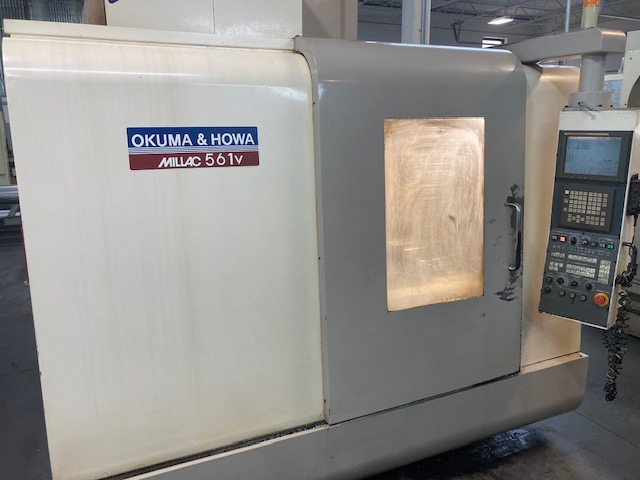

2002 OKUMA & HOWA MILLAC 561V

Fanuc 18iM, 41.22.20", 10000 RPM, Cat 40 Big Plus, 30 HP, 24 Tools, Box Ways
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 41.34"
  • Y-Axis 22.05"
  • Z-Axis 20.47"
  • Table Size 53.15" x 22.05"
  • Spindle Speed 10,000 RPM
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 30 HP AC
  • Tools 24
  • Table Load Capacity 2200 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1260 / 945 IPM
  • Max Tool Diameter 3.54" / 4.53"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 130" x 104" x 107"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 6.69" - 27.17"

Product Features

  • FANUC 18iM CNC Control
  • 10.4" Color LCD
  • 24 Position Side Mount Tool Changer
  • 30 HP Integral Spindle Motor
  • Rigid Tapping
  • Remote Jog Handle
  • Spindle Chiller Unit
  • Dual Chip Augers

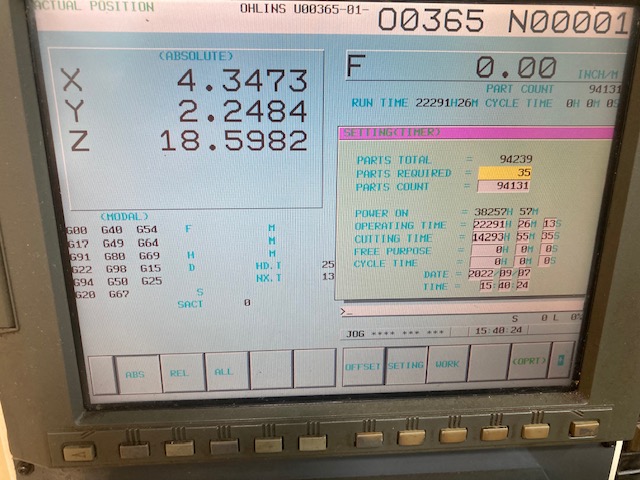

  • 38,257 Power On Time
  • 22,291 Operating Time
  • 14,293 Cutting Time
