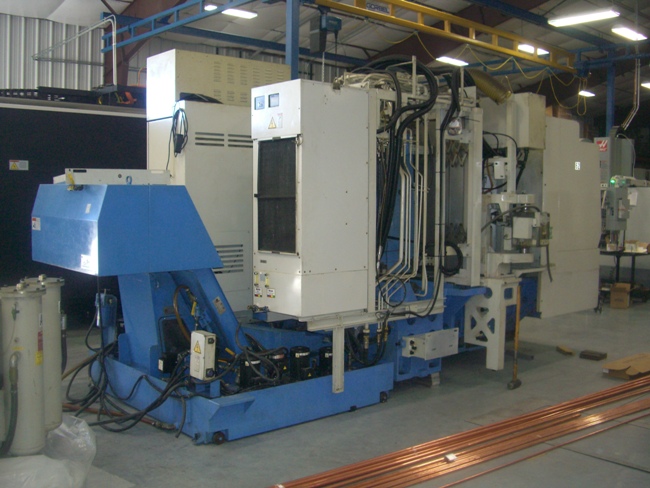

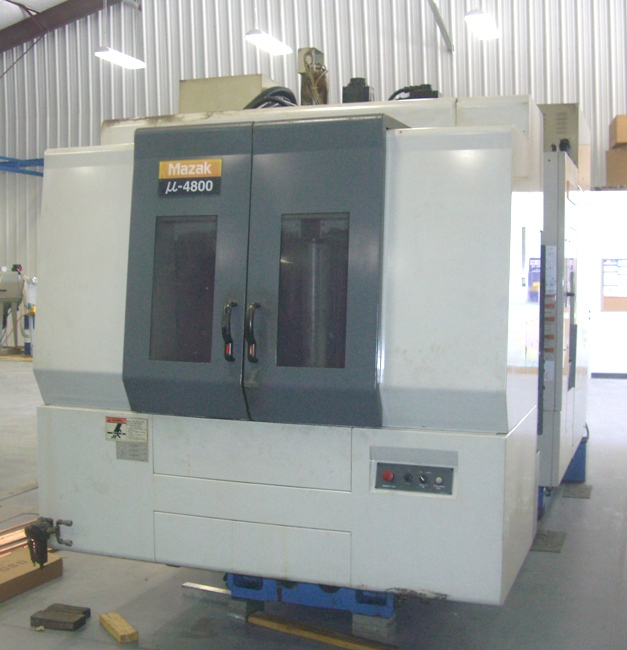

2002 MAZAK µ-4800

Mazatrol Fusion 640M, 15.75" Plts, 22.25.24", Fourth Axis, 12000 RPM, 40HP, 80 Tools, CTS, Chiller Unit, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 5.0 Seconds
  • Pallet Load Capacity 881 lbs.
  • Pallet Size 15.75" (2)
  • X-Axis 22.05"
  • Y-Axis 24.80"
  • Z-Axis 23.62"
  • Pallet Index .001 Degree
  • Spindle Speed 12,000 RPM
  • Spindle Taper HSK-63A
  • Spindle Motor 40 / 30 HP AC
  • Spindle Center to Table Top 3.15" - 27.95"
  • Spindle Nose to Table Center 2.76" - 26.38"
  • Tools 80
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (C - C) 2.5 Seconds
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Length 14.17"
  • Max Tool Weight 26.4 lbs.
  • Machine Dimensions (L x W x H) 211.8" x 95.7" x 110"
  • Machine Weight 24,000

Product Features

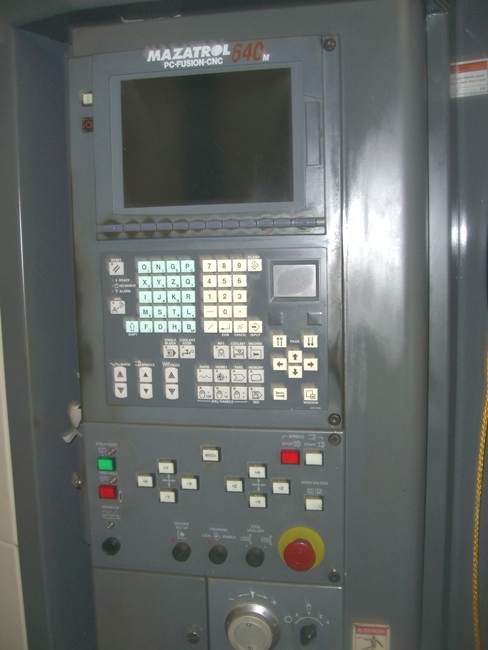

  • MAZATROL FUSION 640M CNC CONTROL
  • 10.4" Color LCD
  • Conversational Programming
  • EIA/ISO Input Function
  • PC/MCIA Interface
  • 3.5" Floppy Disc Drive
  • 1 MB Memory
  • Fourth Axis Rotary Table
  • 80 Tool Magazine

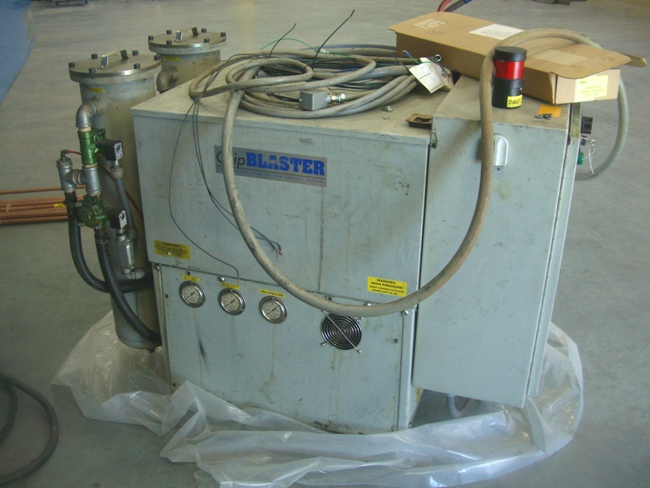

  • Coolant Thru Spindle (ChipBlaster 1000 psi)
  • Auto Tool Length Measurement
  • Tool Life Monitoring System
  • Spindle Chiller Unit
  • Multi-Tap Transformer
  • Mayfran Chip Conveyor (Rear Exit)
  • Renishaw Touch Probe
  • Niagara Flood Coolant
  • Dual Chip Augers
  • 1G Axail Acceleration
  • Temperature Controls for Hydraulic Fluid and Coolant
  • Mfg Date June 2002
