2002 MAZAK µ-4800

Mazatrol Fusion 640M, 15.75" Plts, 22.25.24", Fourth Axis, 12000 RPM, Cat 40, 40 HP, 80 Tools, TSC 1000 psi, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 5.0 Seconds
  • Pallet Load Capacity 881 lbs.
  • Pallet Size 15.75" (2)
  • X-Axis 22.05"
  • Y-Axis 24.80"
  • Z-Axis 23.62"
  • Pallet Index .001 Degree
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 40 / 30 HP AC
  • Spindle Center to Table Top 3.15" - 27.95"
  • Spindle Nose to Table Center 2.76" - 26.38"
  • Tools 80
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (C - C) 2.5 Seconds
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Length 14.17"
  • Max Tool Weight 26.4 lbs.
  • Machine Dimensions (L x W x H) 211.8" x 95.7" x 110"
  • Machine Weight 24,000

Product Features

  • Mazatrol Fusion 640M CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • Conversational Programming
  • EIA/ISO Input Function
  • 3.5" Floppy Disc Drive
  • 1 MB Memory

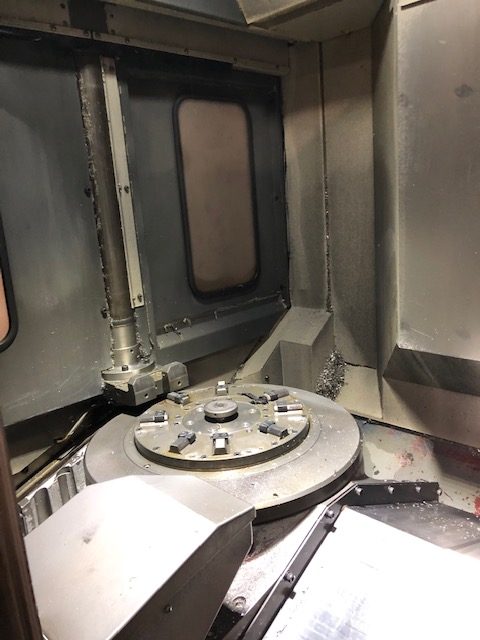

  • Fourth Axis Rotary Table
  • 12000 RPM Spindle Speed
  • 80 Tool Magazine

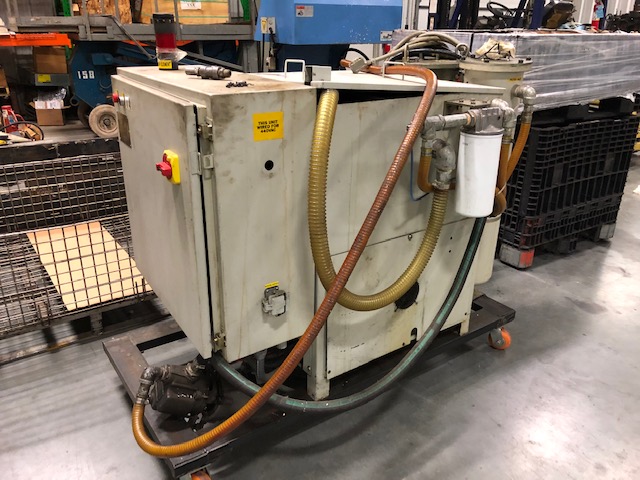

  • Coolant Thru Spindle (ChipBlaster 1000 psi)
  • Auto Tool Length Measurement
  • Tool Life Monitoring System
  • Spindle Chiller Unit
  • Multi-Tap Transformer

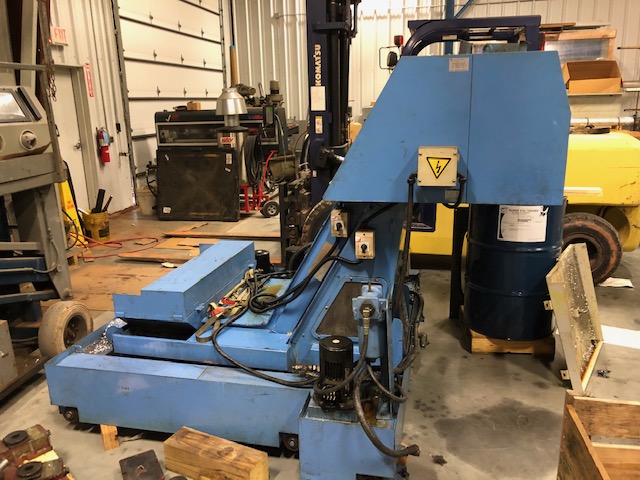

  • Mayfran Consep 2000 Microfine Chip Conveyor (Rear Exit)
  • Renishaw Touch Probe
  • Niagara Flood Coolant
  • Dual Chip Augers
  • (2) Additional Pallets
  • 1G Axial Acceleration
  • Column, Spindle and Ballscrew Cooling System Prevents Thermal Displacement
  • Temperature Controls for Hydraulic Fluid and Coolant
  • Rigid Tapping
  • Helical Interpolation
  • Spiral Interpolation
  • EIA 3D Compensation
  • Rotation & Geometric Scaling
  • Shape Compensation
  • Inverse Time Feed
  • Comparison Stop
  • Inch/Metric Conversion
  • G00 Slope Constant
  • Scale Feedback
  • 600 Sets of Common Variables
  • Navigation
  • EIA Helical Tap Cycle
  • Mazatrol Helical Interpolation
  • Mazatrol Coordinate Shift
  • Mazatrol Planetary Tapping
  • Ethernet Running
  • Mfg Date June 2002
  • 6045 Power On Time
  • 6572 Auto Operation Time
  • 7690 Auto Cutting Time
  • 4038 Total Cutting Time
  • 6820 Total Time
