Special Item

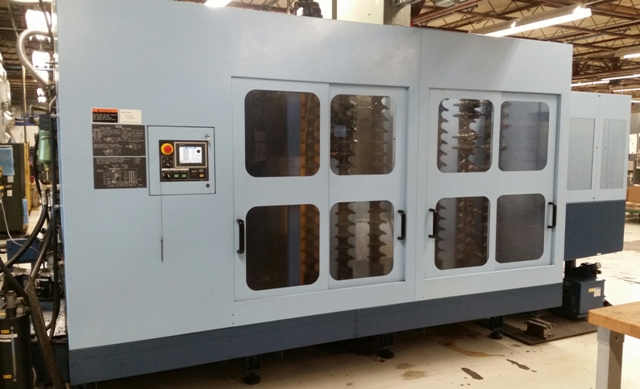

2002 MATSUURA H.PLUS-300 PC11

Seimens G-Tech 840Di, 11.8" Plt (11), 20.22.20", Fourth Axis, 240 Tools, 20000 RPM, BT-40 Big Plus, 20 HP, 11 Pallet Changer, Chip Conveyor, ATLM
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 550 lbs.
  • Pallet Size 11.8" (11)
  • X-Axis 19.68"
  • Y-Axis 22.04"
  • Z-Axis 19.68"
  • Pallet Index .001 Degree
  • Spindle Speed 20,000
  • Spindle Taper BT 40 Big Plus
  • Spindle Motor 20 HP
  • Spindle Nose to Table Center 2.75" - 22.44"
  • Tools 240
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (T - T / C - C) 1.2 / 2.6 Seconds
  • Max Tool Diameter 3.54" / 5.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 17 lbs.

Product Features

  • G-TECH 840Di (Seimens) CNC CONTROL
  • 12" Color LCD
  • PC / MCIA Interface
  • 1 GB Memory
  • (9) Additional M-Functions
  • Weekly Timer
  • Coordinate System Rotation
  • Automatic Tool Length Measurement/Broken Tool Detection
  • Tool Life Management
  • (99) Sets of Additional Work Coordinates

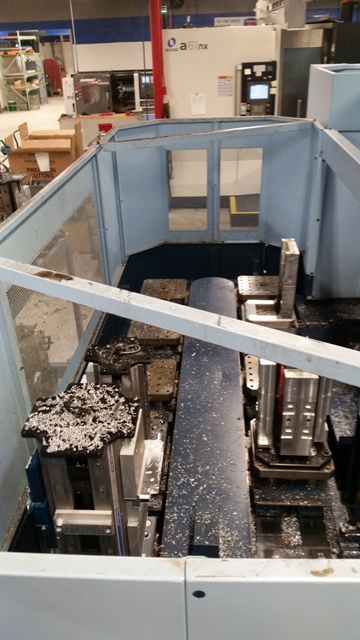

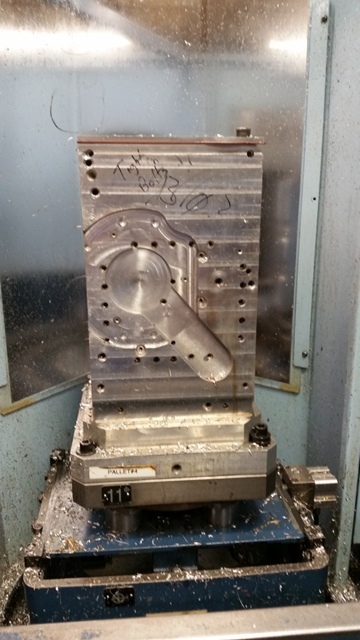

  • Automatic (11) Pallet Changer with Load/Unload Station

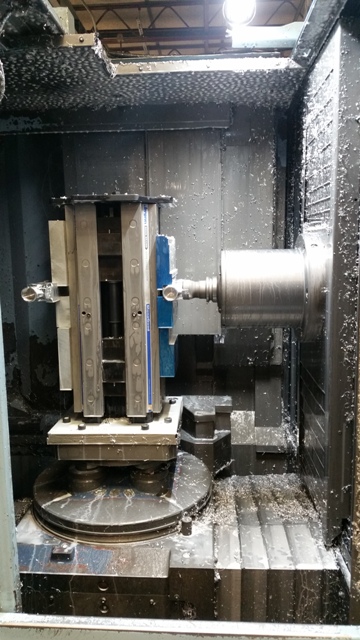

  • Fourth Axis Rotary Table
  • 240 Tool Magazine
  • Coolant Thru Spindle Interface
  • IZ1/120Y High Speed Contouring Option
  • Rigid Tapping
  • Helical Interpolation

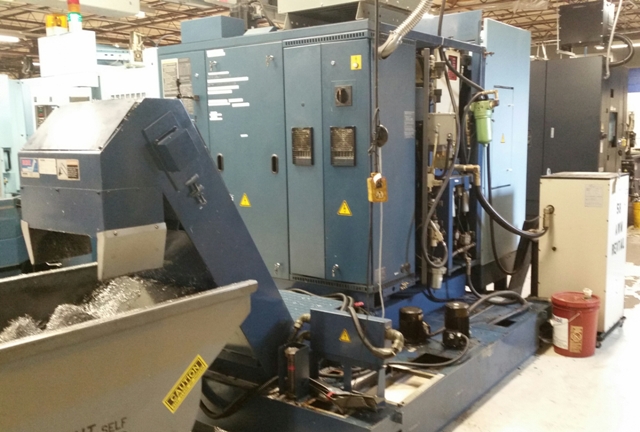

  • Chip Conveyor(Right Rear Exit)
  • Big Plus Dual Contact Spindle
  • Yellow Condition Light
  • Dual Chip Augers
  • Spindle Chiller Unit
  • Visiport Window
  • Manufacture Date December 2001
  • Installed in 2002
