< Back to Vertical M/C
Special Item

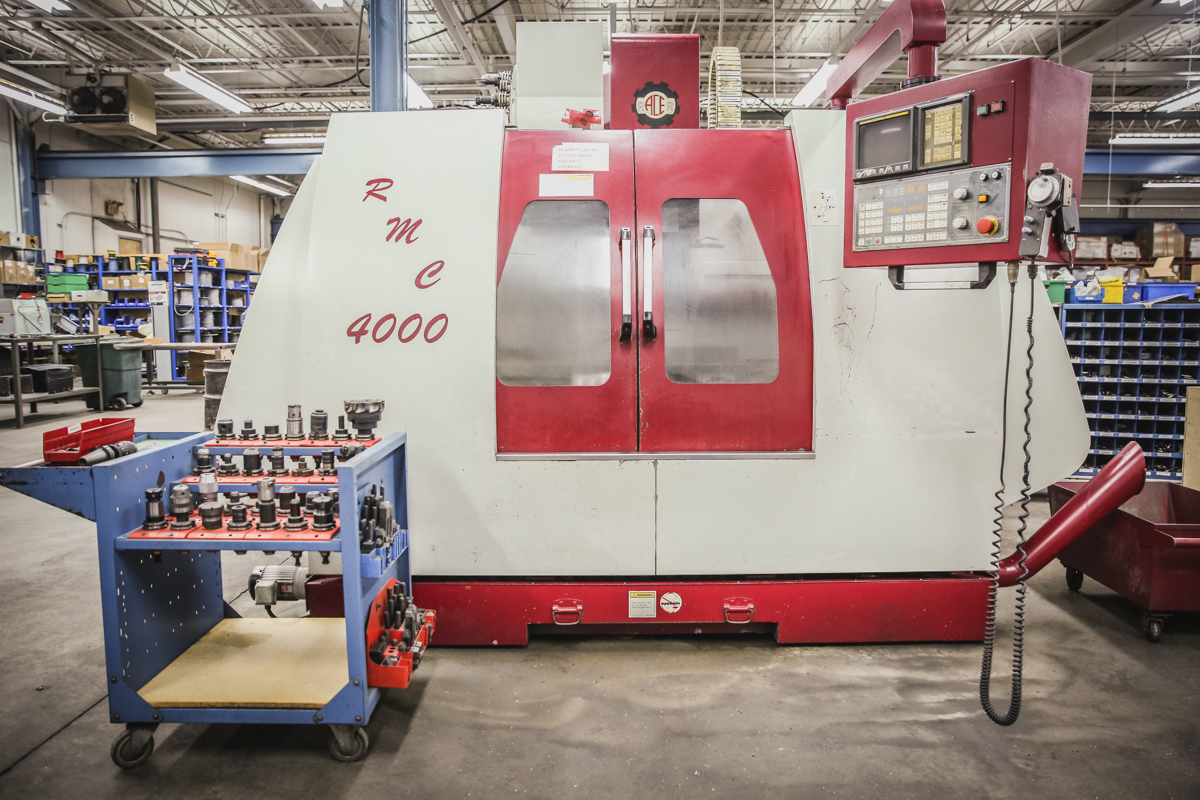

2001 RACER RMC-4000

FANUC O-MD, 40.24.24", 8000 RPM, 24 Tools, 17.6 HP, Cat 40, TSC, SMTC
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40.1"
  • Y-Axis 24"
  • Z-Axis 24"
  • Table Size 48" x 24"
  • Spindle Speed 0 - 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 17.6 HP
  • Tools 24
  • Table Load Capacity 1870 lbs.
  • Max Feed Rate 236 IPM
  • Max Tool Diameter 2.95"
  • Max Tool Length 9.84"
  • Max Tool Weight 15.4 lbs.
  • Machine Dimensions (L x W x H) 126" x 87" x 116"
  • Machine Weight 13,000 lbs.
  • Spindle Nose to Table Top 5.3" - 29.3"

Product Features

  • FANUC O-MD CNC CONTROL
  • 10.4" Color CRT
  • Rigid Tapping
  • Thru Spindle Cooling System
  • Spindle Oil Cooler
  • Spindle Air Blast
  • Full Splash Safety Guard
  • Auto Lubrication System
  • Remote Type Manual Pulse Generator
  • Heat Exchanger
  • RS-232C Interface
  • Chip Auger
  • Transformer
