2001 MORI SEIKI ZL-250SMC

Fanuc 18iTA, 2.9" Bar, 10" Chuck, 3500 RPM, 10 + 8 Tools, 30 HP, Live Tooling, Sub Spindle, APC, Barfeed, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.9"
  • Max Swing Over Bed / Carriage / Cover 26.8" / 20.1" / 17.5"
  • Max Machining Length 16.10"
  • Spindle Motor 30 / 20 HP
  • Spindle Speed 35 - 3500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.4"
  • Tools 10 Upper / 8 Lower
  • Sub Spindle Chuck Size 6"
  • Sub Spindle Motor 10 HP
  • Sub Spindle Speed 4000 RPM
  • Rapid Traverse Rates (X / Z) 708 / 945 IPM
  • X-Axis Travel (Upper / Lower) 9.4" / 6.8"
  • Z-Axis Travel (Upper / Lower Turret) 20.5" / 19.7"
  • Turret Index (Single Step) 0.3 Seconds
  • Machine Weight 14,000 lbs.
  • Max Turning Diameter (Upper / Lower) 15.3" / 11.5"
  • Spindle Torque 371.7 ft. lbs.

Product Features

  • Fanuc 18i-TA CNC Control
  • 10.4" Color LCD

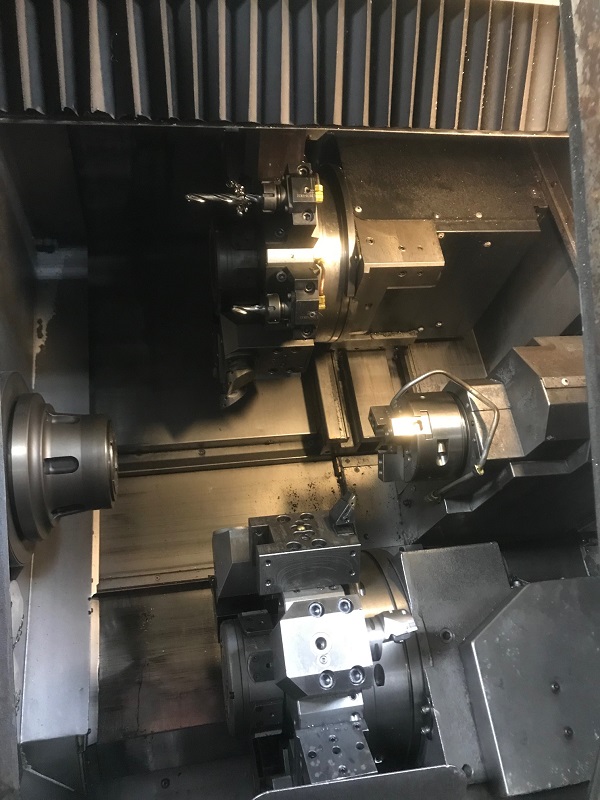

  • Upper & Lower Turrets with Main & Sub Spindles
  • C-Axis Milling Capability on Both Turrets
  • Royal Quick-Grip 80 Collet Chuck for Main Spindle
  • 6" Kitagawa Hydraulic Chuck for Sub Spindle
  • LNS Quick Load Servo S2 Short Magazine Barfeed
  • Overhead Auto Parts Catcher
  • Parts Exit Conveyor
  • Turbo Chip Conveyor (Side Exit)
  • Manufacture Date March 2001
  • 50,663 Power On Time
  • 13,915 Cutting Time
