Special Item

2001 MORI SEIKI SL-204SMC GANTRY

Mitsubishi, 2.5" Bar, 8" Chuck, 15 HP, 4500 RPM, 12 Tools, Live Tooling, Sub Spindle, Gantry Robot, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.5"
  • Max Swing Over Bed / Carriage / Front Cover 26.8" / 20.1" / 18"
  • Turning Diameter (Max / Std) 15.3" / 8.2"
  • Max Machining Length 12.7"
  • Spindle Motor 15 / 10 HP
  • Spindle Speed 40 - 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.9"

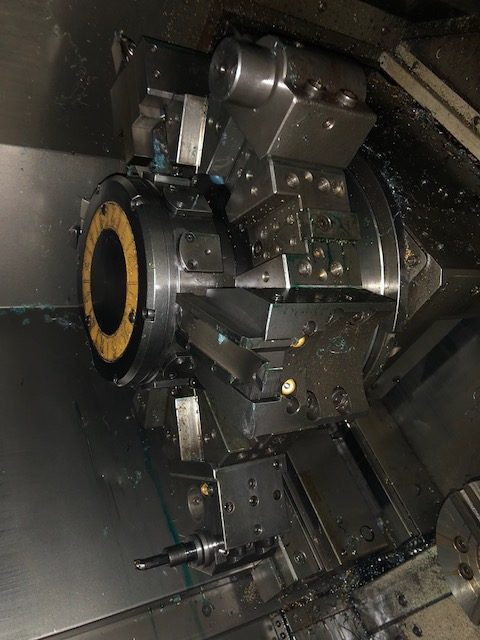

  • Tools 12
  • Sub Spindle Chuck Size 6"
  • Sub Spindle Motor 10 / 7.5 HP
  • Sub Spindle Speed 60 - 6000 RPM
  • Rapid Traverse Rates (X / Z) 708 / 945 IPM
  • X-Axis Travel 9.3"
  • Z-Axis Travel 20.5"
  • C-Axis Index (L & R) .001 Degree
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 91.3" x 73.7" x 72.5"
  • Machine Weight 11,000 lbs.
  • Distance Between Centers 29.6"

Product Features

  • MORIC MSG-805 CNC Control
  • 10.4" Color LCD
  • MORI SEIKI GANTRY ROBOT with 14 Station Work Stocker
  • C-Axis Milling Capability on Main & Sub Spindle
  • Programmable Sub Spindle
  • 8" SMW Autoblok Hydraulic Chuck on Main Spindle

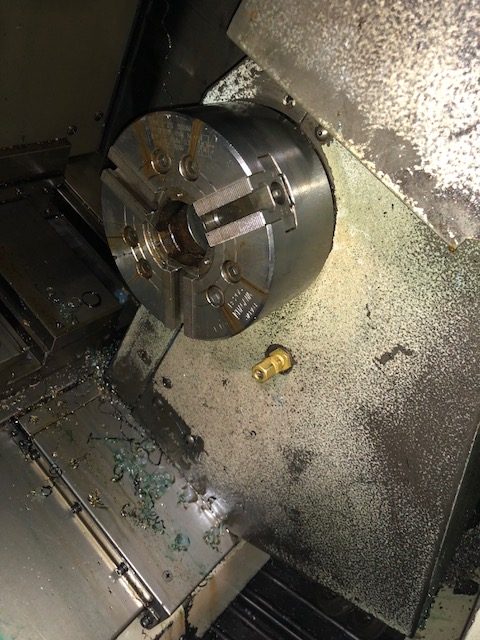

  • 6" Kitagawa B206 Hydraulic Chuck on Sub Spindle
  • Turbo Chip Conveyor (Side Exit)
  • Mfg Date September 2001
  • (3) OD Live Holders
  • (2) Face Live Holders
  • (3) Boring Bar Holders
  • (1) Double Boring Bar Holder
  • (2) Tandem Turning Holders
  • (1) Cut Off Holder
  • Three Color Tower Light
  • Slant Bed Box Way Construction
