2001 MORI SEIKI MT-2000SZ

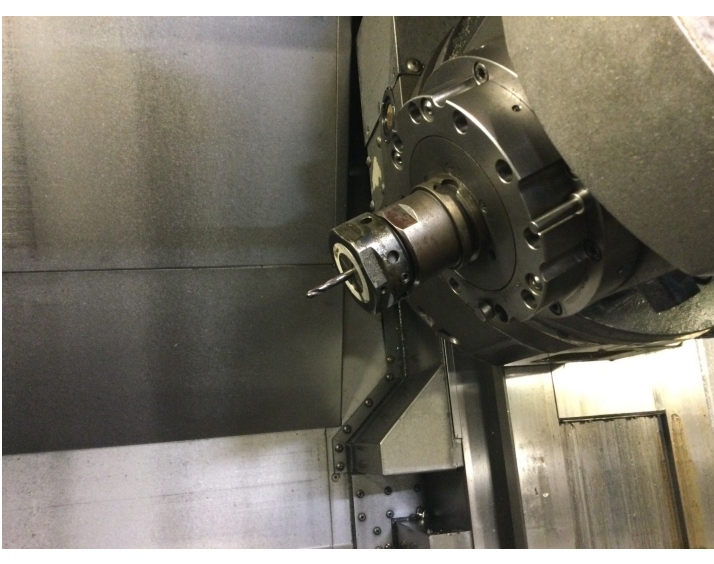

Fanuc 18iTA, 2.5" Bar, 8" & 6" Chucks, 120 Tools, 30 HP, Upper Tool Spindle, Y-Axis, Lower Turret, Sub Spindle, Chip Conveyor, Barfeed
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.5"
  • Max Swing Over Bed/Carriage 33.4" / 23.6"
  • Max Machining Length 40.11"
  • Spindle Motor 30 / 20 HP
  • Spindle Speed 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.99"
  • Tools 120
  • Milling Motor 25 / 20 / 15 HP
  • Milling Speed 8000 RPM
  • Sub Spindle Bar Capacity 1.7"
  • Sub Spindle Chuck 6"
  • Sub Spindle Motor 20 / 15 HP
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates (X & Z / Y) 945 / 630 ipm
  • X-Axis Travel / Lower Turret 22.2" / 6.1"
  • Z-Axis Travel / Lower Turret 42.4" / 36.7"
  • C-Axis Index .001 Degrees
  • B-Axis Index .0001 Degrees
  • B-Axis Rotation +/- 120 Degrees
  • Machine Weight 28,000 lbs.
  • Distance Between Spindles 50.4"
  • Lower Turret Milling Motor 10 HP
  • Lower Turret Milling Speed 4000 RPM
  • Lower Turret Tools 12
  • Max Tool Diameter 3.54" / 4.92"
  • Max Tool Length 11"
  • Max Tool Weight 15.4 lbs.
  • Max Turn Diameter / Lower Turret 21.6" / 11"

Product Features

  • MORIC MSG-501TA (FANUC 18iTA) CNC CONTROL
  • 10.4" Color LCD
  • C, Y & B-Axis Milling Capability
  • MAPPS Conversational Programming
  • 8" Hydraulic Chuck on Main Spindle
  • 6" Hydraulic Chuck for Sub Spindle
  • Programmable Sub Spindle

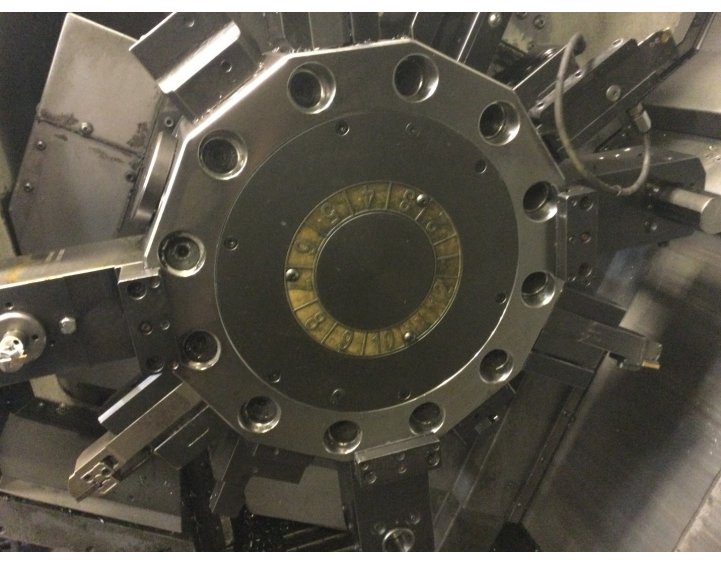

  • (12) Position Lower Turret with Milling Capability
  • Manual Tool Presetters for Main and Sub Spindle
  • 120 Tool Magazine (KM 63 Style)
  • Turbo Chip Conveyor (Hinge Type Side Exit)

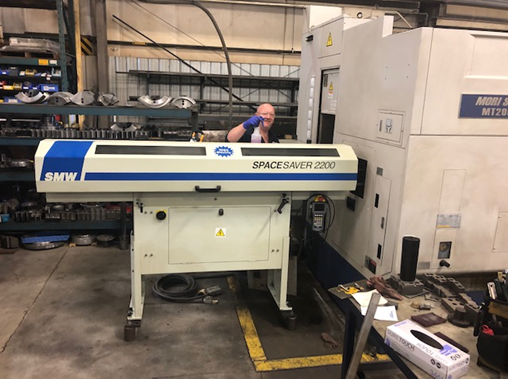

  • SMW SpaceSaver 2200 Short Magazine Barfeed
  • High Pressure Through Spindle Coolant (1000 psi)
  • Approximately (120) KM63 Tool Holders
  • Manufacture Date December 2001

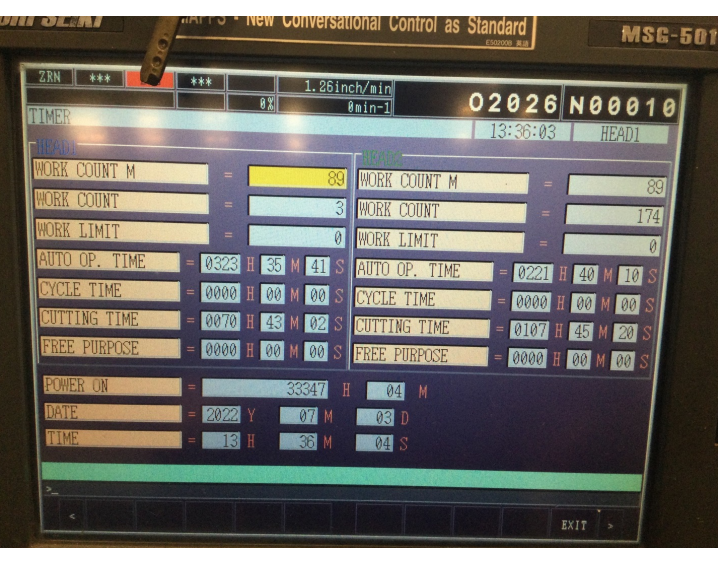

  • 33,347 Power On Time
