Special Item

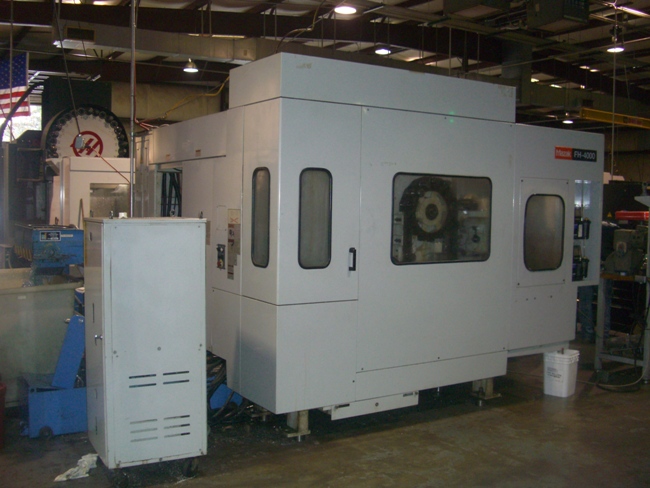

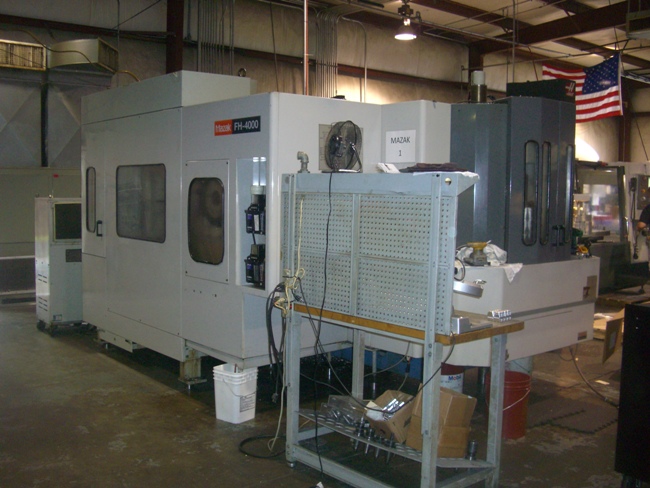

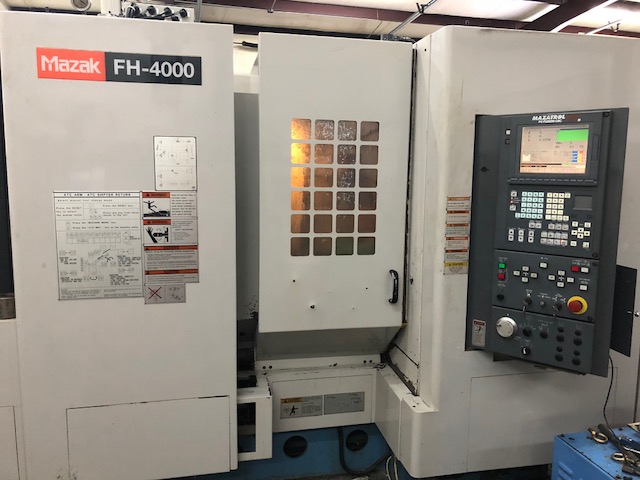

2001 MAZAK FH-4000

Fusion 640, 15.7" Plt, 22.20.25", 80 Tools, 12000 RPM, 1 Degree, 30 HP, Cat 40, TSC, ATLM, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 6.3 Seconds
  • Pallet Load Capacity 661 lbs.
  • Pallet Size 15.74"
  • X-Axis 22.04"
  • Y-Axis 20.07"
  • Z-Axis 24.83
  • Pallet Index 1 Degree
  • Spindle Speed 12,000 RPM
  • Spindle Taper Cat 40
  • Spindle Motor 30 / 25 HP AC
  • Spindle Center to Table Top 3.93" - 24.01"
  • Spindle Nose to Table Center 4.72" - 29.52"
  • Tools 80
  • Rapid Traverse Rates 1417 IPM
  • Tool Change Time (T - T / C - C) 0.8 / 3.5 Seconds
  • Max Tool Diameter 3.54" / 4.52"
  • Max Tool Length 12.59"
  • Max Tool Weight 17.6 lbs.
  • Max Workpiece Size (Dia / Height) 22.05" / 24.8"
  • Machine Dimensions (L x W x H) 159" x 105" x 97.01"
  • Machine Weight 18,000
  • Spindle Torque 122 ft. lbs.

Product Features

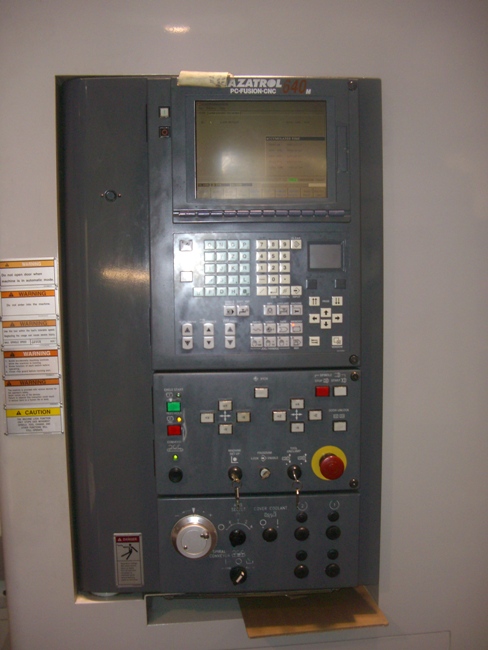

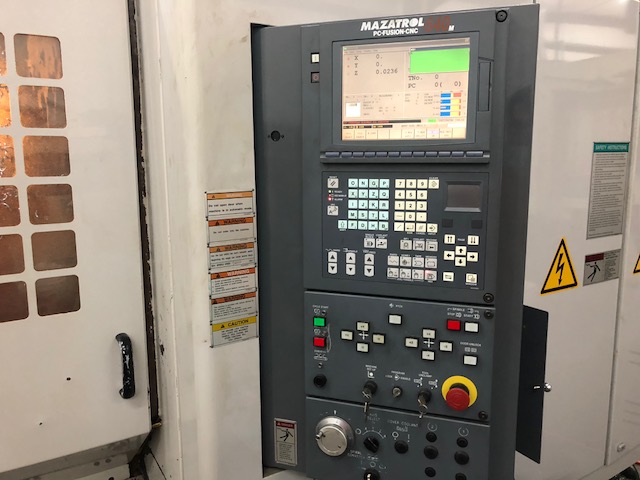

  • MAZATROL FUSION 640M CNC CONTROL
  • 10.4" Color LCD
  • Conversational Programming
  • EIA/ISO Input Function
  • 3.5" Floppy Disc Drive
  • 1 MB Memory
  • Rigid Tapping
  • Coolant Thru Spindle (115 psi)
  • 80 Tool Magazine
  • Niagara Flood Coolant
  • Auto Tool Length Measurement
  • Tool Life Management
  • Tool Breakage Detection & Recovery
  • Spindle Chiller Unit
  • Mayfran Chip Conveyor (Rear Exit)
  • Dual Chip Augers
  • Multi-Tap Transformer
  • Spiral Interpolation
  • EIA 3D Compensation
  • Rotation & Geometric Scaling
  • Shape Compensation
  • Inverse Time Feed
  • Comparison Stop
  • G00 Slope Constant
  • 600 Sets of Variables
  • Navigation
  • EIA Helical Tap
  • Mazatrol Helical Interpolation
  • Mazatrol Coordinate Shift
  • Mazatrol Planetary Tapping
  • Manufacture Date December 2001
  • 1803 Power on Time
  • 6938 Auto Operation Time
  • 1271 Auto Cut Time
  • 7451 Total Cut Time
  • 1803 Total Time
