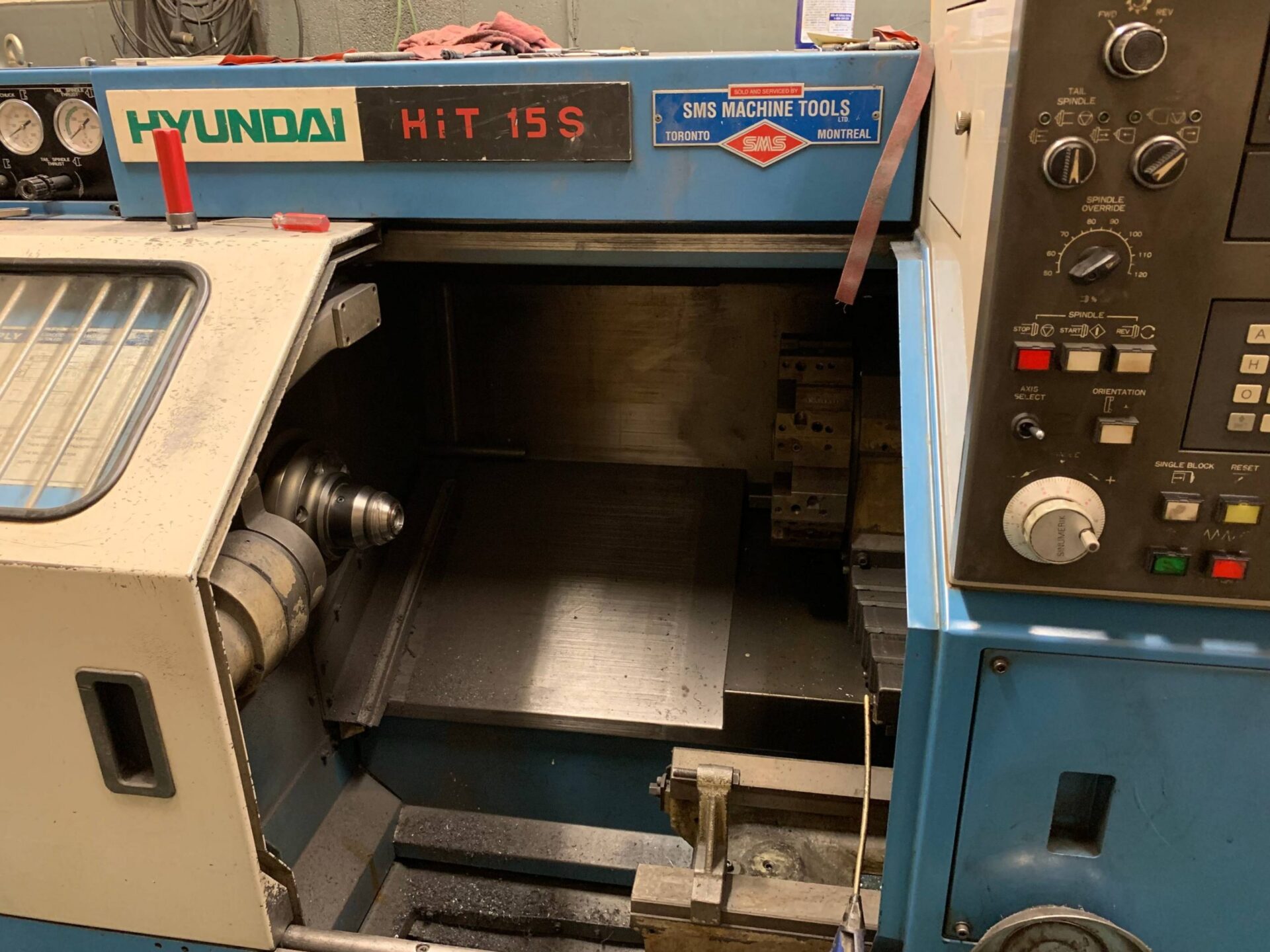

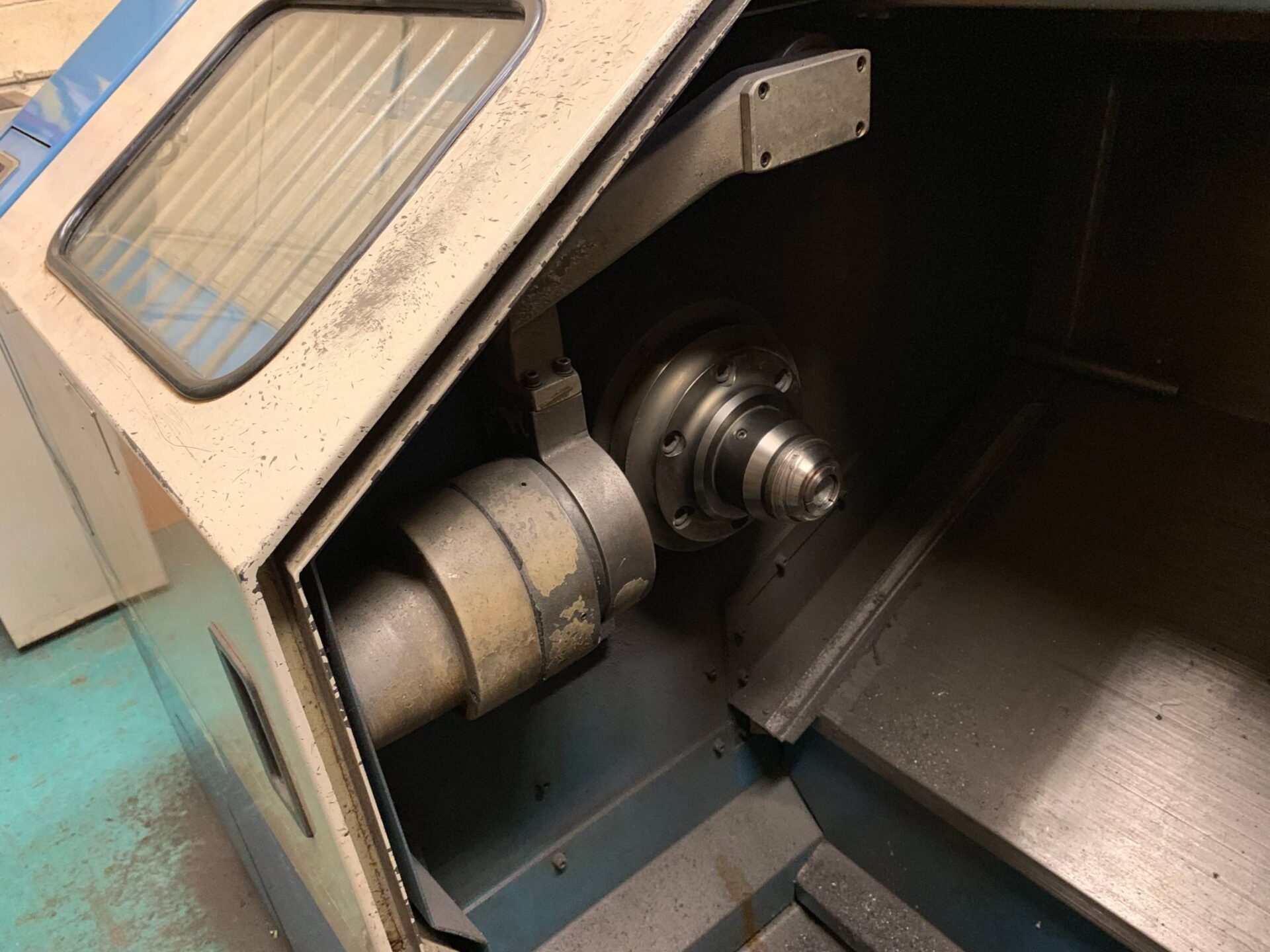

2001 HYUNDAI HIT-15S

Siemens Hitrol 840C, 2" Bar, 8" Chuck, 10" Max Dia, 18" Length, 20HP, 4500 RPM, 8 Tools, TE, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed 17.32"
  • Max Machining Length 18"
  • Spindle Motor 20 / 15 HP AC
  • Spindle Speed 45 - 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.44"
  • Tools 8
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 7.10"
  • Z-Axis Travel 20.10"
  • Machine Dimensions (L x W x H) 101.1" x 64.2" x 72"
  • Machine Weight 9261 lbs.
  • Distance Between Centers 25"
  • Max Turning Diameter 10"
  • Tailstock Taper MT#4

Product Features

  • SIEMENS HITROL 840C CNC CONTROL
  • 9" Color CRT
  • Conversational Programming
  • Collet Chuck
  • Programmable Tool Eye
  • Programmable Tailstock Body & Quill
  • Turbo Chip Conveyor (Side Exit)
