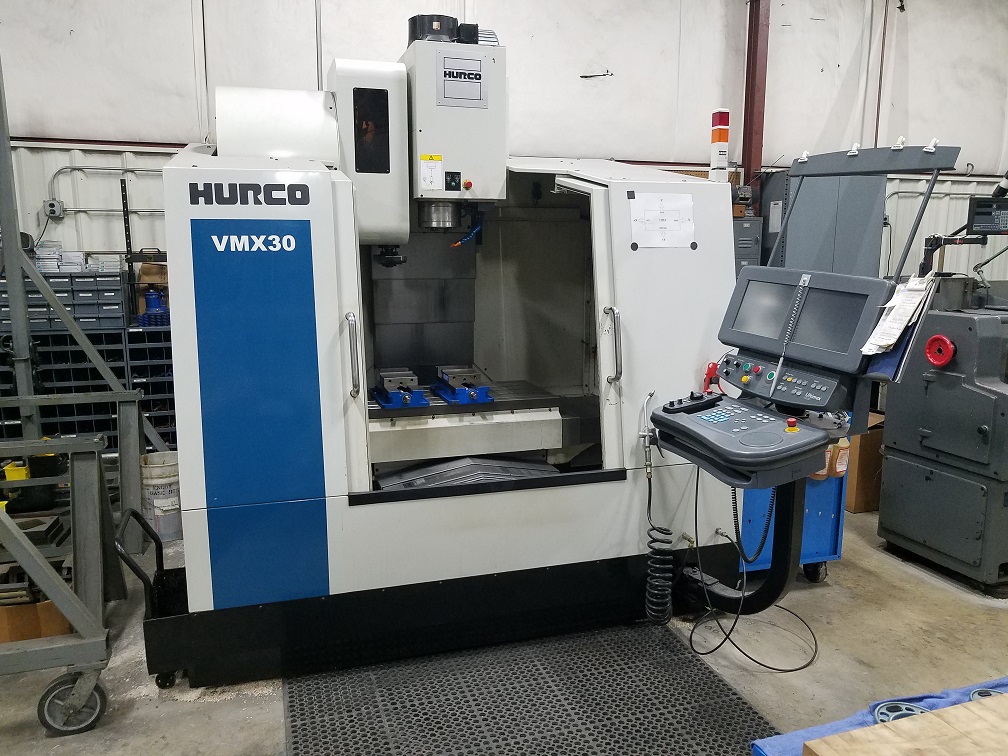

2001 HURCO VMX-30

WinMax Upgrade, 30.20.24", 10000 RPM, 24 Tools, 17.6 HP, Cat 40, SMTC
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 20"
  • Z-Axis 24"
  • Table Size 40" x 20"
  • Spindle Taper CAT 40
  • Spindle Motor 17.6 HP
  • Tools 24
  • Table Load Capacity 3000 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1181 / 787 IPM
  • Max Tool Diameter 4.7"
  • Max Tool Length 11.8"
  • Max Tool Weight 15 lbs.
  • Machine Dimensions (L x W x H) 92" x 86" x 110"
  • Machine Weight 9810 lbs.
  • Spindle Nose to Table Top 6" - 30"
  • Spindle Torque 185 ft. lbs.
  • Tool Change Time (T - T / C - C) 3 / 7 Seconds

Product Features

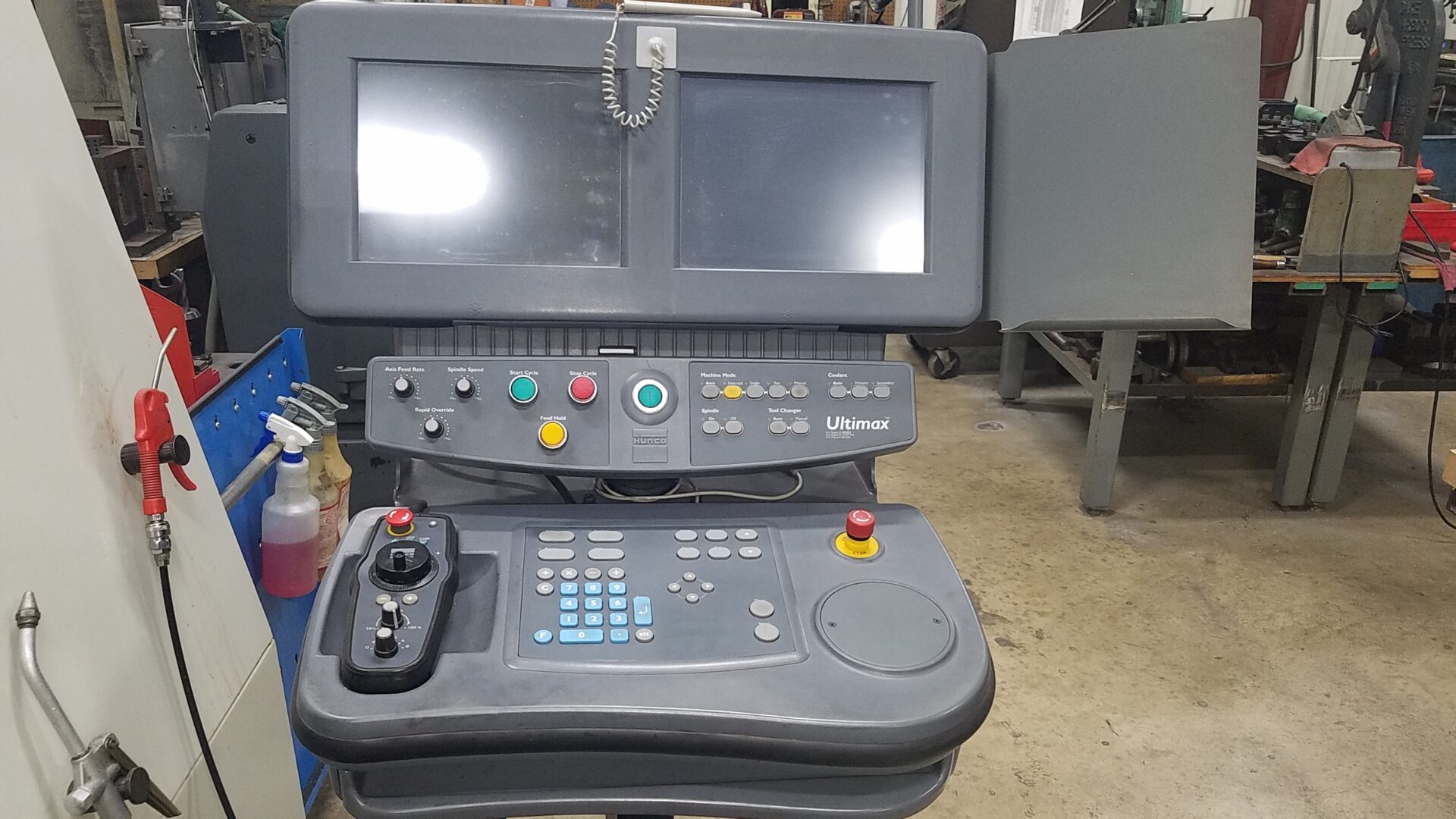

  • HURCO WinMax CNC CONTROL UPGRADE
  • Dual 12" Color TFTs
  • USB Port
  • Rigid Tapping
  • 24 Position Side Mount Tool Changer
  • Remote Jog Handle
  • Two Color Tower Light
