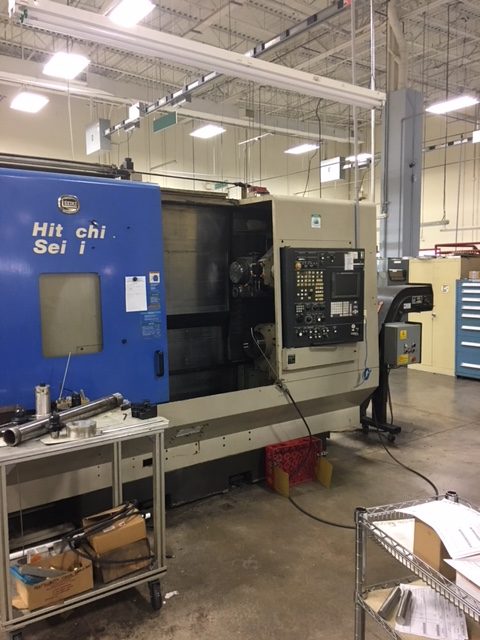

2001 HITACHI SEIKI SUPER HICELL CH-250
Fanuc 18iTA, 2.56" Bar, 10" Chuck, 4000 RPM, 60 Tools, B & Y-Axis Live Tooling, Chip Conveyor
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 10"
-
Max Diameter Bar Capacity 2.56"
-
Max Swing Over Bed 19.68"
-
Max Machining Length 28.3"
-
Spindle Motor 25 / 20 HP
-
Spindle Speed 30 - 4000 RPM
-
Spindle Nose A2-8
-
Spindle Bore 3.15"
-
Tools 60
-
Milling Motor 10 / 7.5 HP
-
Milling Speed 80 - 8000 RPM
-
Rapid Traverse Rates (X & Z / Y) 1181 / 590 IPM
-
X-Axis Travel 23.6"
-
Z-Axis Travel 39.5"
-
Y-Axis Travel +/- 3.0"
-
C-Axis Index .001 Degrees
-
Machine Weight 17,000 lbs.
-
Max Tool Diameter 3.9"
-
Max Tool Length 9.8"
-
Max Tool Weight 15.4 lbs.
-
Max Turning Dia (Live / Turning Tools) 19.68" / 14.56"
-
Tool Positions 2
Product Features
- SEICOS SIGMA 18T (FANUC 18iTA) CNC CONTROL
- 10.4" Color LCD
- PC / MCIA Interface
- Ethernet Capability
- C, Y & B-Axis Milling Capability
- Programmable Sub Spindle
- 60 Tool Magazine
- 10" Hydraulic Chuck for Main Spindle
- 6" Hydraulic Chuck for Sub Spindle
- X, Y & Z-Axis Torque Limiter Protection
