Special Item

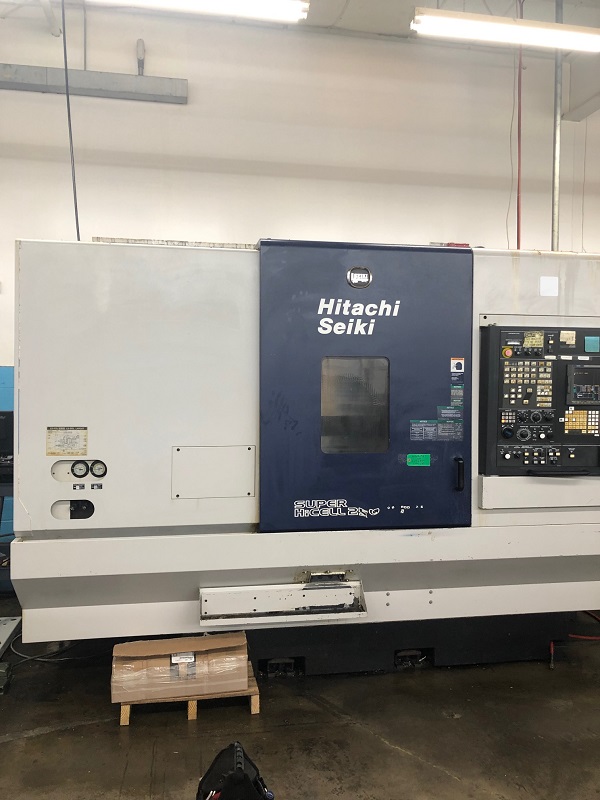

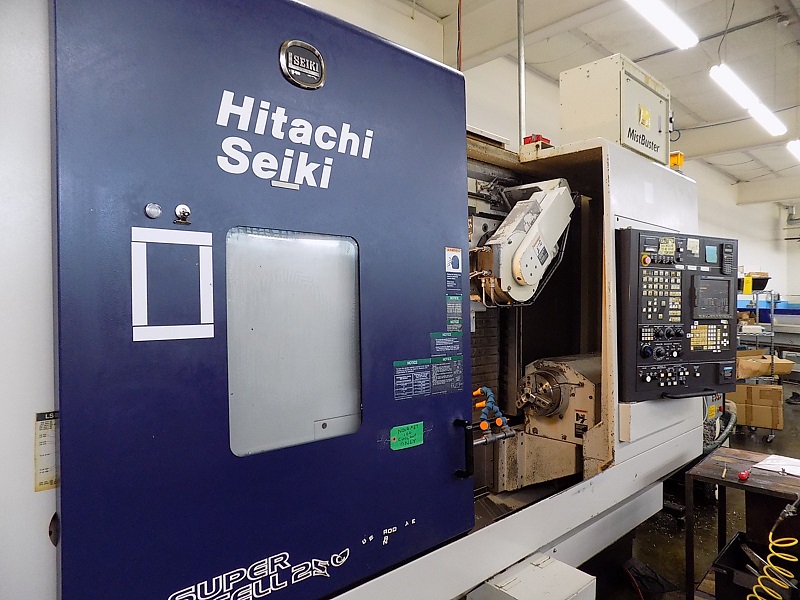

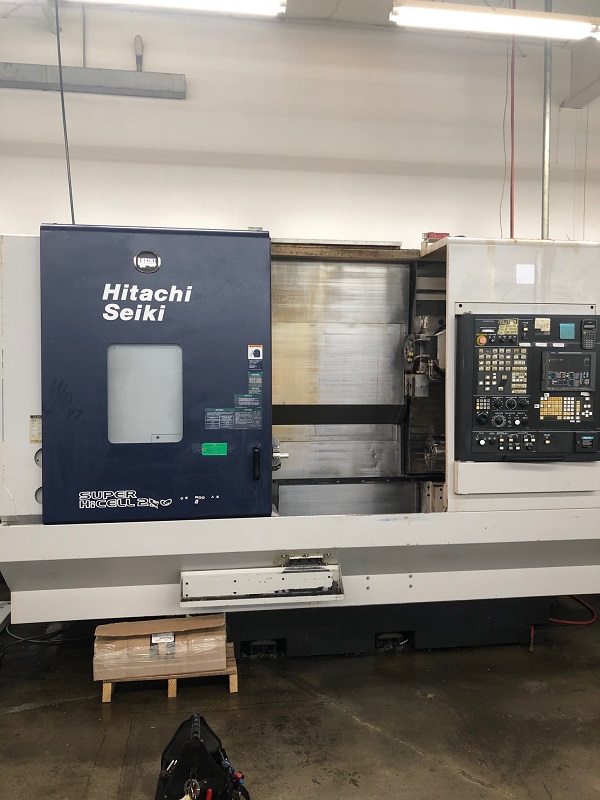

2002 HITACHI SEIKI SUPER HICELL CH-250

Fanuc 16iT, 2.56" Bar, 10" Chuck, 4000 RPM, 42 Tools, Y-Axis, B-Axis, Sub Spindle, Barfeed, TSC, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.56"
  • Max Swing Over Bed 19.68"
  • Max Machining Length 28.3"
  • Spindle Motor 25 / 20 HP
  • Spindle Speed 30 - 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.1"
  • Tools 42
  • Milling Motor 10 / 7.5 HP
  • Milling Speed 80 - 8000 RPM
  • Sub Spindle Bar Capacity 1.7"
  • Sub Spindle Chuck Size 8"
  • Rapid Traverse Rates (X & Z / Y) 1181 / 590 IPM
  • X-Axis Travel 23.6"
  • Z-Axis Travel 39.5"
  • Y-Axis Travel +/- 3.0"
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • B-Axis Index .001 Degree
  • Machine Weight 17,000 lbs.
  • Max Tool Diameter 3.9"
  • Max Tool Length 9.8"
  • Max Tool Weight 15.4 lbs.
  • Max Turning Dia (Live / Turning Tools) 19.68" / 14.56"

Product Features

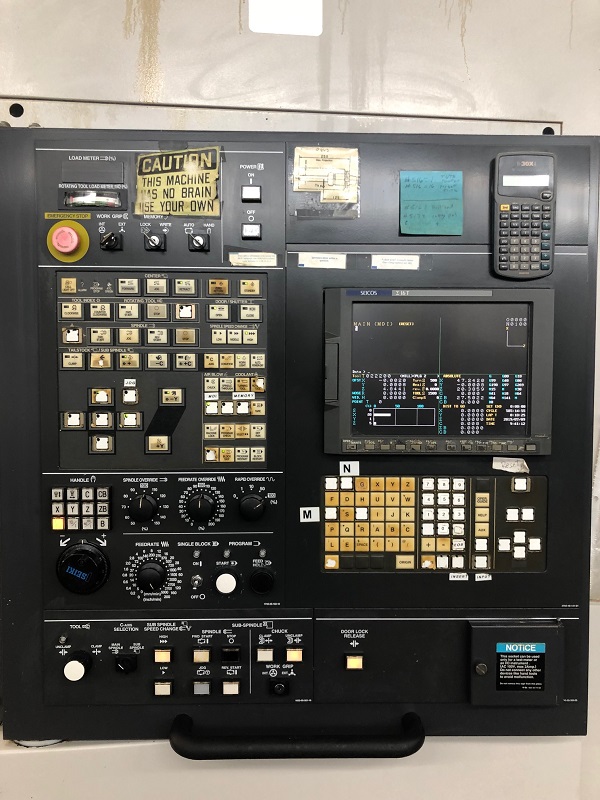

  • SEICOS SIGMA 16T (FANUC 16iT) CNC CONTROL
  • 10.4" Color LCD
  • PC / MCIA Interface

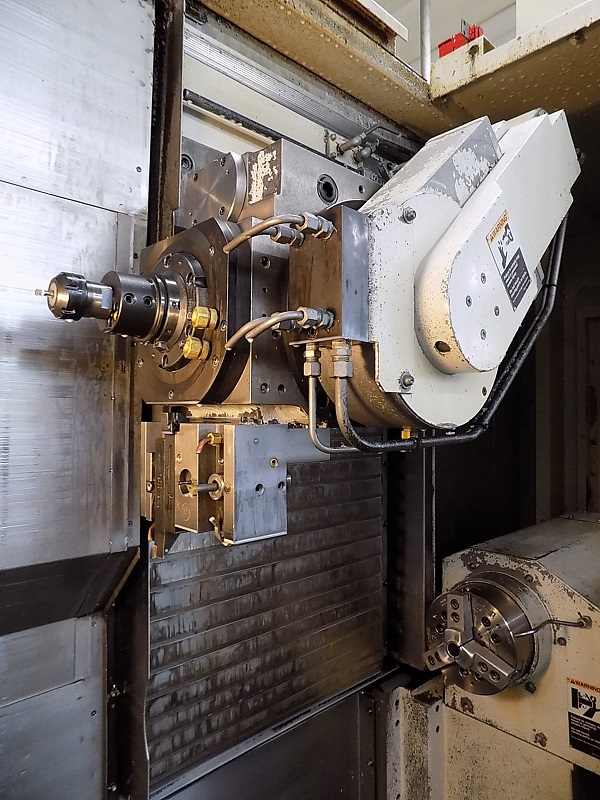

  • B-Axis with .001 Degree Index
  • C, Y & B-Axis Milling Capability

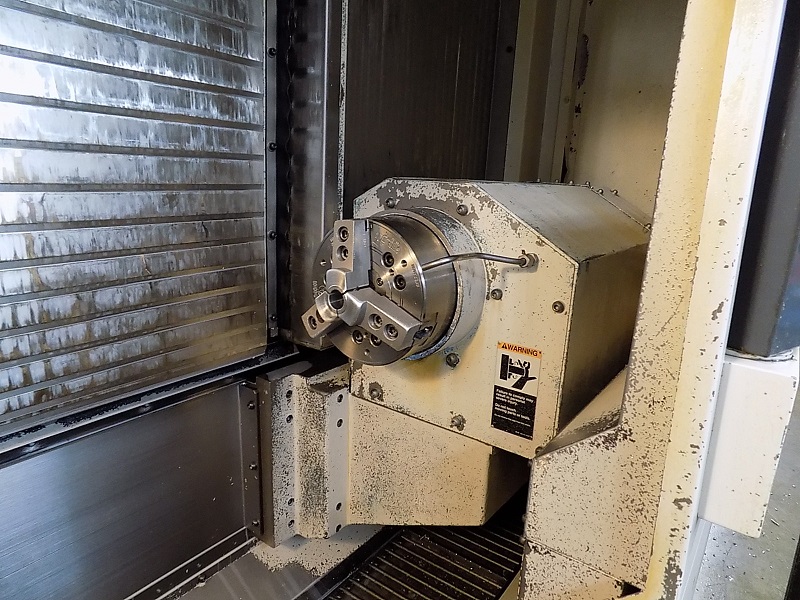

  • Programmable Sub Spindle with Full C-Axis
  • 42 Tool Magazine

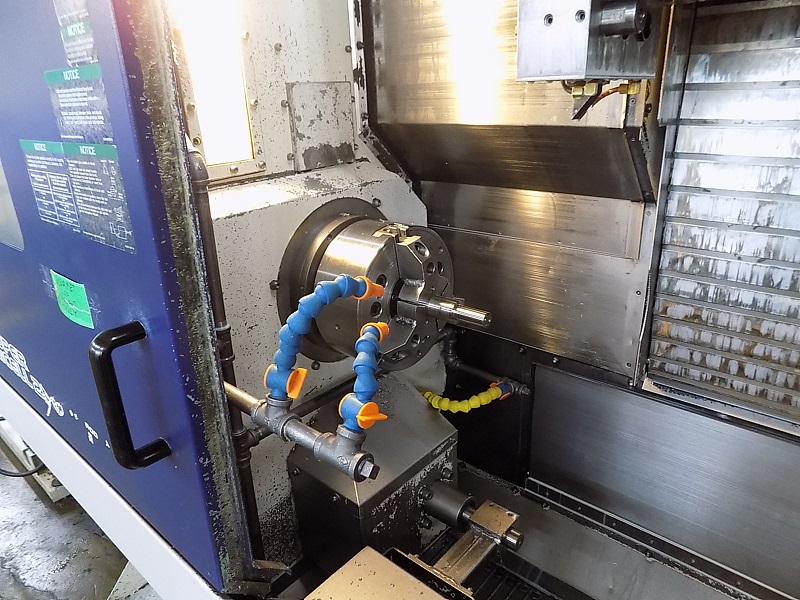

  • 10" Hydraulic Chuck on Main Spindle
  • 8" Chuck on Sub Spindle
  • Auto Parts Catcher

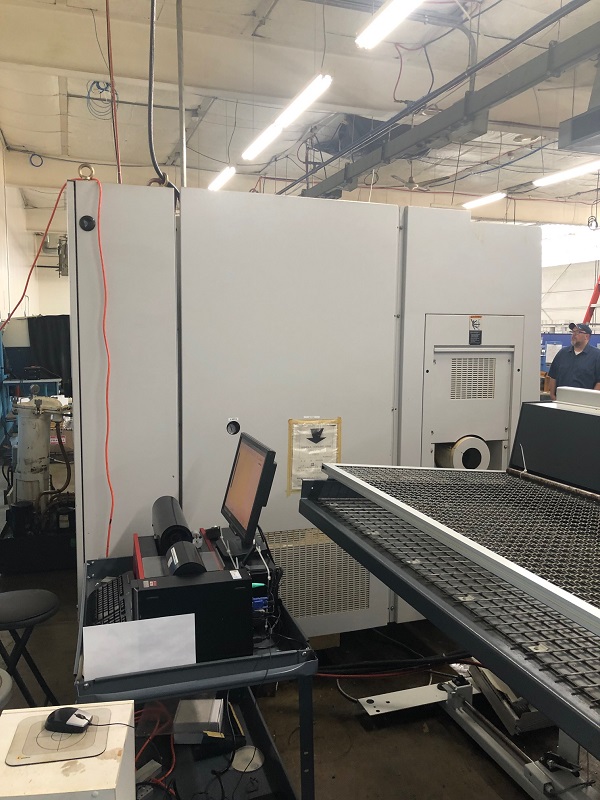

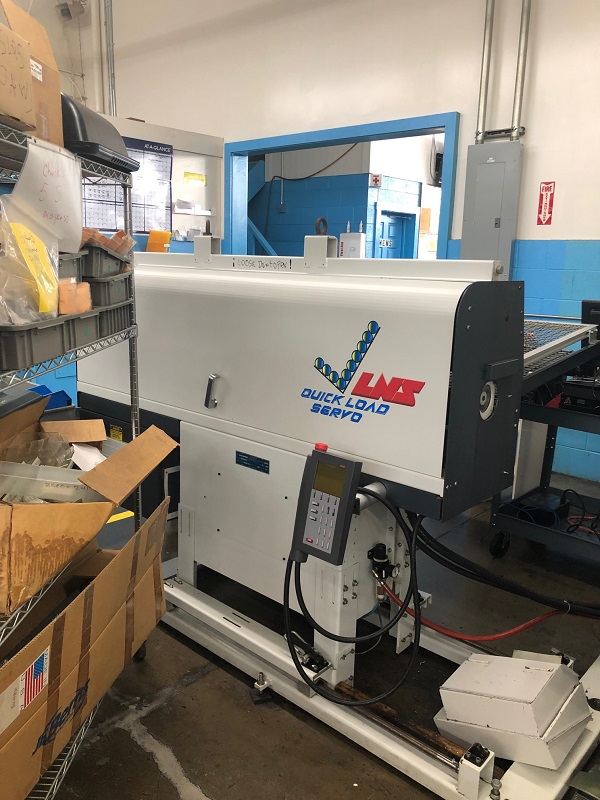

  • LNS Quick Load Servo Short Magazine Barfeed

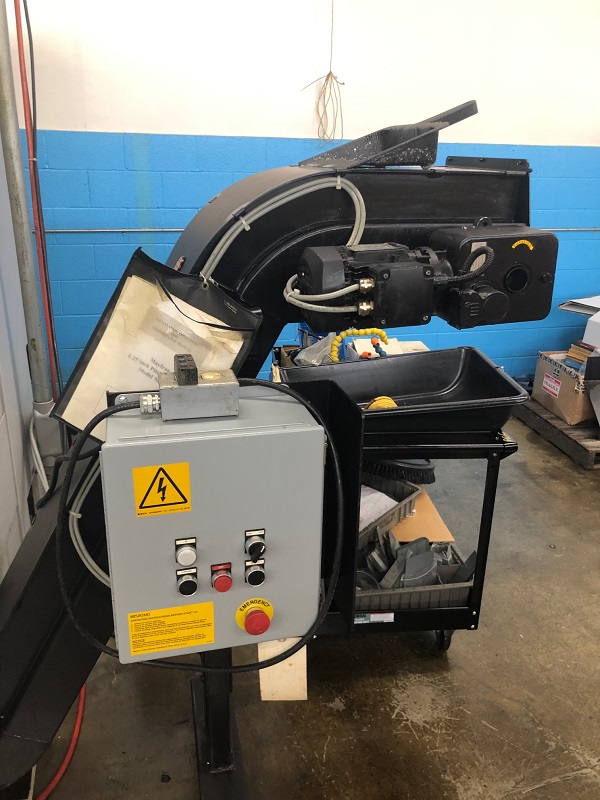

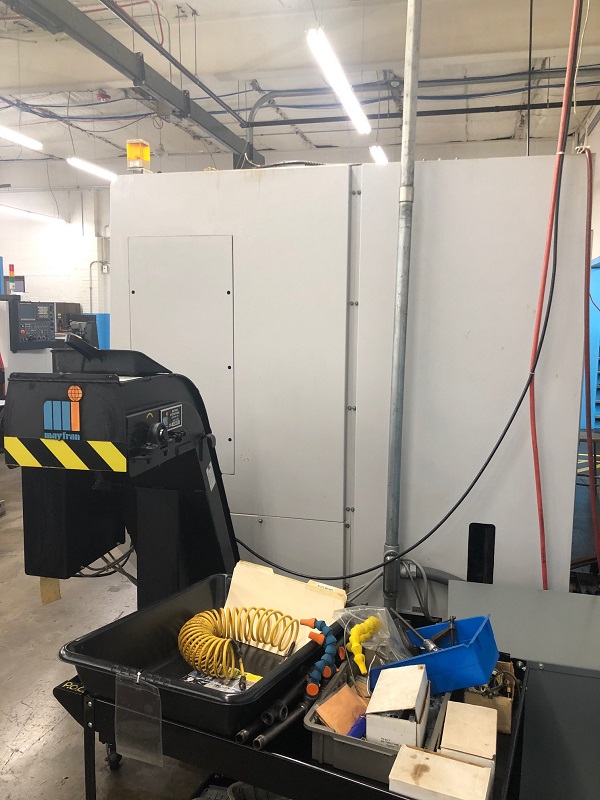

  • Chip Conveyor (Side Exit)
  • Q Setter (Automatic Tool Setter)
  • Yellow Operating Condition Light

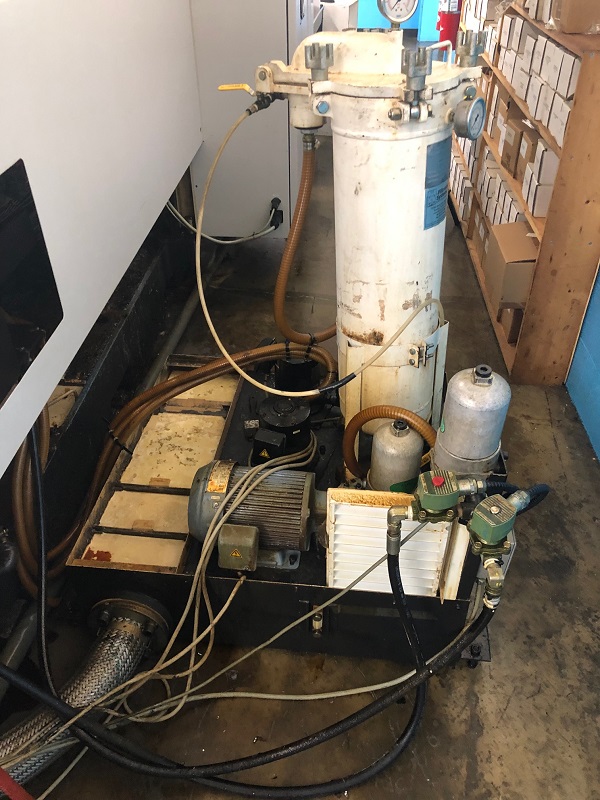

  • High Pressure Coolant Thru Spindle
  • Milling Spindle Rigid Tapping
  • Spindle Chiller Unit
  • X, Y & Z-Axis Torque Limiter Protection
  • Approximately (60) KV4540 Tool Holders
  • (14) Spindle Liners
