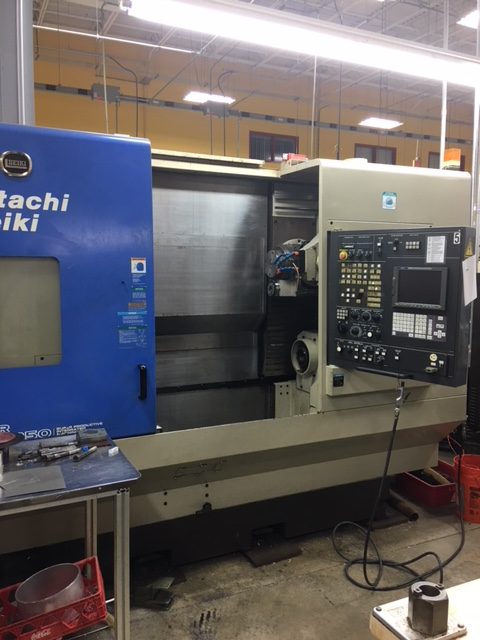

2001 HITACHI SEIKI SUPER HICELL CH-250 (#2)

Fanuc 18iTA, 2.56" Bar, 10" Chuck, 4000 RPM, 40 Tools, B & Y-Axis Live Tooling, Sub Spindle, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.56"
  • Max Swing Over Bed 19.68"
  • Max Machining Length 28.3"
  • Spindle Motor 25 / 20 HP
  • Spindle Speed 30 - 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Milling Motor 10 / 7.5 HP
  • Milling Speed 80 - 8000 RPM
  • Rapid Traverse Rates (X & Z / Y) 1181 / 590 IPM
  • X-Axis Travel 23.6"
  • Z-Axis Travel 39.5"
  • Y-Axis Travel +/- 3.0"
  • C-Axis Index .001 Degrees
  • Machine Weight 17,000 lbs.
  • Max Tool Diameter 3.9"
  • Max Tool Length 9.8"
  • Max Tool Weight 15.4 lbs.
  • Max Turning Dia (Live / Turning Tools) 19.68" / 14.56"

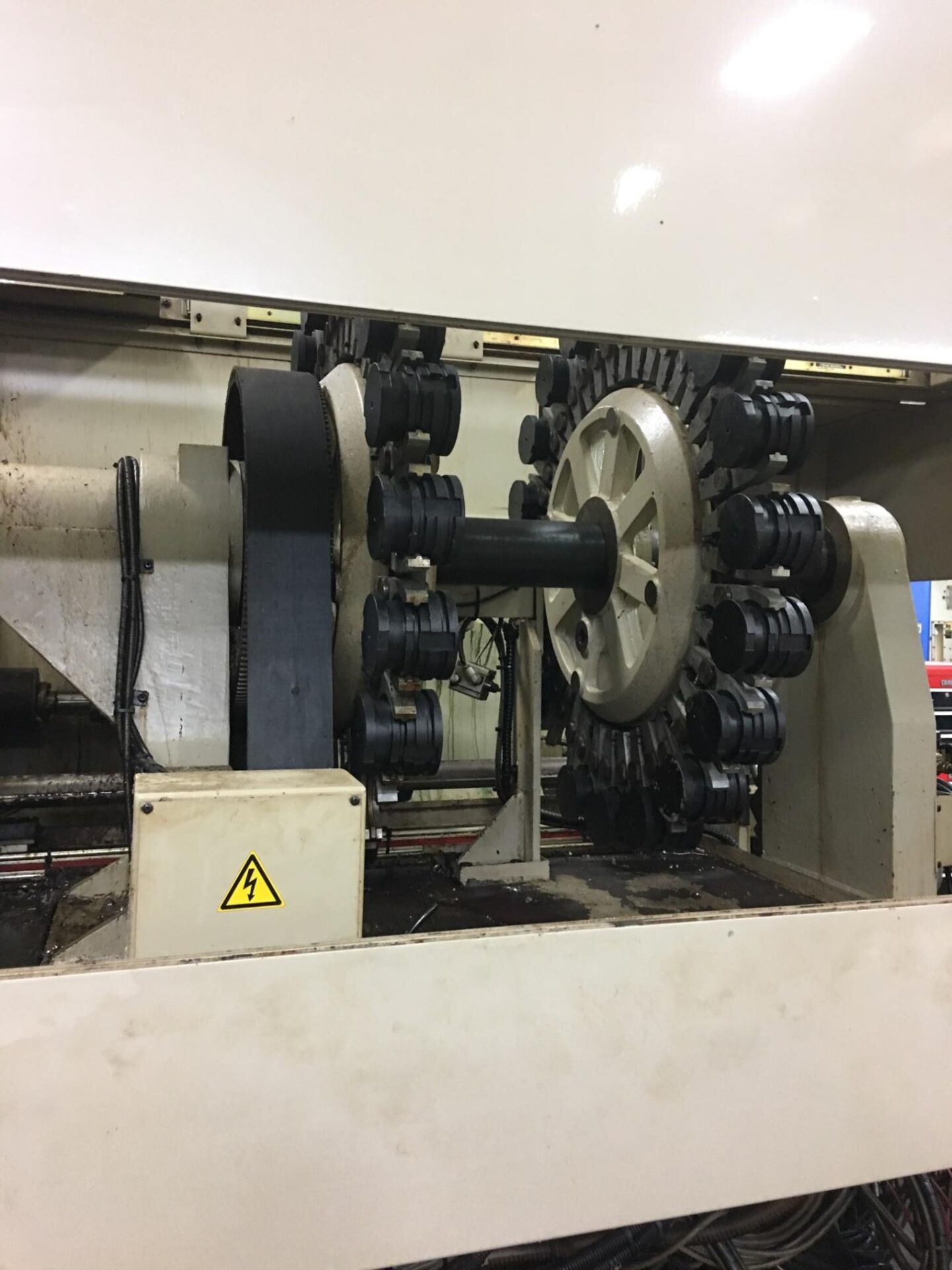

  • Tool Magazine 40
  • Tool Positions 2

Product Features

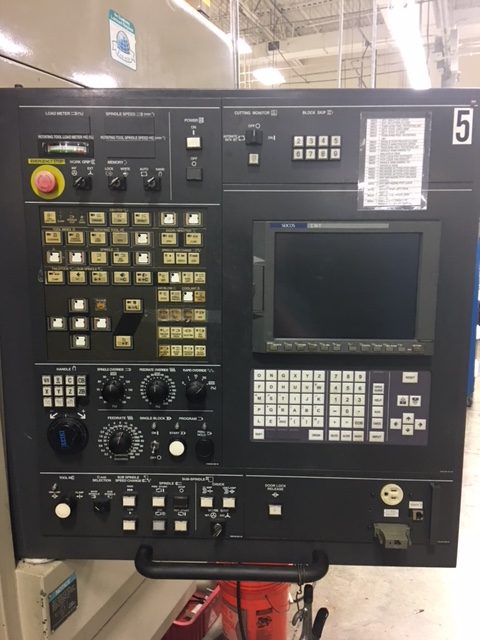

  • SEICOS SIGMA 18T (FANUC 18iTA) CNC CONTROL
  • 10.4" Color LCD
  • PC / MCIA Interface
  • Ethernet Capability
  • C, Y & B-Axis Milling Capability
  • Programmable Sub Spindle
  • 40 Tool Magazine
  • 10" Hydraulic Chuck for Main Spindle
  • X, Y & Z-Axis Torque Limiter Protection
