< Back to Vertical M/C
Special Item

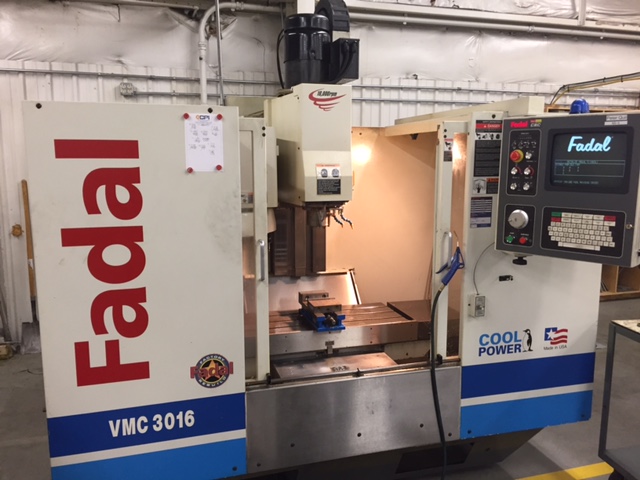

2001 FADAL VMC 3016HT

FADAL 32MP Micro Processor CNC Control, Rigid Tapping, 10,000 RPM, Cool Power with Chilled Spindle & Ball Screws, Heavy Duty Box Way Construction,
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 16"
  • Z-Axis 20"
  • Table Size 39" x 16"
  • Spindle Speed 10 - 10,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 15 HP
  • Tools 21
  • Table Load Capacity 2736 lbs.
  • Rapid Traverse Rates (X & Y / Z) 900 / 700 IPM
  • Max Tool Diameter 3" / 4.5"
  • Max Tool Length 15"
  • Max Tool Weight 15 lbs.
  • Machine Dimensions (L x W x H) 98" x 77" x 103"
  • Machine Weight 8550 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Spindle Torque 160 ft. lbs.

Product Features

  • FADAL 32MP Micro Processor CNC CONTROL
  • 12" Monochrome CRT
  • Graphic Display
  • Rigid Tapping
  • Expanded Memory
  • High Speed CPU
  • Cool Power with Chilled Spindle & Ball Screws
  • Heavy Duty Box Way Construction
  • Remanufactured in 2001
