2002 OKUMA & HOWA MILLAC 438V

Fanuc 18iM, 32.17.18", 10000 RPM, 20 Tools, 30 HP, Cat 40 Big Plus, Box Ways, HAAS Indexer
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 32.5"
  • Y-Axis 16.9"
  • Z-Axis 17.7"
  • Table Size 41.3" x 16.1"
  • Spindle Speed 10,000 RPM
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 30 HP AC
  • Tools 20
  • Table Load Capacity 1100 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1181 / 945 IPM
  • Max Tool Diameter 4.33"
  • Max Tool Length 11.8"
  • Max Tool Weight 13.2 lbs.
  • Machine Dimensions ( L x D x H) 92.8" x 90.6" x 104.3"
  • Machine Weight 11,466 lbs.
  • Spindle Nose to Table Top 5.9" - 23.62"

Product Features

  • FANUC 18iM CNC Control
  • 10.4" Color LCD
  • 30 HP Integral Spindle Motor
  • HAAS Rotary Indexer
  • Rigid Tapping
  • Remote Jog Handle
  • Spindle Chiller Unit
  • Heavy Duty Box Way Construction

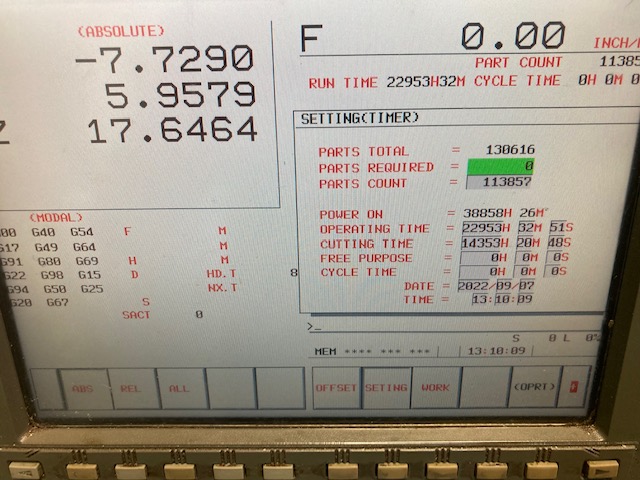

  • 38,858 Power On Time
  • 22,953 Operation Time
  • 14,353 Cutting Time
