< Back to Lathes

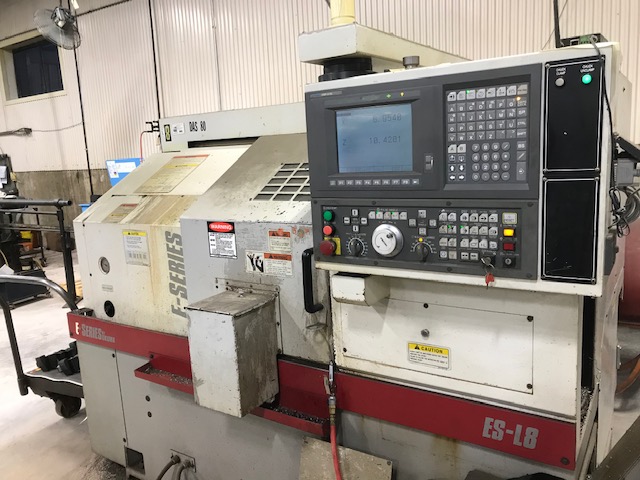

2001 OKUMA ES-L8
OSP-U10L, 2" Bar, 8" Chuck, 4200 RPM,12 Tools, 10HP, Chip, Box Ways
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 8"
-
Max Diameter Bar Capacity 2"
-
Max Swing Over Bed / Carriage 17.7"
-
Max Machining Length 19.68"
-
Spindle Motor 10 / 7.5 HP AC
-
Spindle Speed 100 - 4200 RPM
-
Spindle Nose A2-6
-
Spindle Bore 2.44"
-
Tools 8
-
Rapid Traverse Rates 591 / 787 IPM
-
X-Axis Travel 6.1"
-
Z-Axis Travel 20.47"
-
Machine Dimensions (L x W x H) 120.5" x 66" x 67"
-
Machine Weight 8140 lbs.
-
Max Turning Diameter 10.60"
-
Tailstock Taper MT #5
Product Features

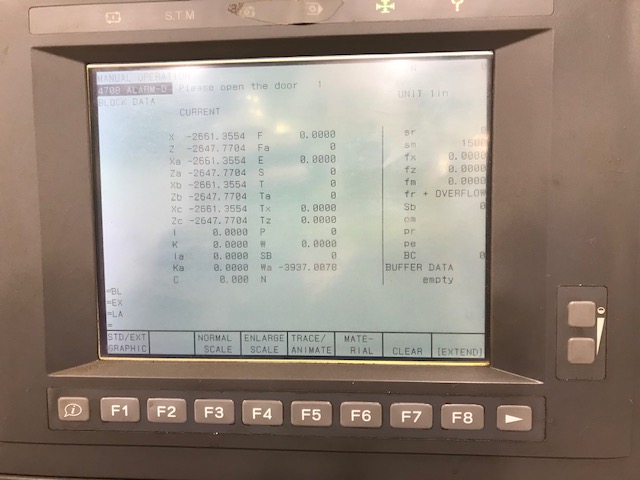

- OSP U10L CNC CONTROL
- 9.5" Monochrome TFT
- 8" Hydraulic Chuck
- Hydraulic Tailstock
- Automatic Parts Catcher
- Chip Conveyor
- Absolute Position Encoders
- Inch/Metric Switchable
- N/C Torque Limiter Protection
- Graphic Animation
- Lap 4
- User Task 2
- 1 MB Extended Memory
- 3.5" Floppy Disc Drive
- Nose Radius 2B
- Expanded Auto Chamfering
- Cycle Time Calculation
- Thread Feed Hold
- Three Color Status Light
