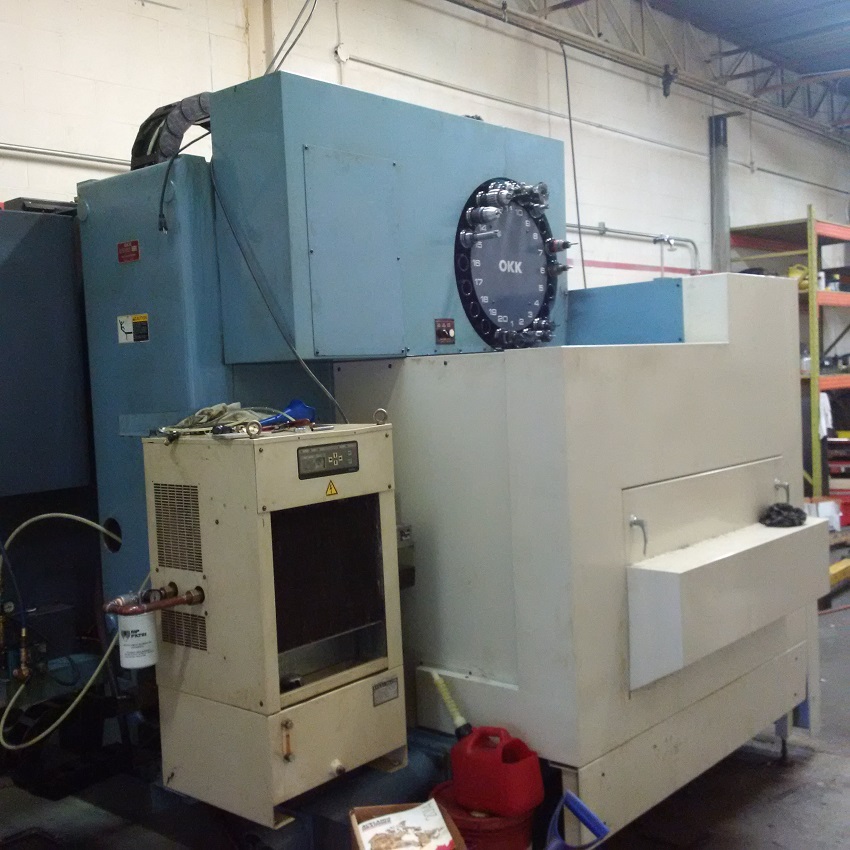

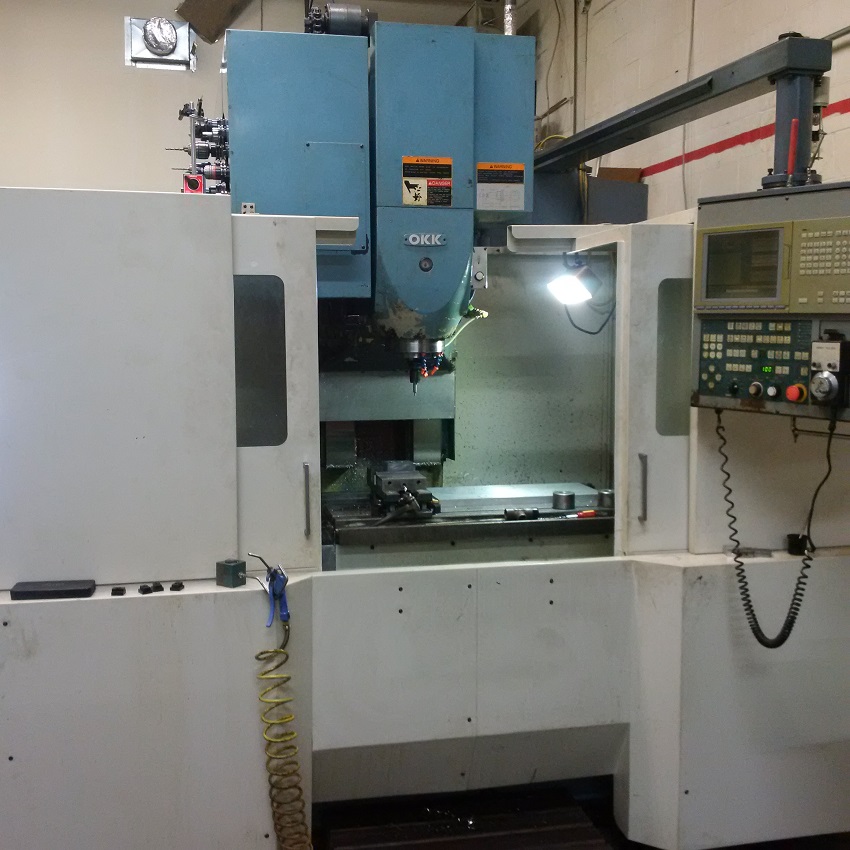

2000 OKK VM-5/40

Mits M600, 40.20.20", 8000 RPM, Cat 40, 25HP, 20 Tools, Dual Augers
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40.16"
  • Y-Axis 20.08"
  • Z-Axis 20.08"
  • Table Size 41.34" x 22.05"
  • Spindle Speed 25 - 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 25 HP
  • Tools 20
  • Table Load Capacity 1764 lbs.
  • Rapid Traverse Rates (X Y & Z)
  • Max Tool Diameter 4.33" / 8.66"
  • Max Tool Length 13.78"
  • Max Tool Weight 19.6 lbs.
  • Machine Dimensions (L x W x H) 114.57" x 97.64" x 112.05"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 5.91" - 25.98"
  • Spindle Torque 207.78 ft. lbs.
  • Tool Change Time (T - T / C - C) 2 / 5.5 Seconds

Product Features

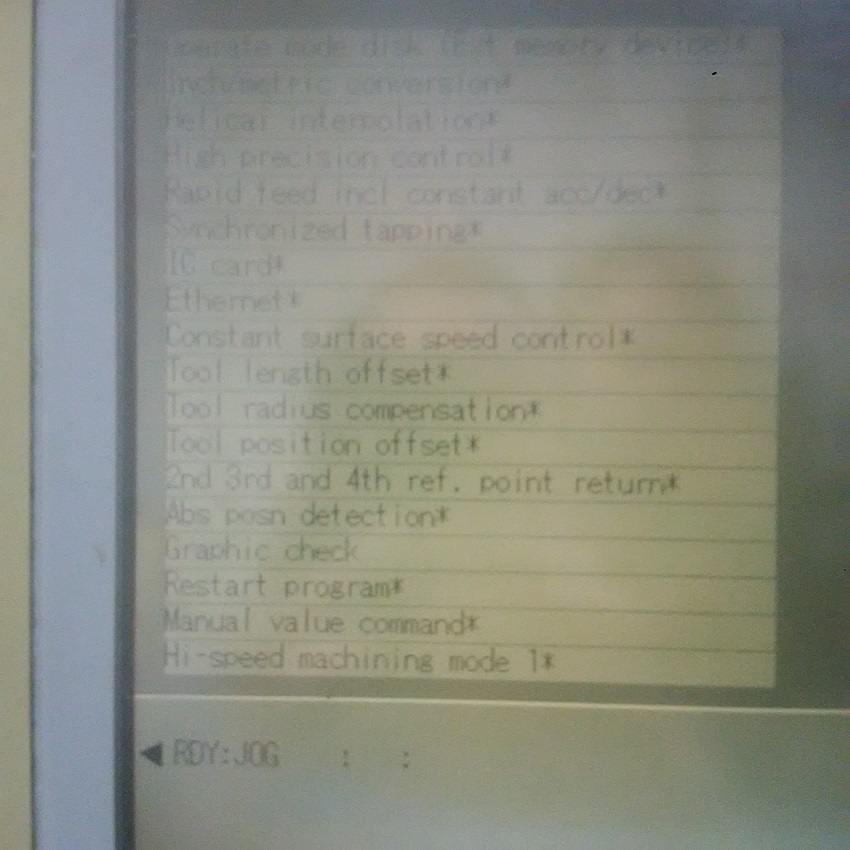

  • MITSUBISHI M600 CNC CONTROL
  • 10.4" Color LCD
  • PC / MCIA Interface
  • 4th Axis Interface
  • 20 Position Side Mount Tool Changer
  • Synchronized Tapping
  • Helical Interpolation
  • Dual Chip Augers
  • Remote Manual Pulse Generator
  • Hi-Speed Machining Mode
  • Tool Length Offset
  • Tool Radius Compensation
  • Tool Position Offset
  • Run Hour & Parts Count Display
  • Heavy Duty Box Way Construction
