< Back to Lathes
Special Item

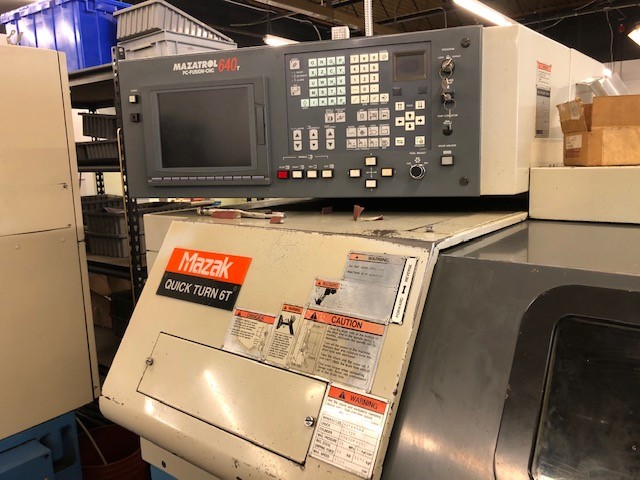

2000 MAZAK QUICK TURN 6T

Mazatrol Fusion 640T, 1.25" Bar, 5" Chuck, 7.5 HP, 7000 RPM, 8 Tools, Tool Eye, Tailstock, Collet Chuck
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 5"
  • Max Diameter Bar Capacity 1.25"
  • Max Swing Over Bed 17.32"
  • Max Machining Length 7.68"
  • Spindle Motor 7.5 / 5 HP AC
  • Spindle Speed 35 - 7000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 1.73"
  • Tools 8
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 3.19"
  • Z-Axis Travel 7.88"
  • Turret Index (Single Step / Full) 0.2 / 1.1 Seconds
  • Machine Dimensions (L x W x H) 67.3" x 52.8" x 63.0"
  • Machine Weight 4600 lbs.
  • Max Turning Diameter 5.12"
  • Tailstock Taper MT#3

Product Features

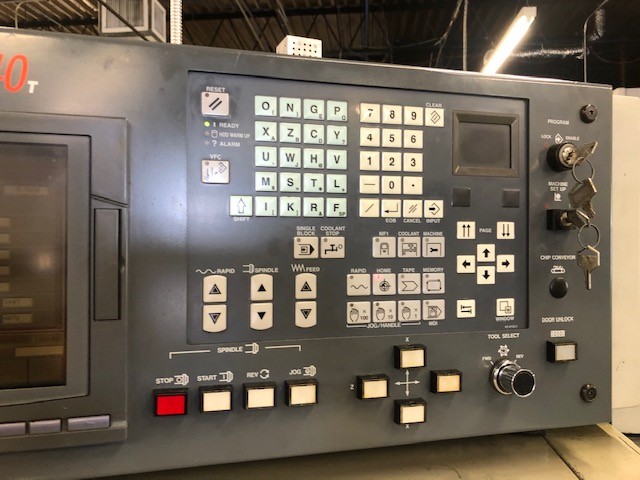

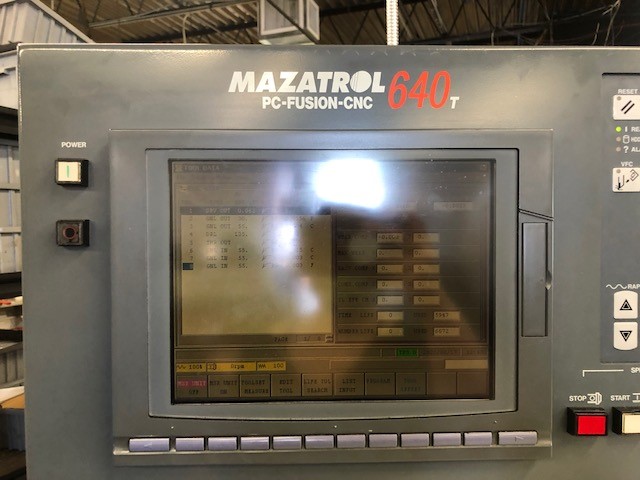

  • MAZATROL Fusion 640 CNC CONTROL
  • 10.4" Color LCD
  • PC/MCIA Interface
  • Conversational Programming

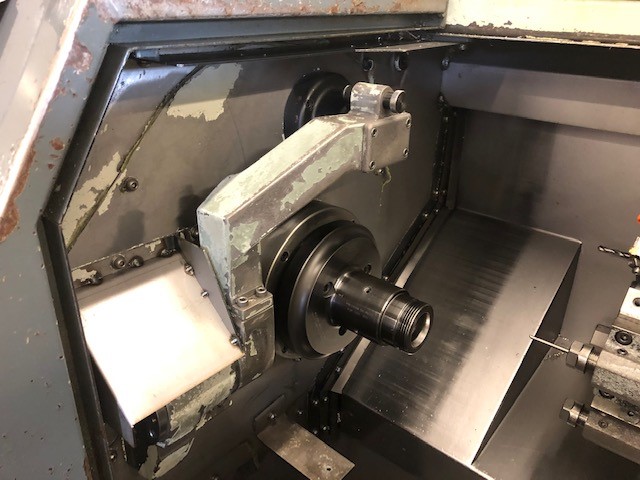

  • Collet Chuck
  • Manual Tailstock
  • Manual Tool Eye
  • (7) Boring Bar Holders
  • (8) OD Wedge Blocks
