Special Item

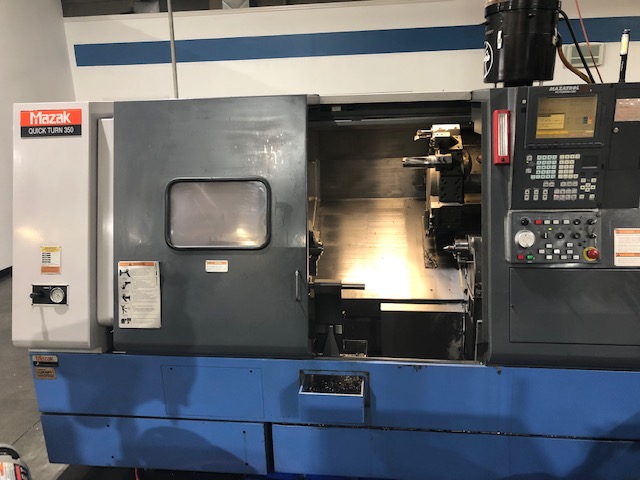

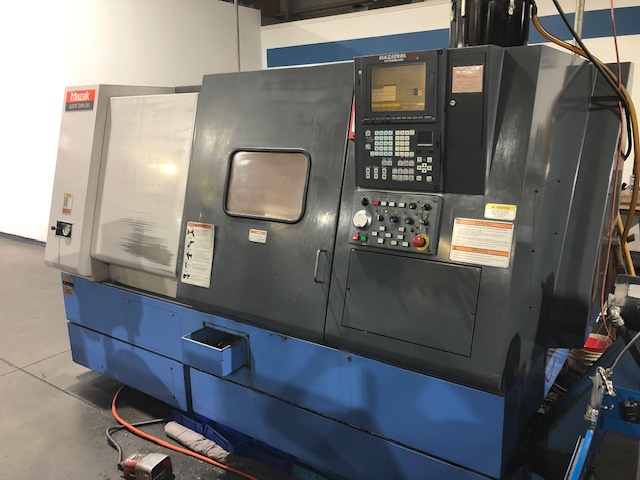

2000 MAZAK QUICK TURN 350

MAZATROL FUSION 640T, 3.5" Bar, 12" Chk, 15.4" Max Dia, 35HP, 12 Tools, Tail, Presetter, APC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Diameter Bar Capacity 3.5"
  • Max Swing Over Bed / Carriage 25.9" / 15.4"
  • Max Machining Length 22.8"
  • Spindle Motor 35 HP
  • Spindle Speed 6 - 2500 RPM
  • Spindle Nose A2-11
  • Spindle Bore 4.1"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 472 / 980 IPM
  • X-Axis Travel 10.6"
  • Z-Axis Travel 25.6"
  • Turret Index (Single Step) 0.3 Seconds
  • Machine Dimensions (L x W x H) 145" x 81" x 75"
  • Machine Weight 13,000 lbs.
  • Max Turning Diameter 15.4"
  • Tailstock Taper MT#4

Product Features

  • MAZATROL FUSION 640T CNC CONTROL
  • 10.4" Color LCD
  • Conversational Programming
  • Graphic Display
  • 1 MB Memory
  • 3.5" Floppy Disc Drive
  • 1.5 GB Hard Drive
  • 12" Kitagawa B212 Hydraulic Chuck
  • Programmable Tool Eye
  • Programmable Tailstock Body & Quill
  • Automatic Parts Catcher

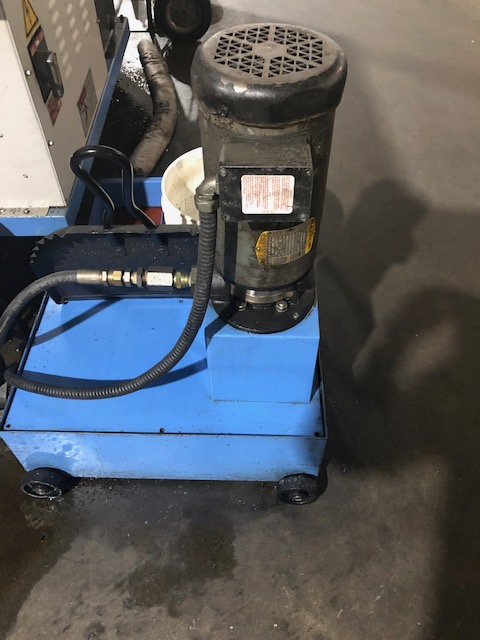

  • High Pressure Coolant Pump
  • Manufactured June 2000
