< Back to Lathes
Special Item

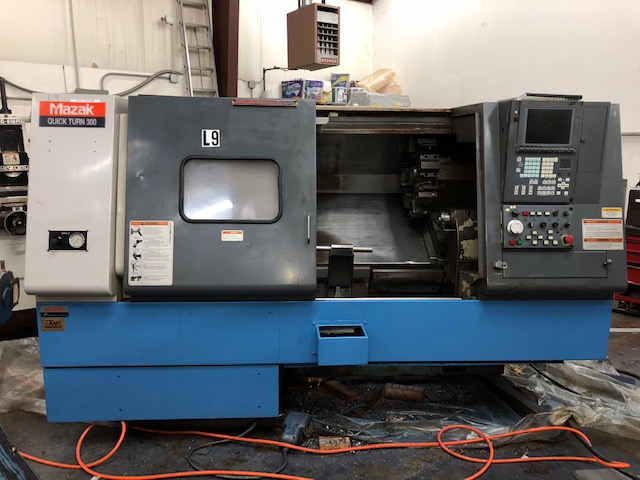

2000 MAZAK QUICK TURN 300

Mazatrol Fusion 640, 2.75" Bar, 10" Chuck, 16" Max Dia, 26" Length, 30 HP, 3300 RPM, Tool Eye, Tailstock, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.75"
  • Max Swing Over Bed / Carriage 23.6" / 16.1"
  • Max Machining Length 25.6"
  • Spindle Motor 30 / 26 HP
  • Spindle Speed 33 - 3300 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 8D / 16P
  • Rapid Traverse Rates (X / Z) 787 / 984 IPM
  • X-Axis Travel 9.8"
  • Z-Axis Travel 26.38"
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 145" x 64" x 67.32"
  • Machine Weight 14,000 lbs.
  • Max Turning Diameter 16.1"
  • Spindle Torque 319 ft. lbs.
  • Tailstock Taper MT#4

Product Features

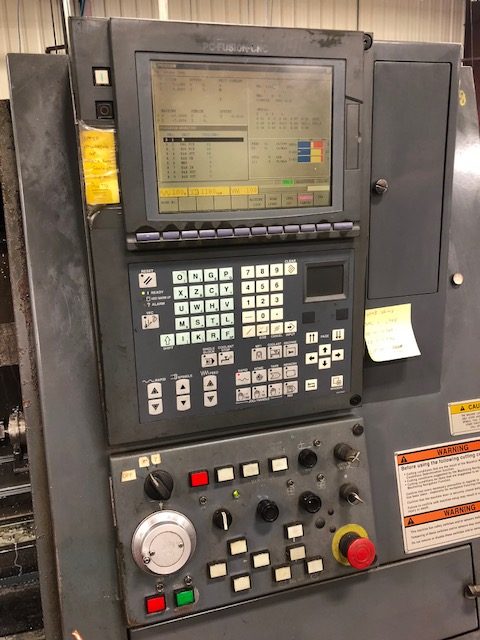

  • Mazatrol Fusion 640T CNC Control
  • 10.4" Color LCD
  • 10" Kitagawa B210 Hydraulic Chuck
  • Programmable Tailstock Body & Quill
  • Programmmable Tool Eye
  • Jorgenson Chip Conveyor (Side Exit)
  • Auto Parts Catcher
  • (5) Boring Bar Holders
  • (2) Turning Holders
  • (1) Tandem Turning Holder
  • Multi-Tap Transformer
  • Manufacture Date March 2000
  • 6749 Power On Time
  • 4958 Auto Operation Time
  • 9077 Auto Cut Time
  • 8416 Total Cut Time
  • 6749 Total Time
