Special Item

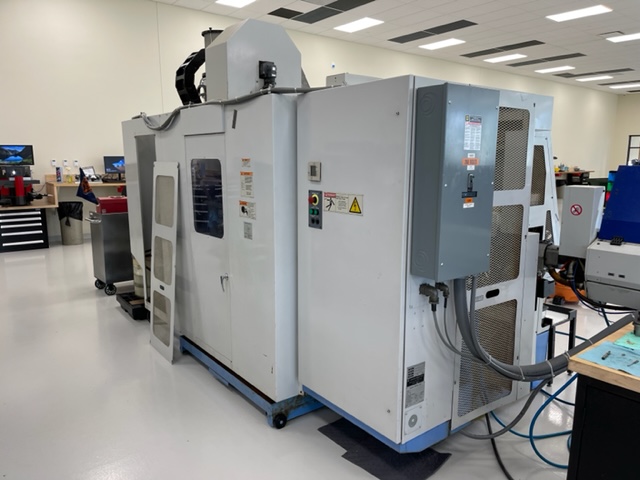

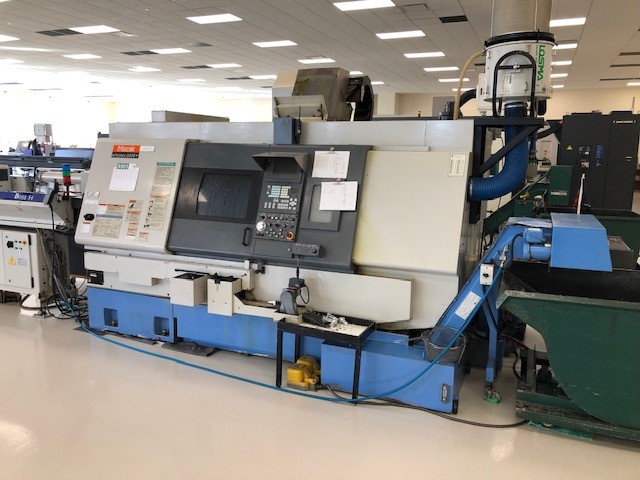

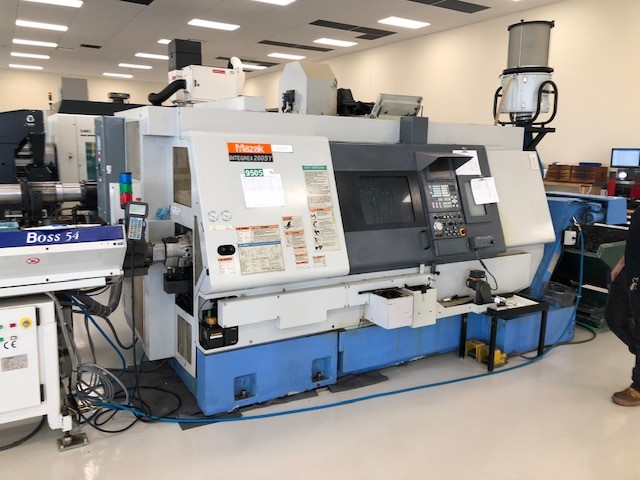

2000 MAZAK INTEGREX 200SY

Mazatrol Fusion 640, 2" Bar, 8" Chuck, 40" Length, 30 HP, 40 Tools, Y & B-Axis Live Tooling, Barfeed, Parts Catcher, Exit Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 21.25" / 20.47"
  • Max Machining Length 39.56"
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Tools 40
  • Milling Motor 20 HP AC
  • Milling Spindle 10,000 RPM
  • Sub Spindle Bore 1.73"
  • Sub Spindle Motor 10 HP AC
  • Sub Spindle Speed 35 - 5000 RPM
  • Rapid Traverse Rates (X / Z) 1181 / 1299 IPM
  • X-Axis Travel 20.87"
  • Z-Axis Travel 41.9"
  • Y-Axis Travel +/- 2.75"
  • C-Axis Index (Main & Sub Spindle) .0001 Degrees
  • B-Axis Rotation 225 Degrees
  • Machine Dimensions (L x W x H) 137.2" x 82.87" x 95.1"
  • Machine Weight 12,760 lbs.
  • Machine Weight 17,000 lbs.
  • Max Tool Diameter 3.54" / 4.72"
  • Max Tool Length 9.84"
  • Max Tool Weight 15 lbs.
  • Max Turning Diameter (Chucking) 21.25"
  • Spindle Torque 258 ft. lbs.

Product Features

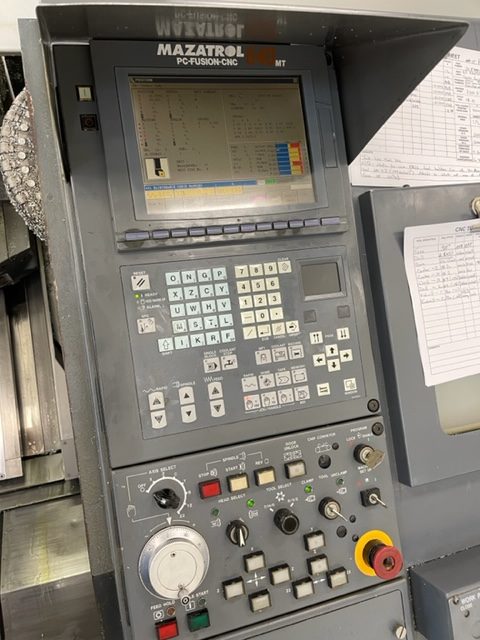

  • MAZATROL FUSION 640 MT CNC CONTROL
  • Conversational Programming
  • 10.4" Color LCD
  • EIA/ISO Input Function
  • Graphic Display
  • 1.5 GB Hard Drive
  • 3.5" Floppy Disc Drive
  • B-Axis Upper Tool Spindle with 0.001 Degree Contouring
  • Y-Axis Milling Capability
  • Programmable Sub Spindle

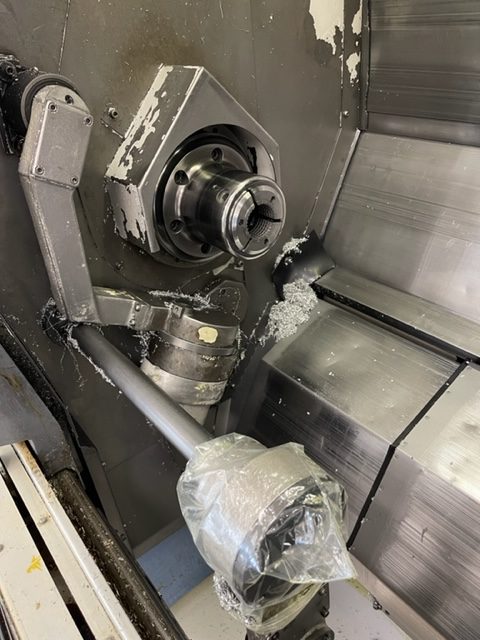

  • ATS S20 Collet Chuck on Main Spindle

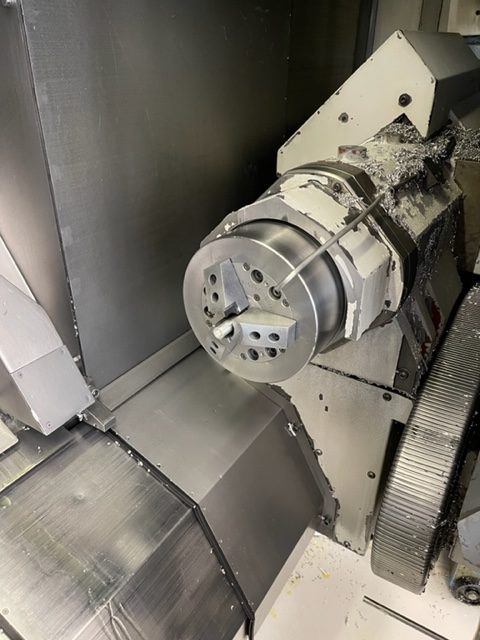

  • Microcentric HPC5 6" Hydraulic Chuck on Sub Spindle
  • 8" & 6" Kitagawa Hydraulic Chucks
  • Coolant Thru Milling Head (213 psi)
  • 40 Tool Magazine (KM 63 Type)
  • 10,000 RPM Milling Spindle
  • Auto Parts Catcher (for Main & Sub Spindles)
  • Work Exit Conveyor
  • Auto Door

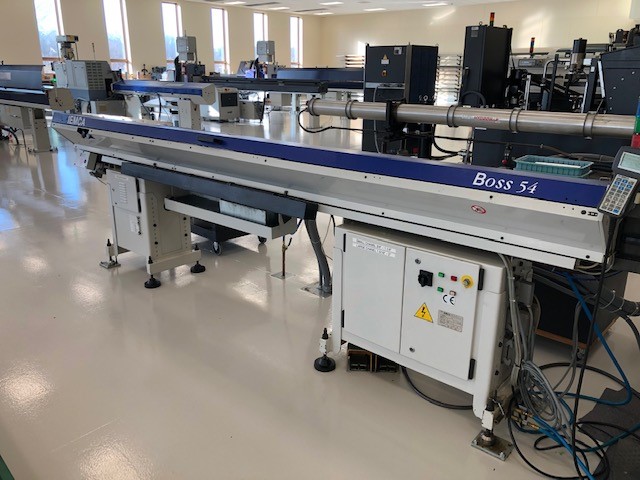

  • Iemca Boss 542/37 Magazine 12 ft. Barfeed
  • (2) Guide Channel Sets (0.75" to 2" Dia.)
  • (2) Pusher Rods
  • Programmable Tool Eye
  • Mayfran Chip Conveyor (Hinge Type Side Exit)
  • Three Color Tower Light
  • Losma Mist Collector
  • (10) KM63 Turning Holders
  • (7) KM63 Live Holders (ER16)
  • (2) KM63 Live Holders (ER25)
  • (9) KM63 Static Boring Bar Holders
  • (3) KM63 Live Boring Bar Holders
  • (4) KM63 Extended Boring Bar Holders
  • (36) Boring Bar Sockets
  • (68) ER25 Collets
  • (20) ER40 Collets
  • (37) S20 Collets
  • (7) Sets of Soft Jaws
  • Manufacture Date February 2000
