< Back to Lathes

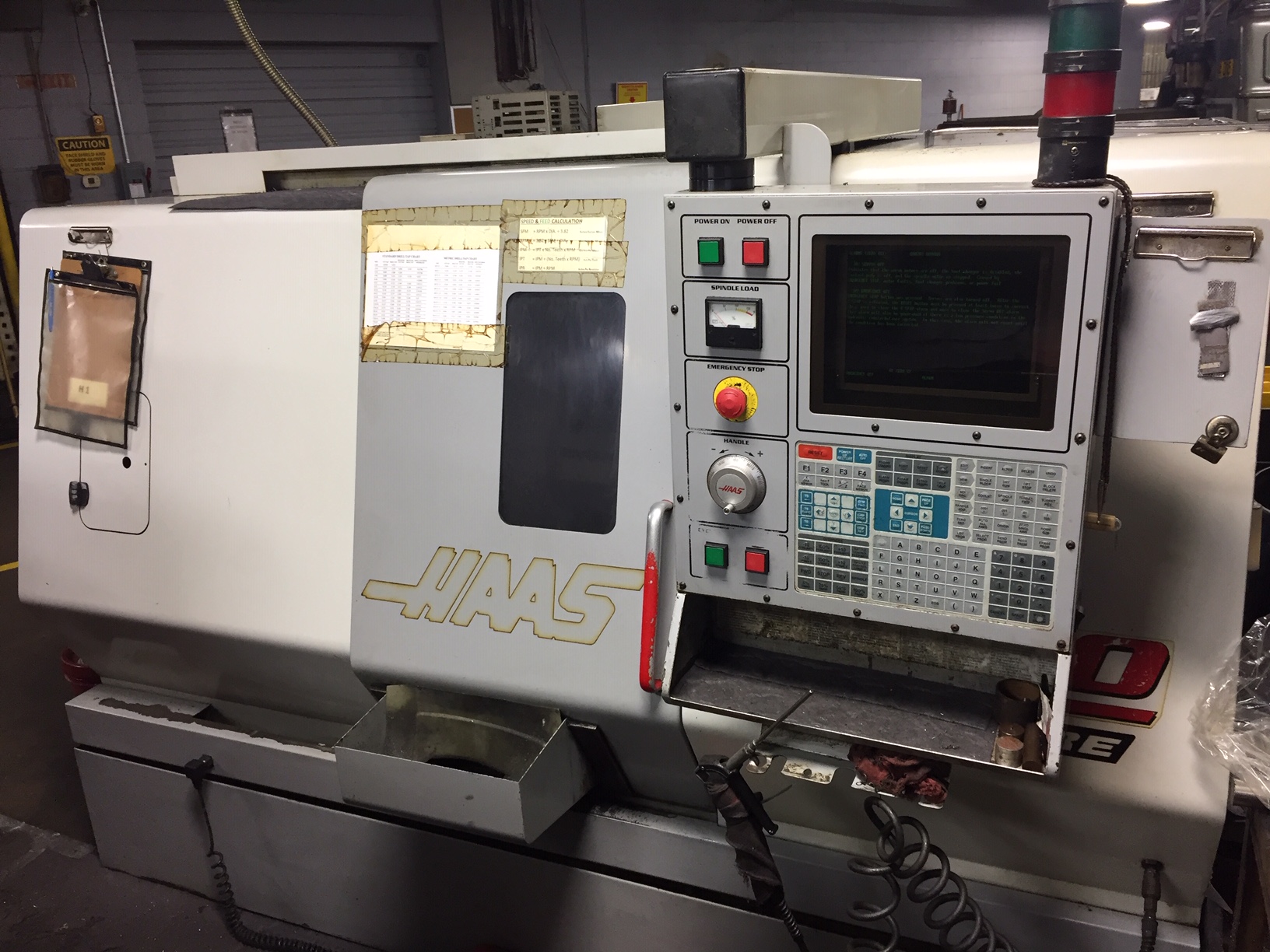

2000 HAAS SL-20TB

2.5" Bar, 10" Chk, 10.3" Max Dia, 20" Length, 20HP, 3400 RPM, 3" Bore, Tail, Tool Presetter, Quick Code Programming, APC, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.5"
  • Max Swing Over Bed / Carriage 20" / 9.5"
  • Max Machining Length 20"
  • Spindle Motor 20 HP
  • Spindle Speed 3400 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 10
  • Rapid Traverse Rates 710 IPM
  • X-Axis Travel 8.45"
  • Z-Axis Travel 20"
  • Machine Dimensions (L x W x H) 148" x 62" x 72"
  • Machine Weight 9000 lbs.
  • Distance Between Centers 24"
  • Max Turning Diameter 10.3"
  • Spindle Torque 300 ft. lbs.
  • Tailstock Taper MT#4

Product Features

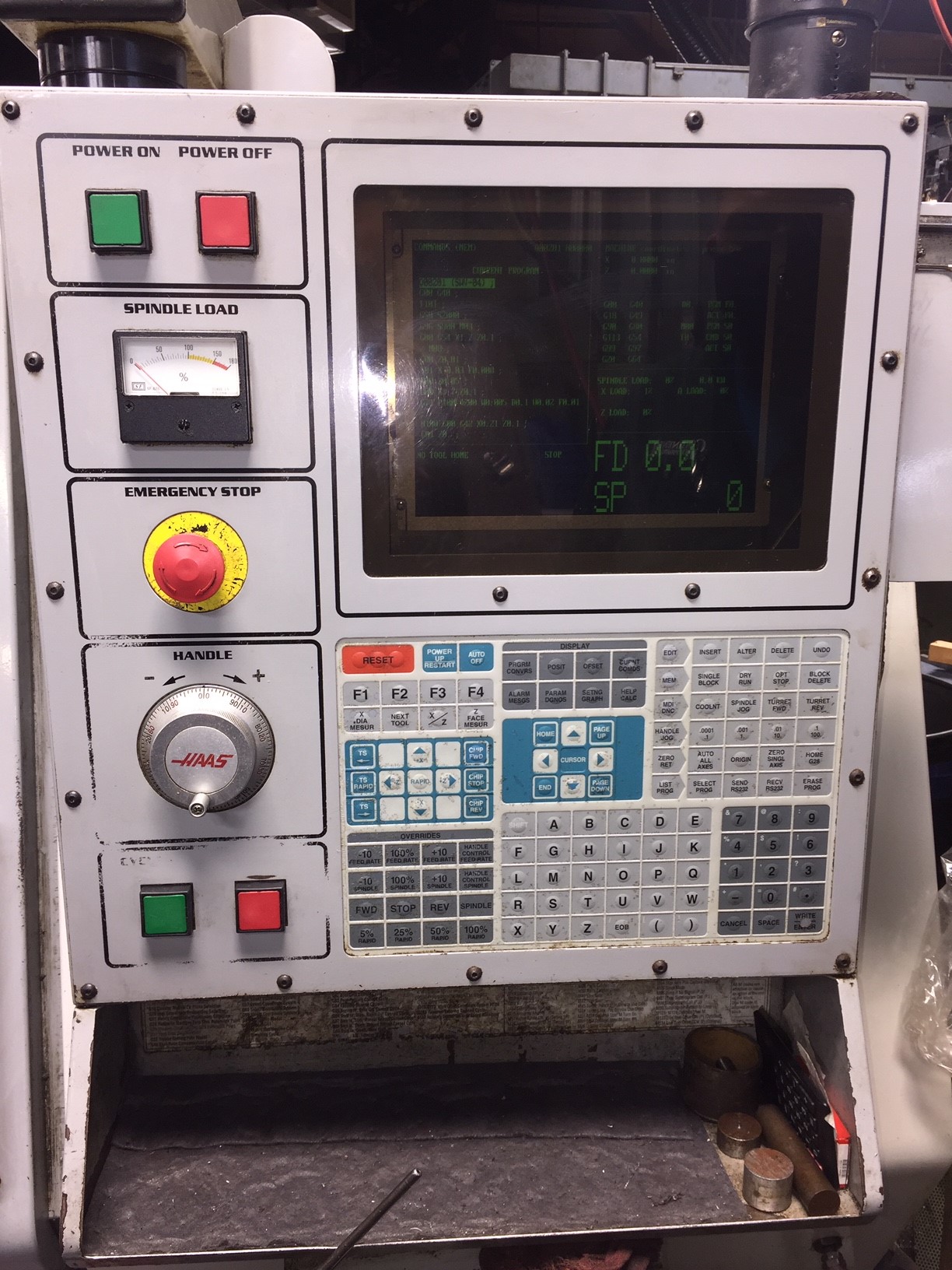

  • HAAS CNC CONTROL
  • 3.5" Floppy Disc Drive
  • 10" Hydraulic Chuck
  • Big Bore Spindle Option (2.5" Bar Capacity)
  • Fully Programmable Hydraulic Tailstock
  • Auto Parts Catcher
  • Tool Presetter
  • Visual Quick Code Programming
  • Spindle Orientation
  • Chip Auger
  • Green Work Indicator Light
  • Mfg Date December 2000
