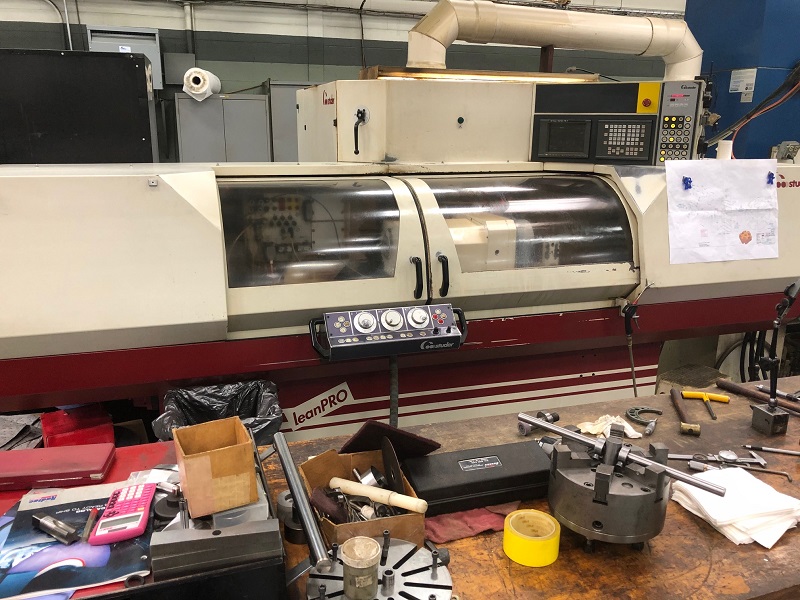

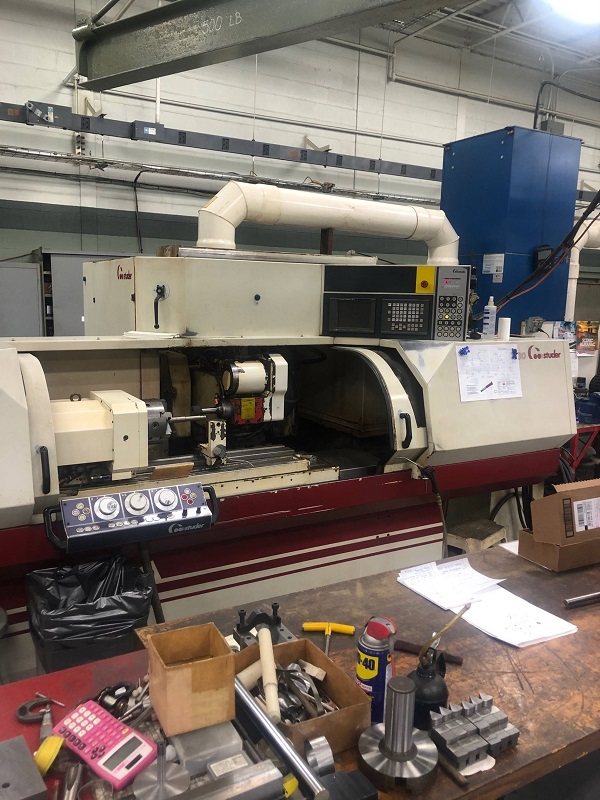

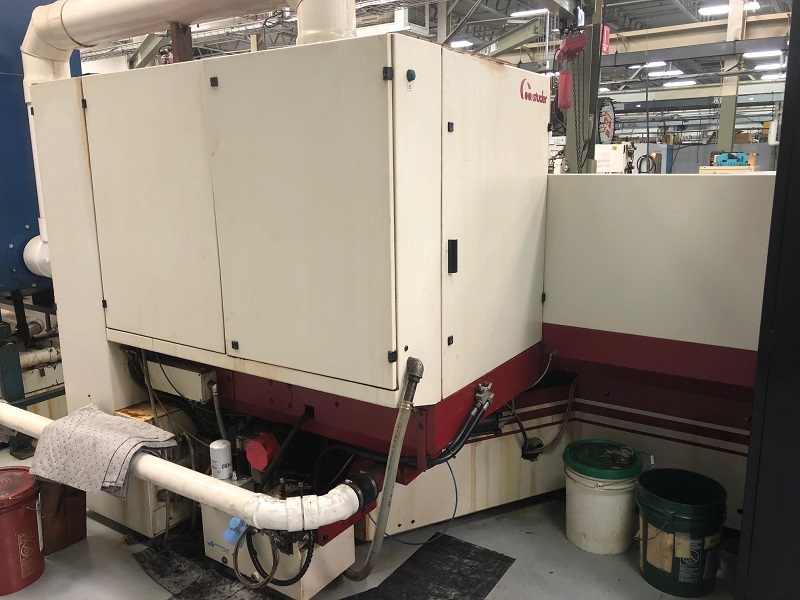

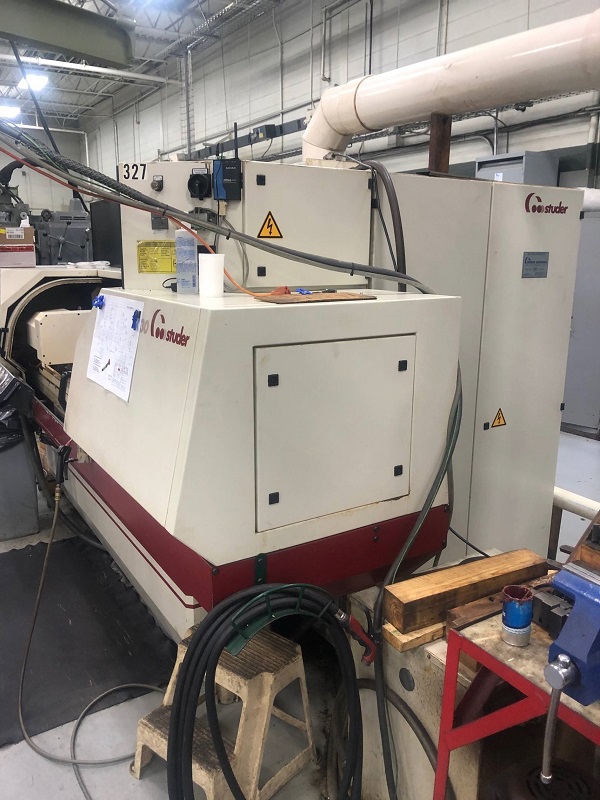

1999 STUDER S30 LEAN PRO CNC Cylindrical Grinder

FANUC 16T, 10.8" Swing, 39.4" Length, 10 HP, Three Wheel Configuration, ID Attachment, Tailstock, Probe, Coolant Filtration
Talk to a representative today!
(803) 548-8000

Product Details

  • B-Axis 0.001 Degrees
  • Center Height 6.875"
  • Distance Between Centers 39.4"
  • ID Spindle Diameter 4"
  • ID Spindle Speed 20,000 RPM
  • Left Grinding Wheel (D x W x B) 19.7" x 3.15" x 5"
  • Machine Dimensions (L x D x H) 146" x 85" x 90"
  • Machine Weight 11,220 lbs.
  • Max Swing 13.8"
  • Max Weight (Between Centers) 286 lbs.
  • Right Grinding Wheel (D x W x B) 15.75" x 1.6" x 5"
  • Spindle Diameter 3.94"
  • Spindle Motor 10 HP
  • Tailstock Quill Travel 1.37"
  • Tailstock Taper MT #3
  • Wheelhead Swivel Range 0.001 Degrees
  • X-Axis Travel 10.8"
  • Z-Axis Travel 41.4"

Product Features

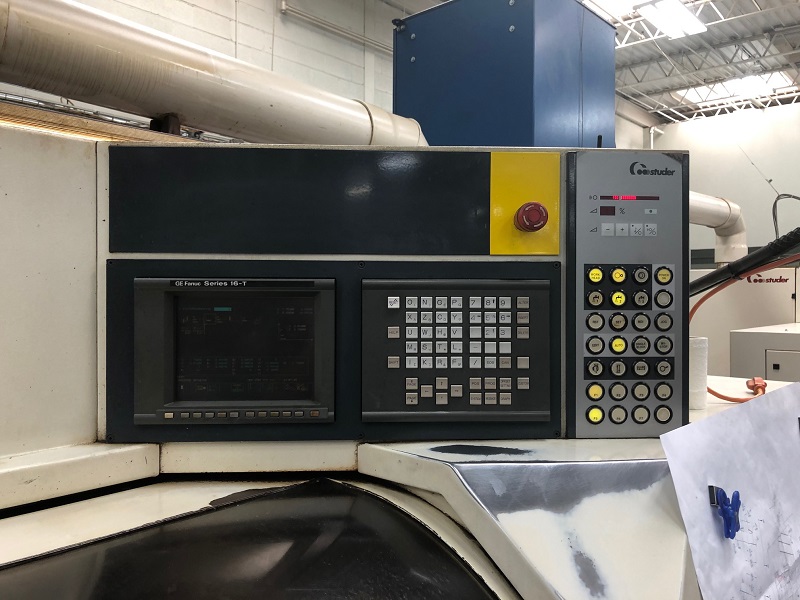

  • GE FANUC 16-T CNC Control
  • 9" Monochrome CRT

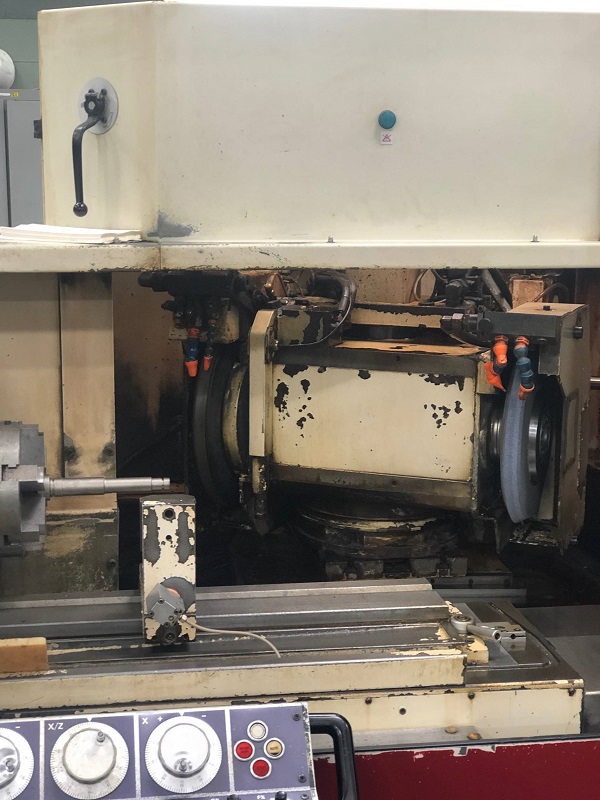

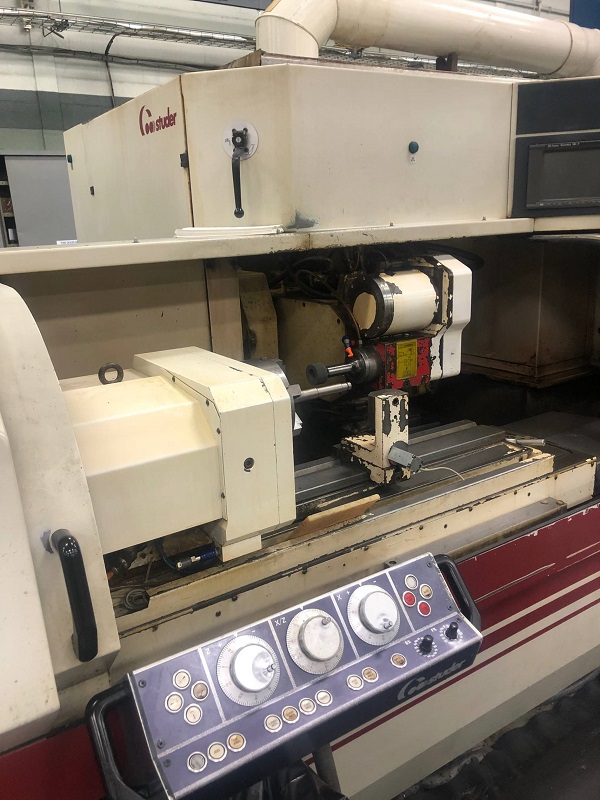

  • Three Wheel Configuration (Left, Right & ID Spindles)
  • Tailstock

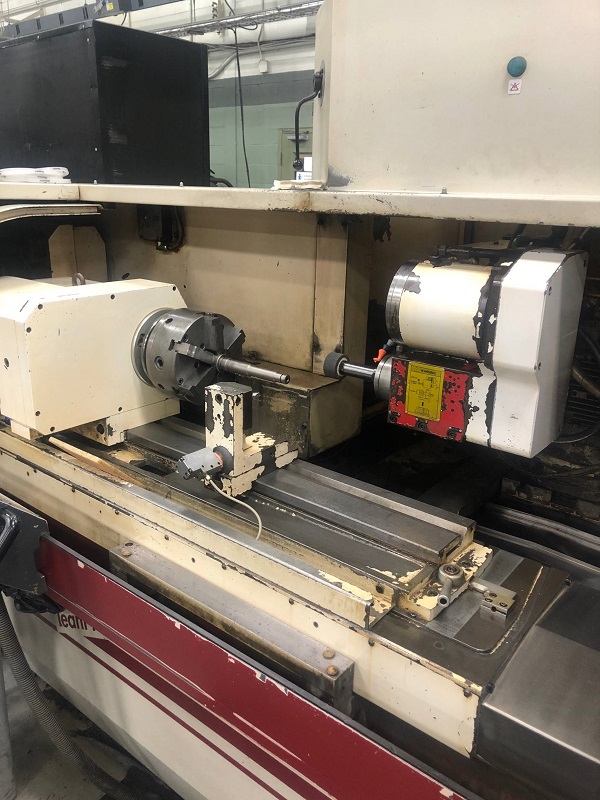

  • ID Grinding Attachment (20,000 RPM)

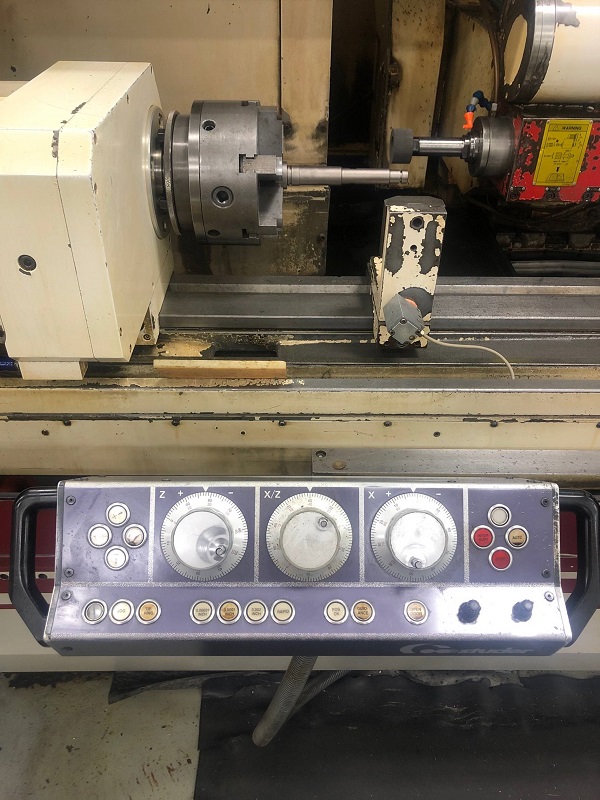

  • Hydraulic 6-Jaw Chuck on Main Spindle
  • B-Axis Wheelhead Automatic Index .001 Degrees
  • Length Position Probe
  • Paper Band Coolant Filtration System
  • Mist Collector
  • Full Enclosure
