1999 MORI SEIKI CL-20B

Fanuc 18T, 2.5" Bar, 8" Chuck, 15 HP, 3500 RPM, 10 Tools, Chip Conveyor, Tool Presetter
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.56"
  • Max Swing Over Bed / Carriage 18.50" / 14.96"
  • Max Machining Length 13"
  • Spindle Motor 15 / 10 HP AC
  • Spindle Speed 35 - 3500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.87"
  • Tools 10
  • Rapid Traverse Rates (X / Z) 590 / 787 IPM
  • X-Axis Travel 7.48"
  • Z-Axis Travel 14.57"
  • Turret Index (Single Step) 0.6 Seconds
  • Machine Dimensions (L x W x H) 60.83" x 64.3" x 62.9"
  • Machine Weight 5500 lbs.
  • Max Turning Diameter 10.2"

Product Features

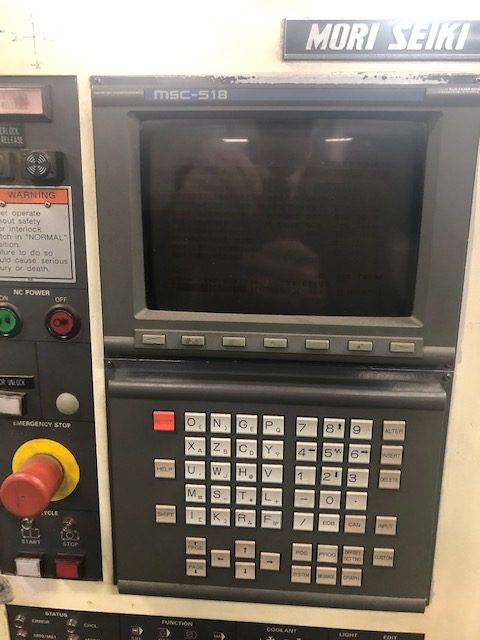

  • MORIC MSC-518 (Fanuc 18T) CNC CONTROL
  • 9" Monochrome CRT
  • 8" Hydraulic Chuck
  • Manual Tool Presetter (Removable)
  • Chucker (No Tailstock)
  • Turbo Chip Conveyor (Side Exit)
  • Heavy Duty Box Way Construction
  • Manufacture Date May 1998
  • Installed in January 1999
