< Back to Vertical M/C
Special Item

1999 HAAS VF-9/50

84.40.30", 5000 RPM, Cat 50, 30 HP, 20 Tools, Fourth Axis Interface, Programmable Coolant, Quick Code, Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 84"
  • Y-Axis 40"
  • Z-Axis 30"

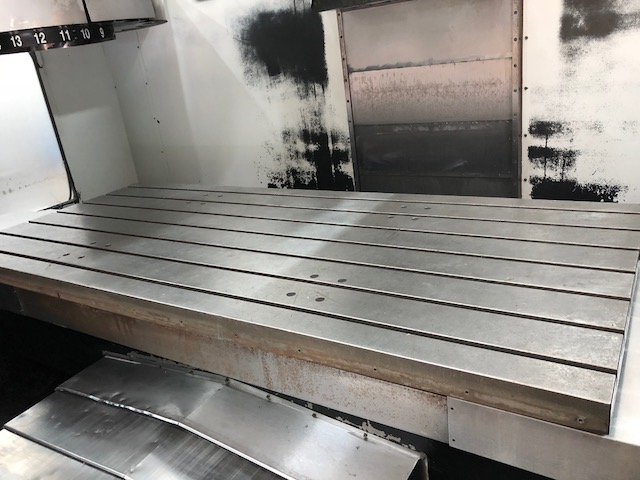

  • Table Size 84" x 36"
  • Spindle Speed 5000 RPM
  • Spindle Taper CAT 50
  • Spindle Motor 30 HP AC
  • Tools 20
  • Table Load Capacity 4000 lbs.
  • Max Tool Weight 30 lbs.
  • Machine Weight 26,000 lbs.
  • Spindle Nose to Table Top 4" - 34"

Product Features

  • HAAS CNC Control

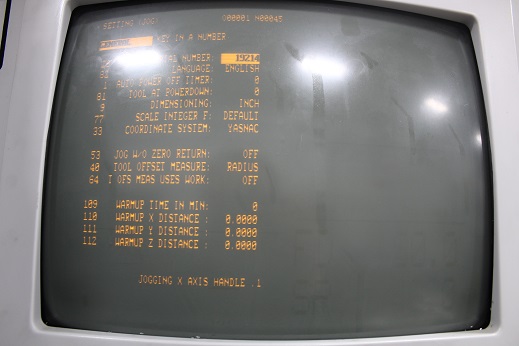

  • 9" Monochrome CRT
  • (1) MB Memory
  • 3.5" Floppy Disc Drive
  • Chip Auger
  • Programmable Coolant Nozzle
  • Quick Code Programming
  • Fourth Axis Interface (Brush Type)
  • Coordinate Rotation & Scaling
  • Remote Jog Handle
  • Home Button for User Defined Second Home Position
  • AC Brushless Servos
  • Two Color Tower Light
  • 12,236 Servo Time
  • 21,373 Motion Time
  • 17,446 Spindle Time
