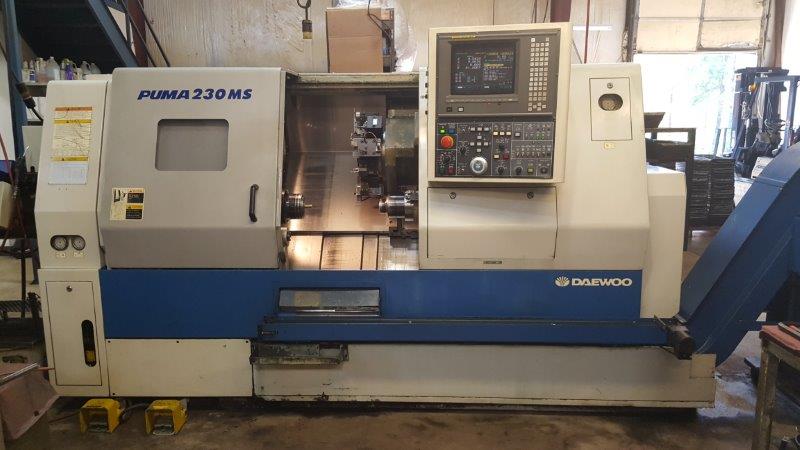

1999 DAEWOO PUMA 230MSC

Fanuc 18T, 3.0" Bar, Collet & 3-Jaw Chucks, C-Axis Milling, 12 Tools, Tool Presetter, APC, Sub Spindle, Barfeed, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 2.58"
  • Max Diameter Bar Capacity 3"
  • Max Swing Over Bed / Carriage 21.7" / 15.4"
  • Spindle Motor 20 / 15 HP AC
  • Spindle Speed 45 - 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.54"
  • Tools 12
  • Milling Motor 5 HP
  • Milling Speed 6000 RPM
  • Sub Spindle Motor 7.5 HP
  • Sub Spindle Speed 60 - 6000 RPM
  • Sub Spindle Travel 18.9"
  • Rapid Traverse Rates (X / Z) 945 / 1200 IPM
  • X-Axis Travel 8.66"
  • Z-Axis Travel 22.8"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step) 0.1 Seconds
  • Machine Dimensions (L x W x H) 130" x 67" x 74"
  • Machine Weight 9569 LBS
  • Max Turning Diameter 11.81"
  • Max Turning Length 19.3"
  • Spindle Torque 188 ft. lbs.

Product Features

  • FANUC 18T CNC CONTROL
  • 10.4" Color LCD
  • C-Axis Milling
  • Sub Spindle

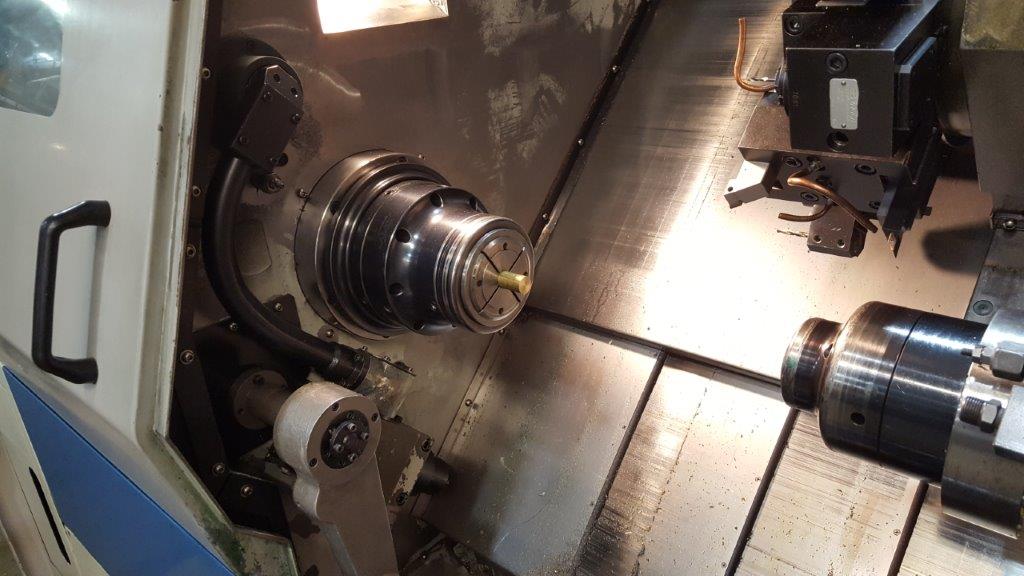

  • S26 ATS True Length Collet Chuck on Main Spindle
  • 3J ATS True Length Collet Chuck on Sub Spindle
  • Kitagawa BB08 8" 3-Jaw Hydraulic Chuck for Main Spindle
  • Kitagawa HS05 5" 3-Jaw Hydraulic Chuck for Sub Spindle
  • Auto Tool Presetter
  • Auto Parts Catcher
  • Parts Conveyor
  • Pneumatic Parts Ejector with Through Coolant
  • (3) OD Live Tool Holders
  • (2) Face Live Tool Holders
  • (1) Double Sided Face Live Holder
  • (2) 3/4" Double Boring Bar Holders
  • (2) 1.5" Boring Bar Holders

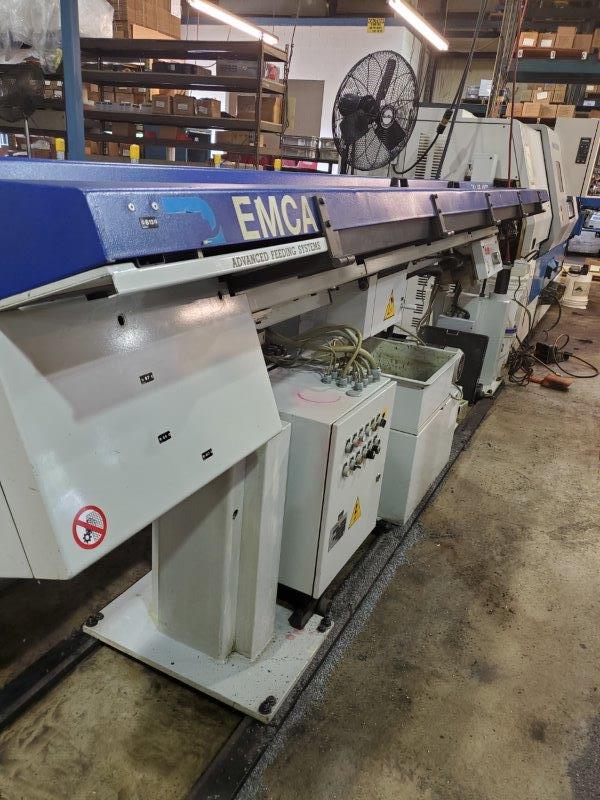

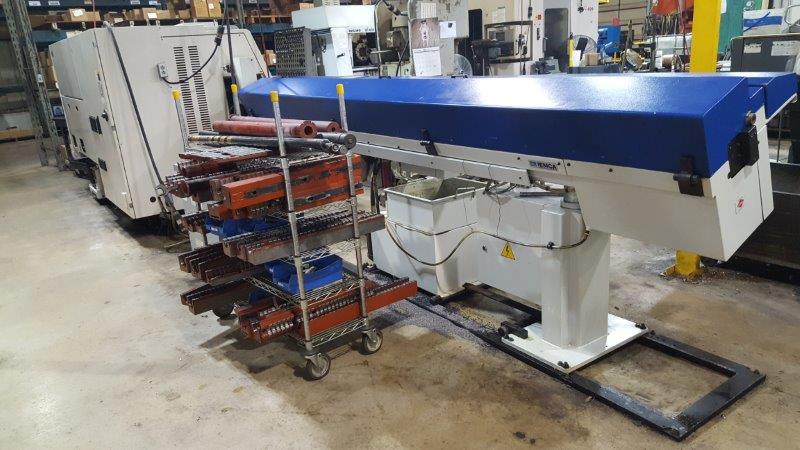

  • Iemca TAL 65/38 12' Barfeed
  • PC/MCIA Interface
  • Programmable Tailstock Body & Quill
  • Turbo Chip Conveyor (Side Exit)
  • 45 KVA Transformer
