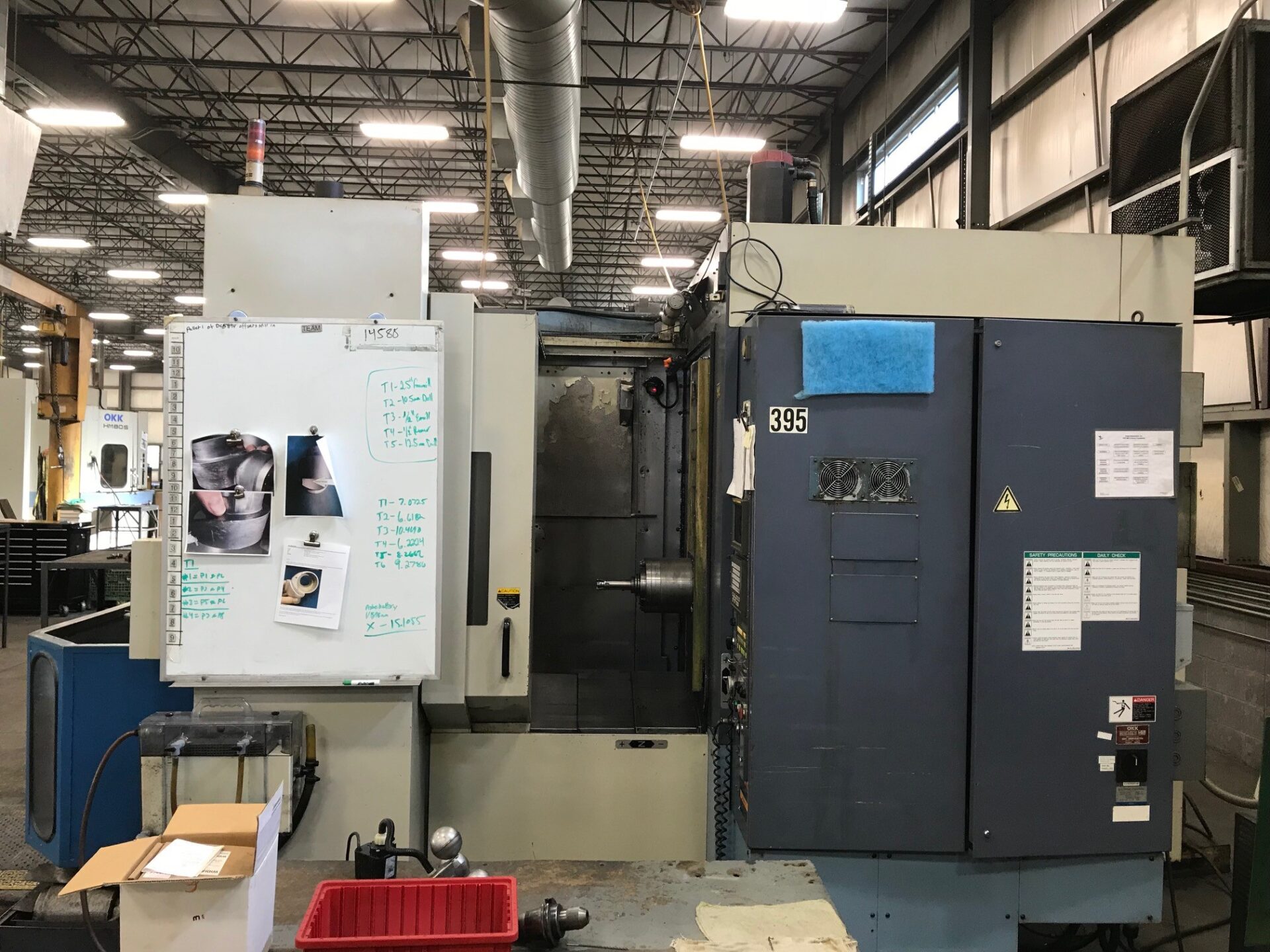

1998 OKK HM60

FANUC 16M, 23.62" Pallets, Fourth Axis, 12,000 RPM, 40 Tools, TSC, Probes, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 6 Seconds
  • Pallet Size 23.62" (2)
  • X-Axis Travel 29.92"
  • Y-Axis Travel 28.74"
  • Z-Axis Travel 31.49"
  • Pallet Index 1 Degree
  • Spindle Speed 12,000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor 30 HP
  • Tools 40
  • Rapid Traverse Rates (X Y Z) 1575 IPM
  • Max Pallet Load 1543 lbs.
  • Machine Dimensions (L x W x H) 120" x 169" x 123"
  • Machine Weight 30,000
  • Number of Pallets 2

Product Features

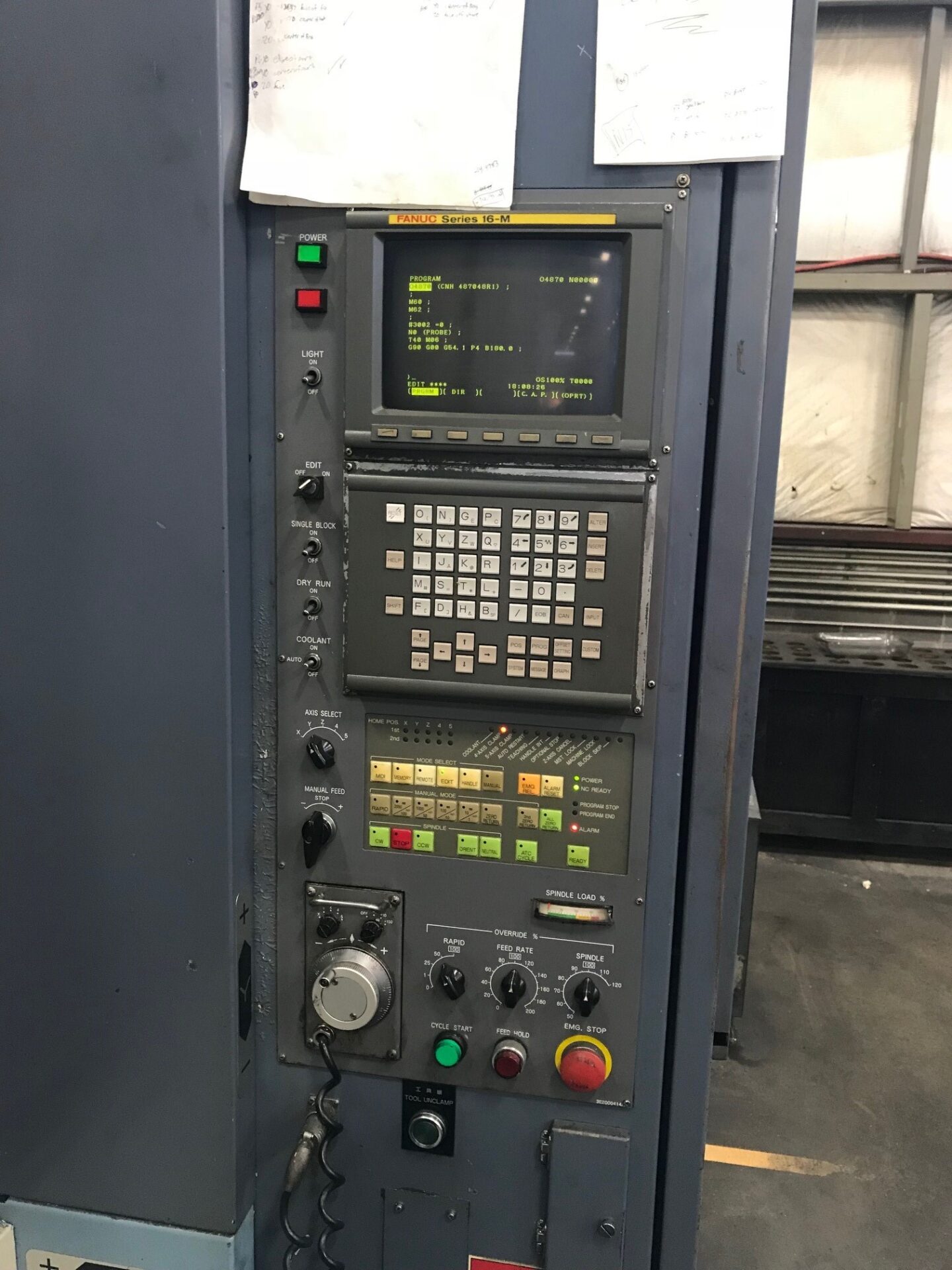

  • FANUC 16M CNC Control
  • Fourth Axis Rotary Table (1 Degree)
  • 12,000 RPM Spindle
  • High Pressure Through Spindle Coolant (1000 PSI)
  • 40 Tool Magazine
  • Renishaw Touch Probe System
  • Chip Conveyor
  • Coolant Filtration and Recirculation System
  • Installed 1998
  • Manufactured 1997
