Special Item

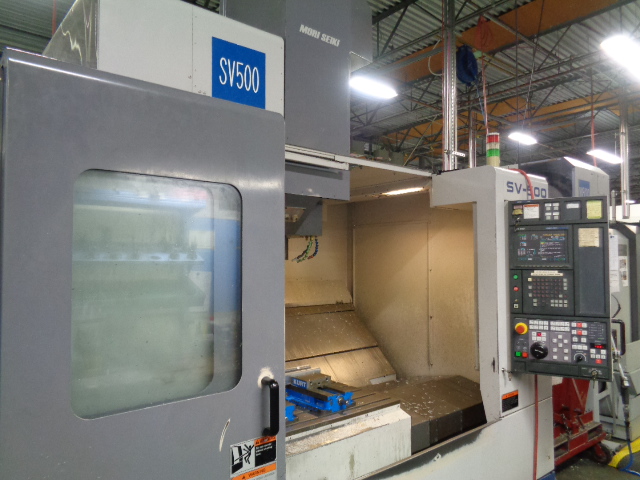

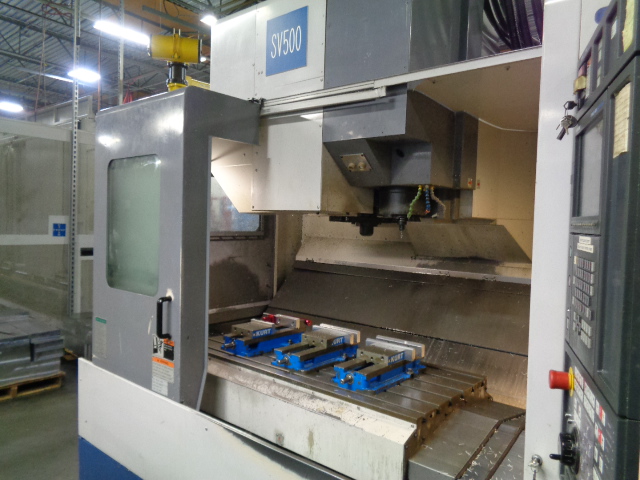

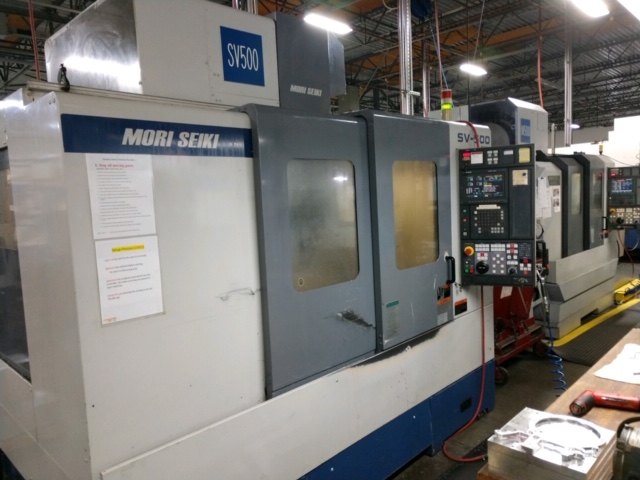

1998 MORI SEIKI SV-500B/40

Fanuc 18iM, 40.20.20", 10000 RPM, Cat 40, 30 HP, 30 Tools, TSC, Rigid Tapping
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40.2"
  • Y-Axis 20.1"
  • Z-Axis 20.1"
  • Spindle Taper CAT 40
  • Spindle Motor 30 / 24.7 HP

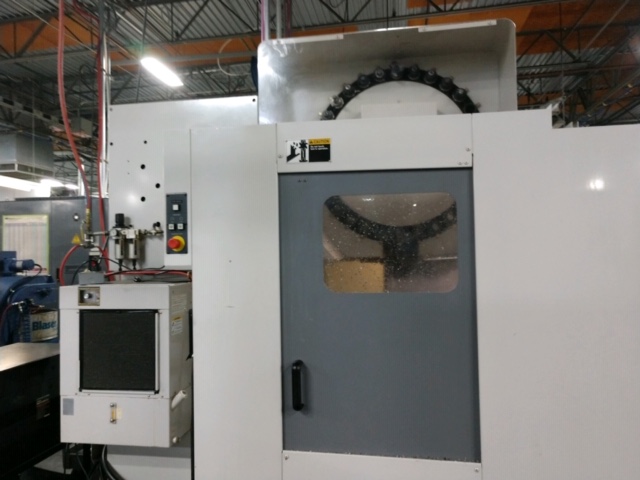

  • Tools 30

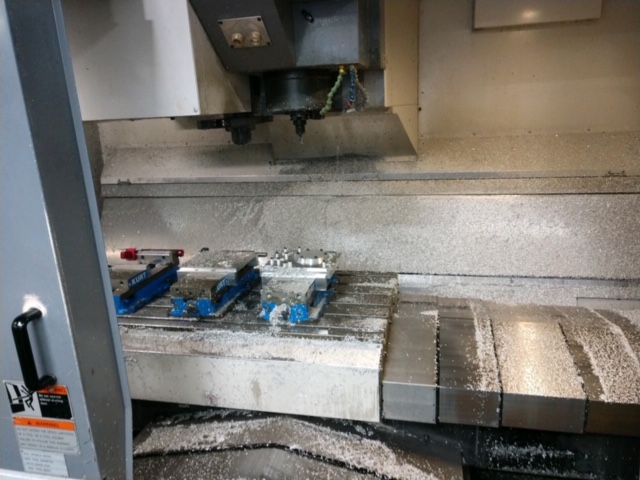

  • Table Load Capacity 2640 lbs.
  • Rapid Traverse Rates 1259 IPM
  • Max Tool Diameter 4.7" / 9.4"
  • Max Tool Length 13.8"
  • Max Tool Weight 26.4 lbs.
  • Machine Dimensions (L x W x H) 113.6" x 108.9" x 118.9"
  • Machine Weight 19,620 lbs.
  • Spindle Nose to Table Top 5.9" - 26"
  • Spindle Torque 173.8 ft. lbs.
  • Tool Change Time (T - T / C - C) 2.0 / 6.3 Seconds

Product Features

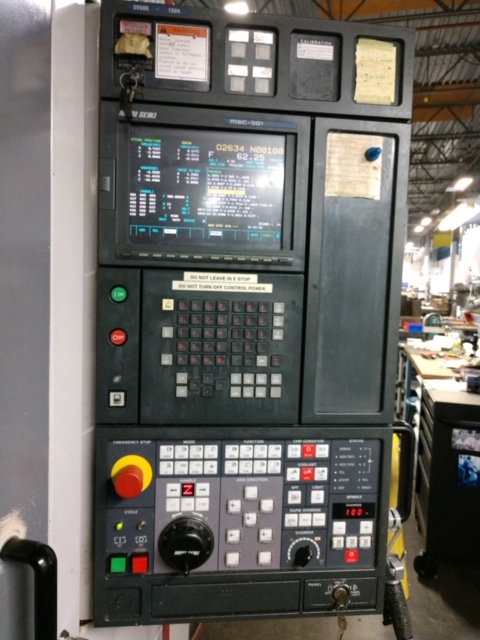

  • MORIC MSC-501 (FANUC 18iM) CNC Control
  • 10.4" Color LCD
  • Through Spindle Coolant Interface (DIN-Style)
  • Rigid Tapping
  • Helical Interpolation
  • Optional 40" X-Axis Travel
  • Manufacture Date June 1998
  • 51,513 Power On Time
  • 7721 Operating Time
  • 16,001 Cutting Time
