Special Item

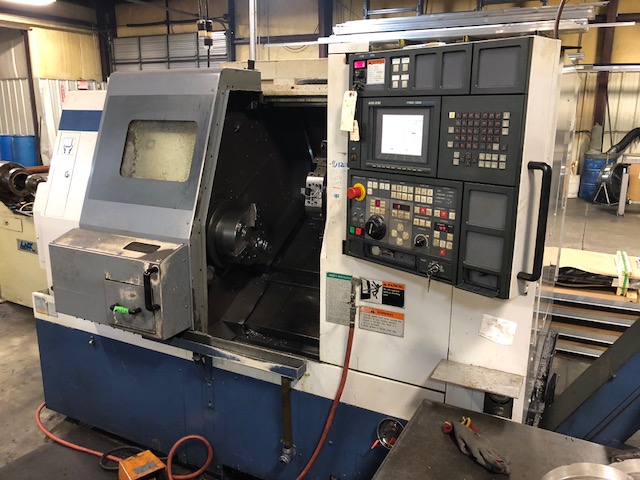

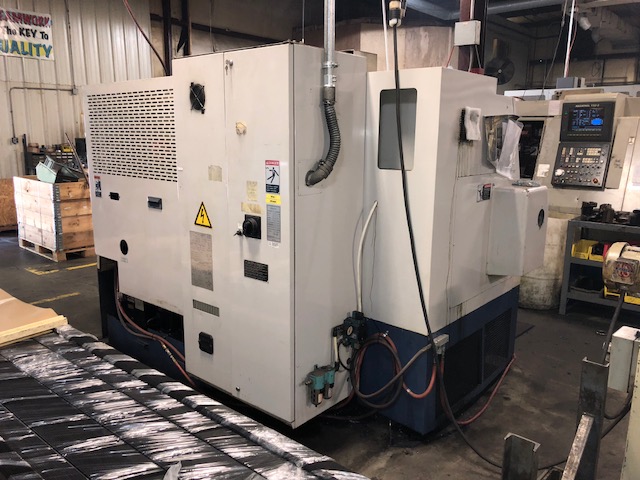

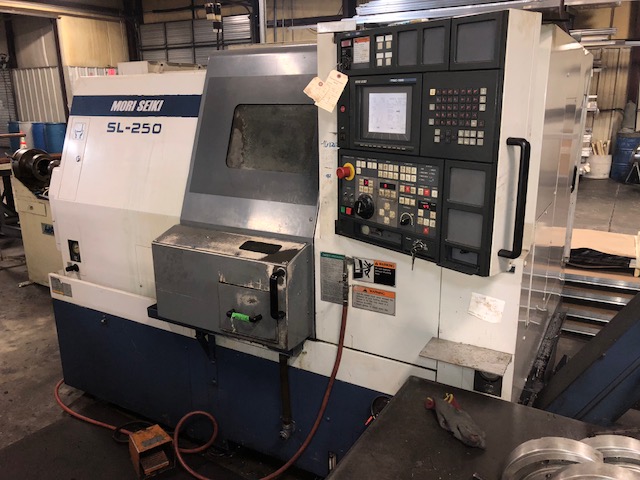

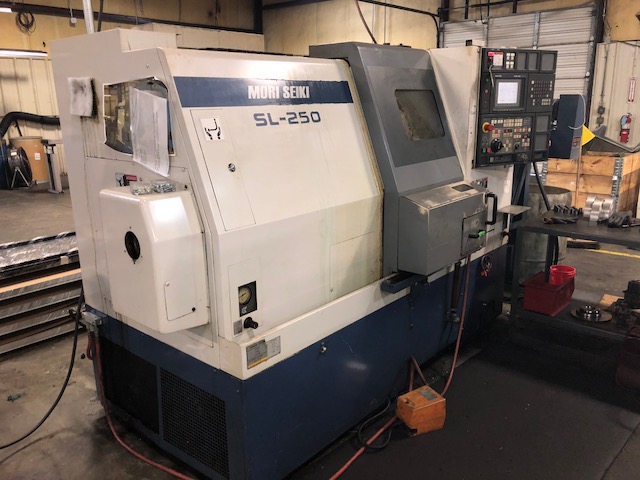

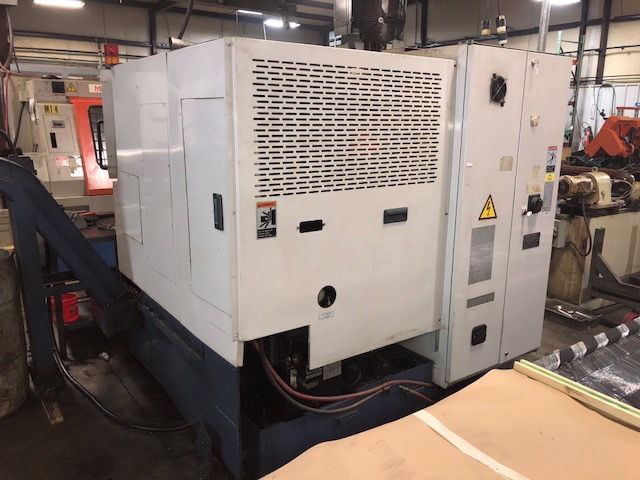

1998 MORI SEIKI SL-250B/500

FANUC 21i-TA, 2.75" Bar, 10" Chuck, 3500 RPM, 10 Tools, 20 HP, Tool Presetter, Chip Conveyor, Tailstock, Slant Bed Box Ways
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.75"
  • Max Swing Over Bed / Carriage 26.7" / 20.1"
  • Max Machining Length 19.1"
  • Spindle Speed 35 - 3500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.15"
  • Tools 10
  • Rapid Traverse Rates (X / Z) 708 / 944 IPM
  • X-Axis Travel 9.3"
  • Z-Axis Travel 20.5"
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Weight 9900 lbs.
  • Main Motor 20 / 15 HP AC

Product Features

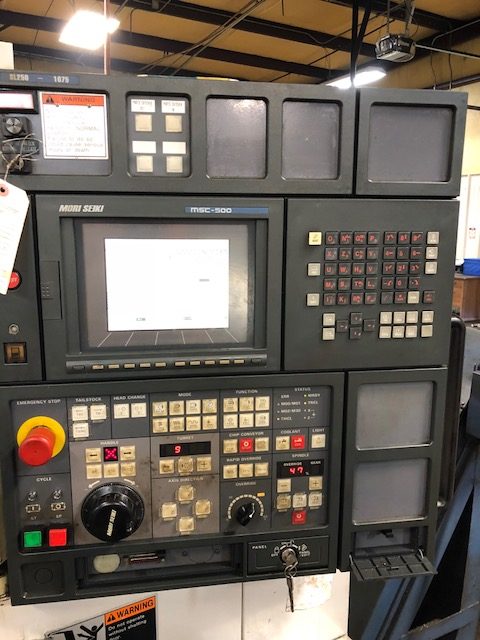

  • MORIC MSC-500 (Fanuc 21i-TA) CNC Control
  • 10.4" Monochrome LCD
  • PC/MCIA Interface

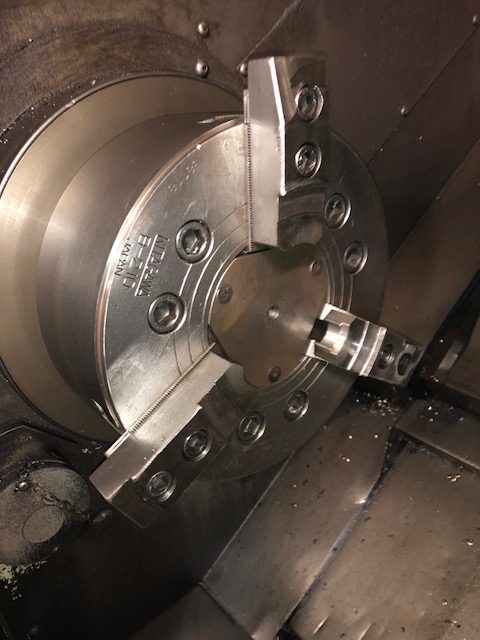

  • 10" Kitagawa B210 Hydraulic Chuck

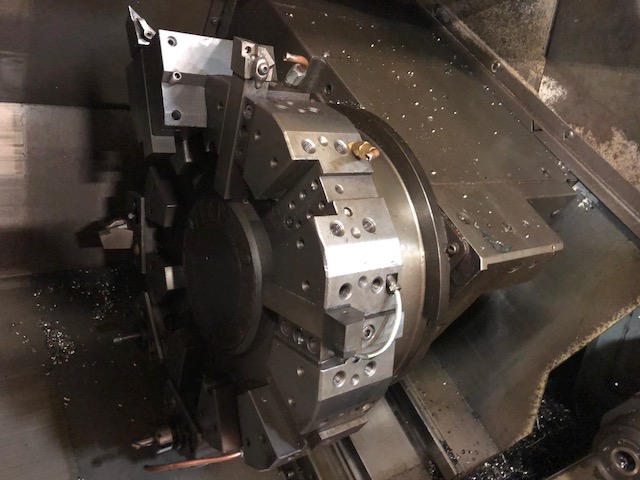

  • Servo Driven Turret
  • Tool Presetter (Removable)

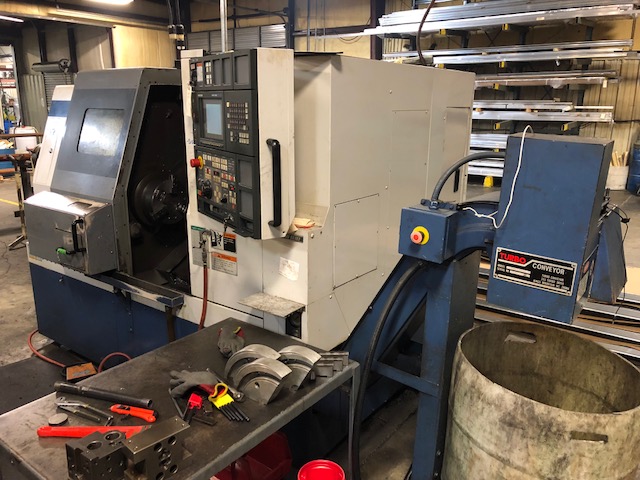

  • Turbo Chip Conveyor (Side Exit)
  • Tow-Along Tailstock
  • (4) Boring Bar Holders
  • (3) Facing Holders
  • (3) OD Wedge Blocks
  • Manufacture Date October 1998
  • 20,350 Power On Time
  • 6868 Cutting Time
