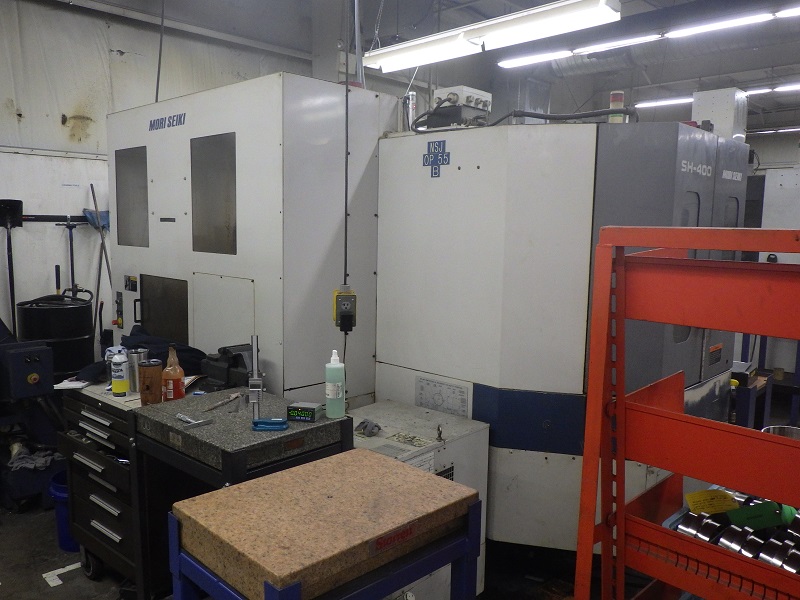

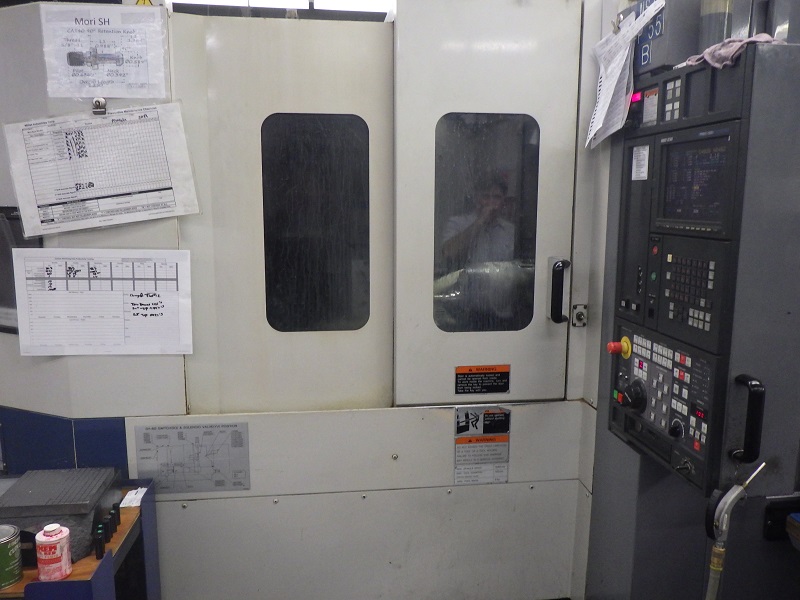

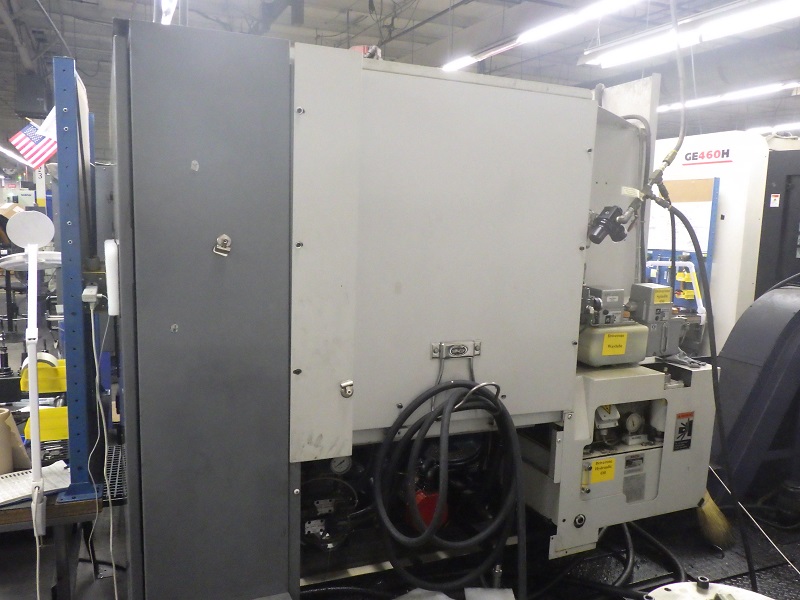

1998 MORI SEIKI SH-400

Fanuc 18iM, 15.7" Pallets, 22.20.20", 1 Degree, 12000 RPM, Cat 40, 30 HP, 40 Tools, TSC 1000 psi, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

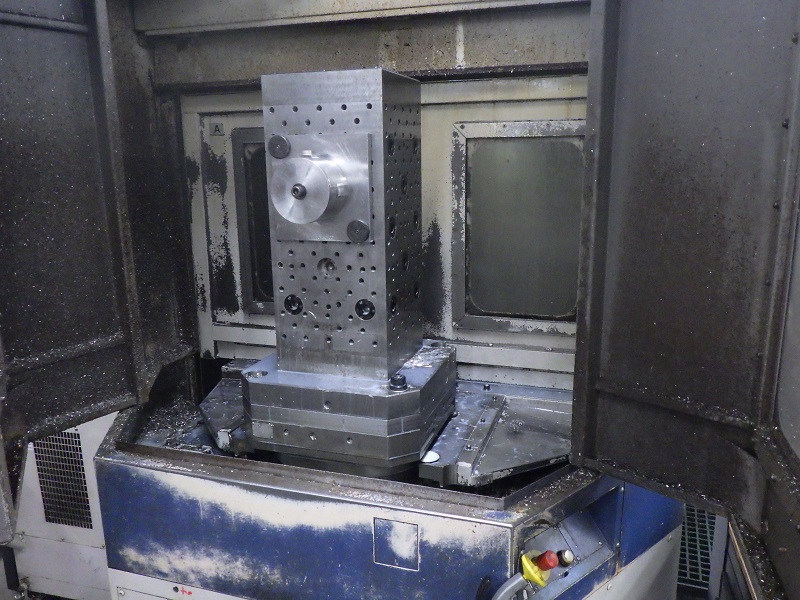

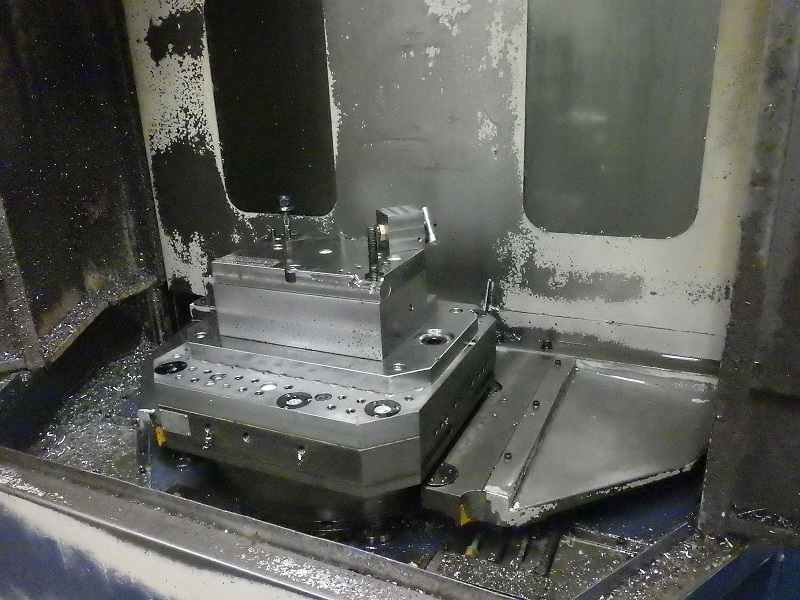

  • Pallet Change Time 2.5 Seconds
  • Pallet Load Capacity 1100 lbs.
  • Pallet Size 15.7" (2)
  • X-Axis 22.0"
  • Y-Axis 20.1"
  • Z-Axis 20.1"
  • Pallet Index 1 Degree

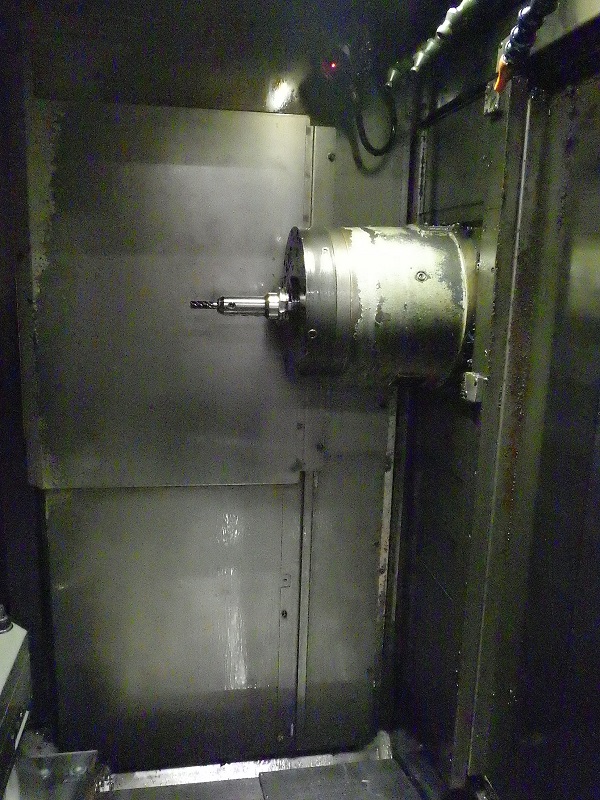

  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 / 24.8 HP
  • Spindle Center to Table Top 2" - 22"
  • Spindle Nose to Table Center 3.9" - 24"
  • Tools 40
  • Rapid Traverse Rates 1260 IPM
  • Tool Change Time (T - T / C - C) 1.5 / 3.7 Seconds
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 26.4 lbs.
  • Machine Dimensions (L x W x H) 112.6" x 160.2" x 99.1"
  • Machine Weight 19,000
  • Spindle Torque 123 ft. lbs.

Product Features

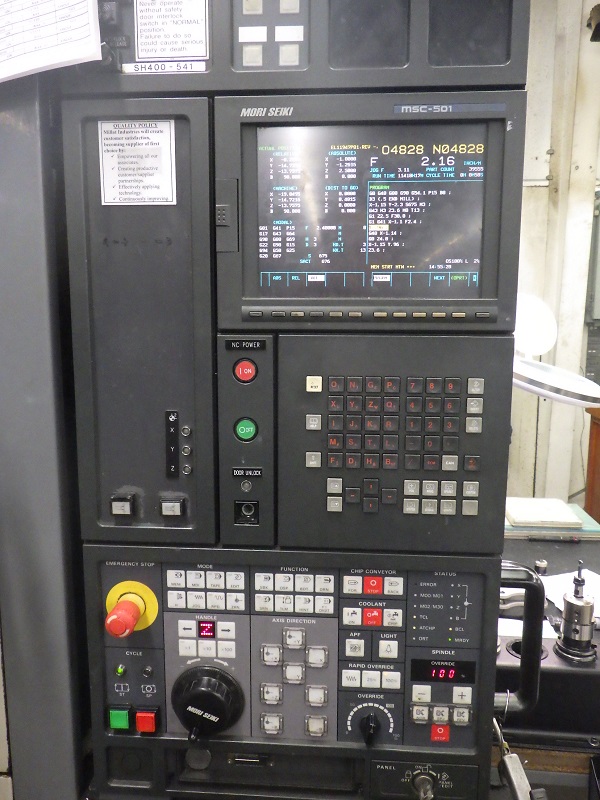

  • MORI MSC-501 (Fanuc 18iM) CNC Control
  • 10.4" Color CRT
  • PC/MCIA Interface
  • Rigid Tapping
  • Helical Interpolation
  • Through Spindle Coolant (ChipBlaster 1000 psi)
  • Spindle Chiller Unit
  • Shower Coolant
  • Dual Chip Augers
  • Turbo Chip Conveyor (Rear Left Exit)
  • Integral Hydraulic Coupling for Fixturing
