1998 MAZAK SUPER QUICK TURN 200MSY

Fusion 640T, 2" Bar, 8" Chk, 11.8" Max Dia, 21" Length, 25HP, 5000 RPM, C & Y-Axis Milling, Main & Sub Spindle, Collet Chk, TE, Tail, APC
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20.67" / 13.80"
  • Max Machining Length 21.1"
  • Spindle Motor 25 / 20 HP AC
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.44"
  • Tools 12 (All Live)
  • Milling Motor 5 HP AC
  • Milling Speed 6000 RPM
  • Rapid Traverse Rates (X & Z / Y) 1181 / 472 IPM
  • X-Axis Travel 7.125"
  • Z-Axis Travel 22.75"
  • Y-Axis Travel + / - 2.00"
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 117" x 66.8" x 76.5"
  • Machine Weight 12,760 lbs.
  • Distance Between Spindles 22.7"
  • Max Turning Diameter 11.8"
  • Spindle Torque 259 ft. lbs.
  • Tailstock Taper MT#5

Product Features

  • Mazatrol Fusion 640T CNC Control
  • C & Y-Axis Milling

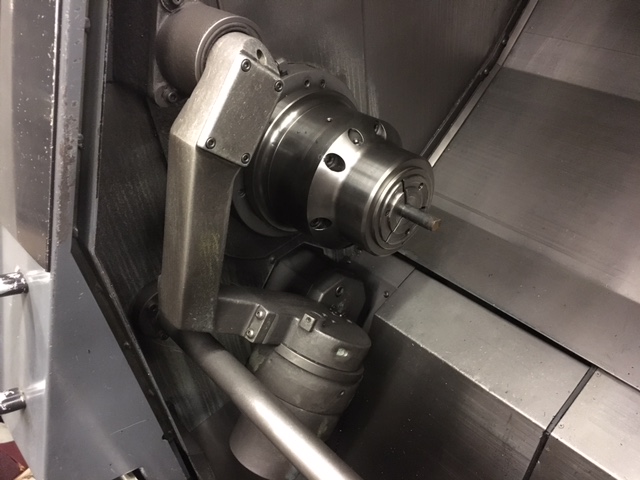

  • Sub Spindle

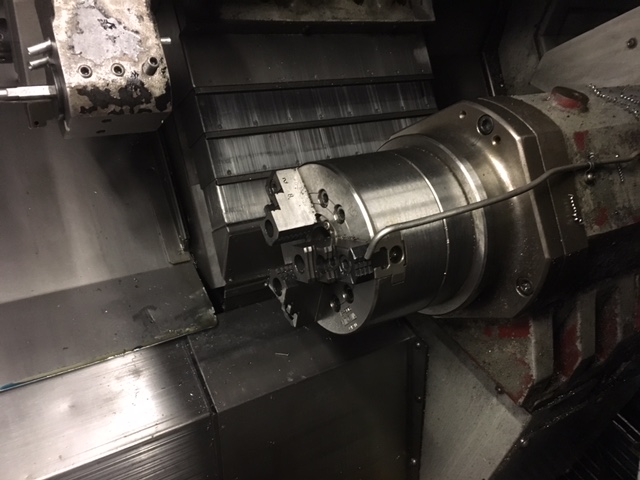

  • Collet Chuck
  • 6" Chuck on Sub Spindle
  • Auto Parts Catcher
  • Automatic Tool Eye Measurement
  • Coolant System
  • EIA / ISO
  • RS232C
  • 3.5" Floppy
  • PCMCIA Interface
  • Chip Conveyor

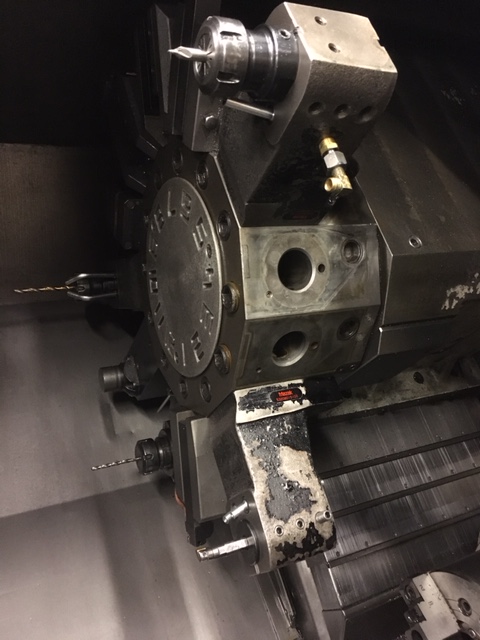

  • 3 OD Live Holders
  • 3 Face Live Holders

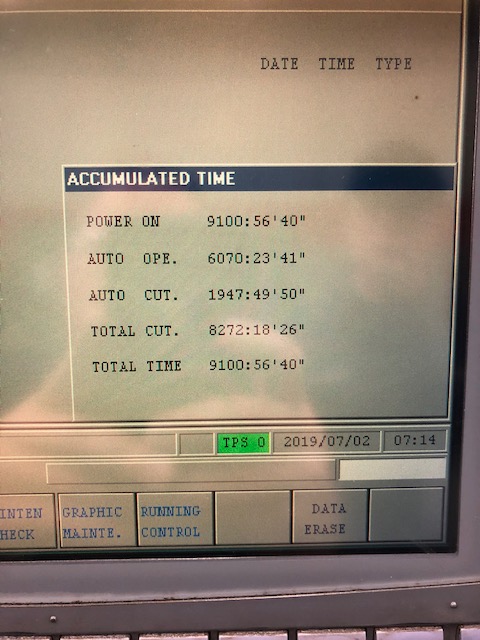

  • 9100 Power On Hours
  • 6070 Auto Operation Hours
  • 1947 Auto Cut Hours
  • 8272 Total Cut Hours
  • 9100 Total Time
