< Back to Lathes
Special Item

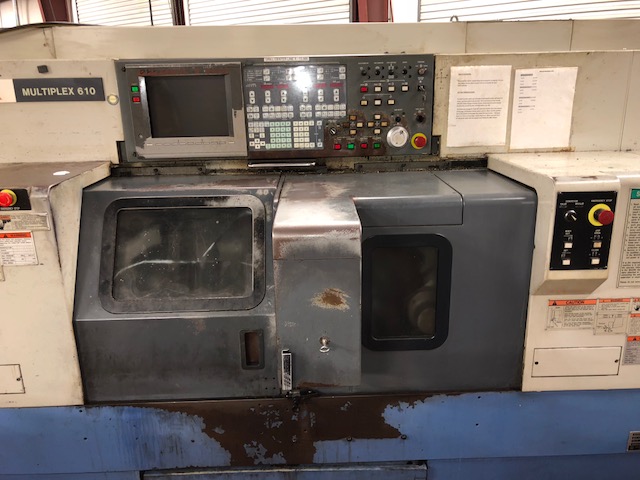

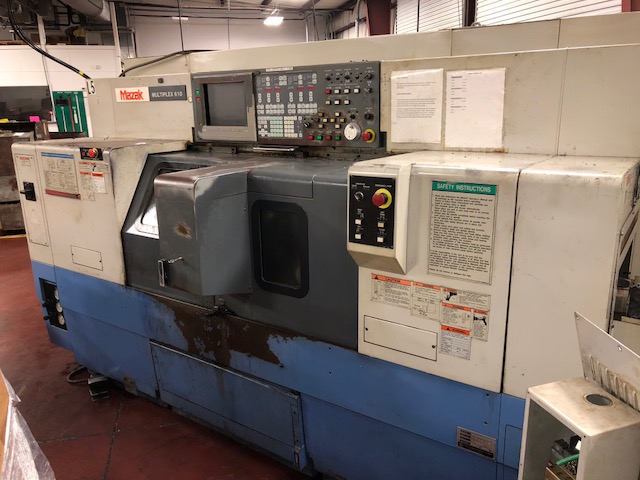

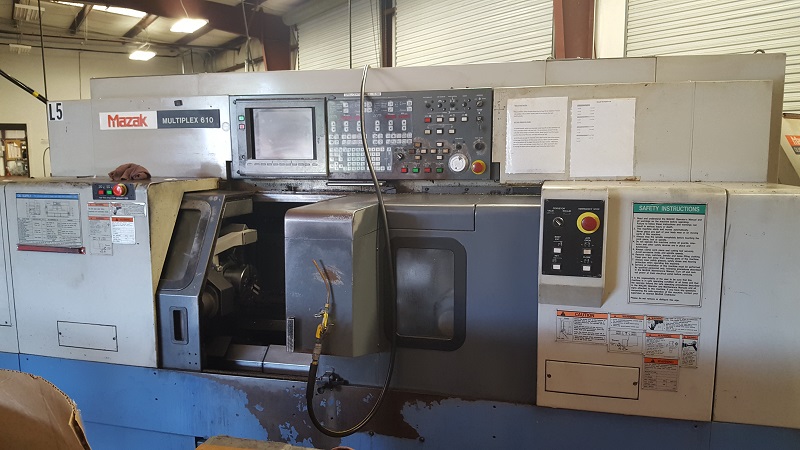

1998 MAZAK MULTIPLEX 610

Mazatrol T-PLUS, 1.65" Bar, 6" Chucks, 15 HP, 5000 RPM, Twin Opposed Spindles with Twin Upper Turrets, Live Tooling, Unload Hand, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6"
  • Max Diameter Bar Capacity 1.65"
  • Max Swing Over Bed 13.78"
  • Spindle Motor 15 / 10 HP AC
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.04"
  • Tools 12 / 12
  • Milling Motor 3 HP AC
  • Milling Speed 120 - 3000 RPM
  • X-Axis Travel (L & R) 7.87"
  • Z-Axis Travel (L / R) 14.37" / 16.54"
  • C-Axis Index 0.001 Degree
  • Turret Index (Single Step / Full) 0.4 / 1.2 Seconds
  • Machine Dimensions (L x W) 205.2" x 142.5" x 105.9"
  • Machine Weight 15,000 lbs.
  • Distance Between Spindles 40.55"

Product Features

  • MAZATROL T-PLUS CNC Control
  • 14" Color CRT

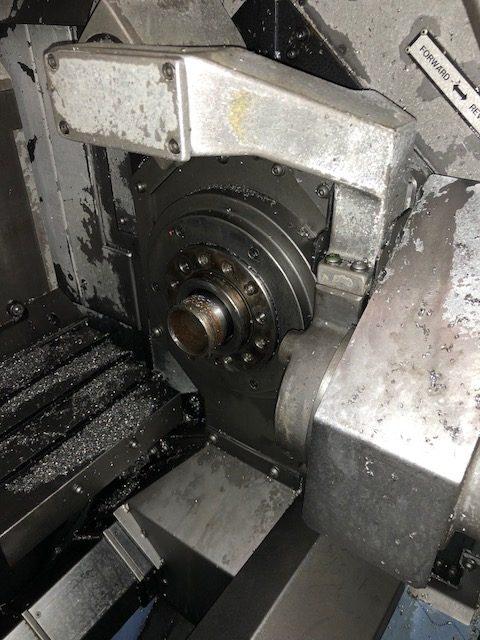

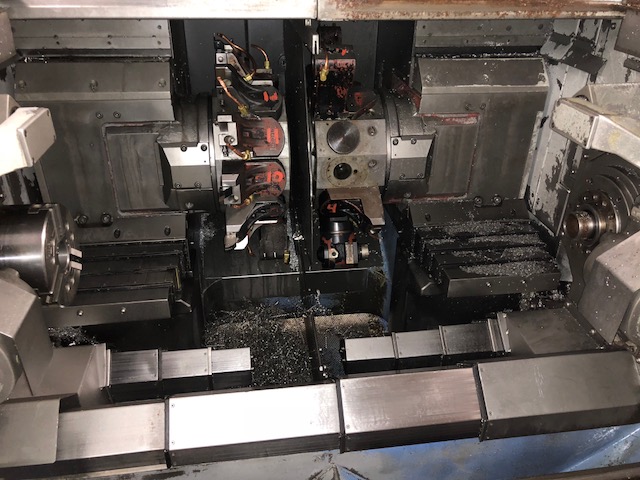

  • Twin Opposed Spindles with Twin Upper Turrets
  • C-Axis Milling Capability

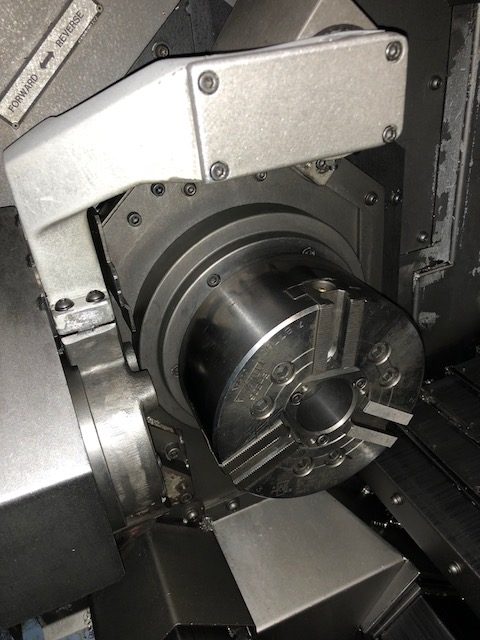

  • (2) 6" Kitagawa B206 Hydraulic Chucks

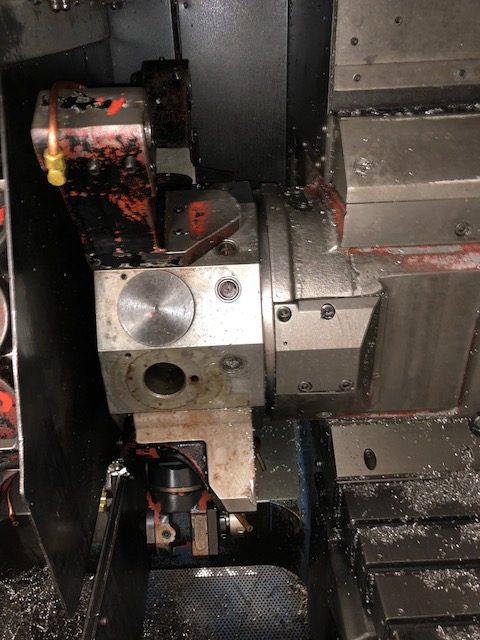

  • (2) 12 Positions Turrets
  • Unload Hand for Right Spindle
  • Chip Conveyor (Rear Exit)

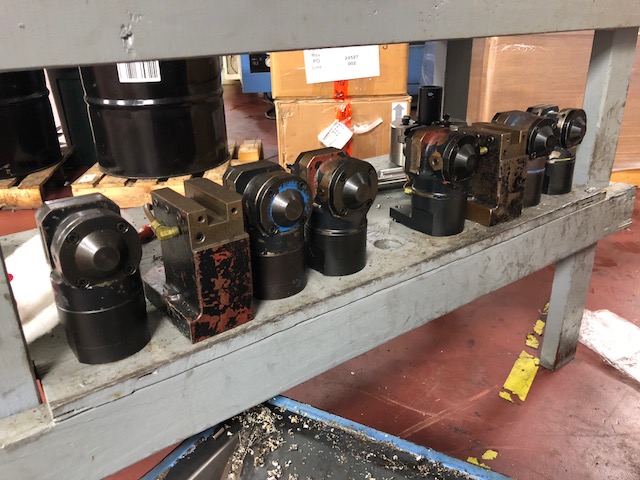

  • (7) Face Live Holders
  • (2) OD Live Holders
  • (7) Turning Holders
  • (6) Boring Bar Holders
  • (2) Facing Holders
  • Manufacture Date January 1998
