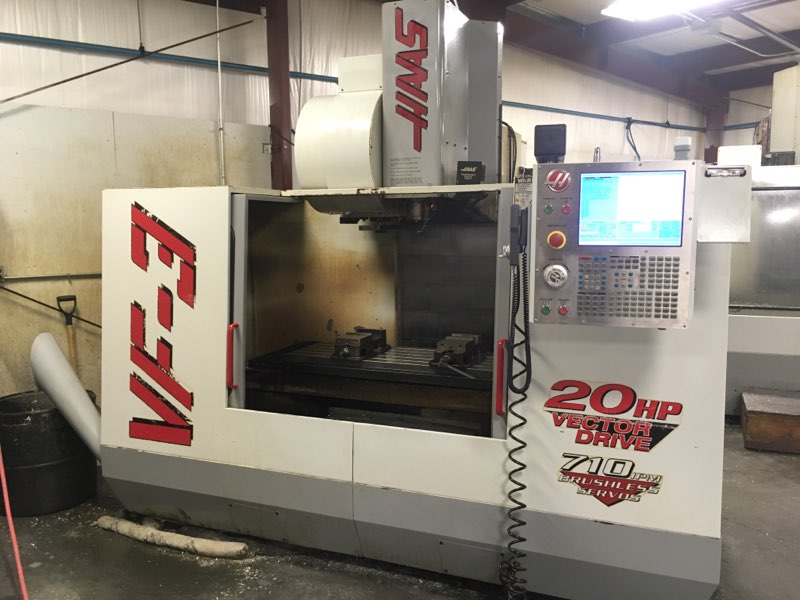

1998 HAAS VF-3

40.20.25", 7500 RPM, Cat 40, 20HP, 20 Tools, P-Cool, Quick Code, Chip Auger
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40"
  • Y-Axis 20"
  • Z-Axis 25"
  • Table Size 48" x 18"
  • Spindle Speed 0 - 7500 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 HP
  • Tools 20
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates 710 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Length 13"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 118" x 110" x 119.5"
  • Machine Weight 12,500 lbs.
  • Spindle Nose to Table Top 4" - 29"
  • Spindle Torque 250 ft. lbs.
  • Tool Change Time (T - T / C - C) 4.2 / 4.5 Seconds

Product Features

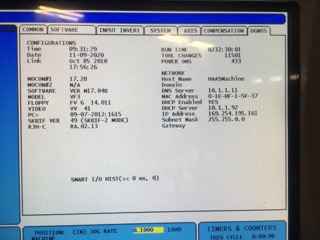

  • Updated (2018) HAAS CNC CONTROL
  • 15" LCD
  • 7500 RPM Spindle Speed
  • 20 Position Side Mount Tool Changer
  • Programmable Coolant
  • 1MB Expanded Memory
  • Visual Quick Code
  • Rigid Tapping
  • Chip Auger
