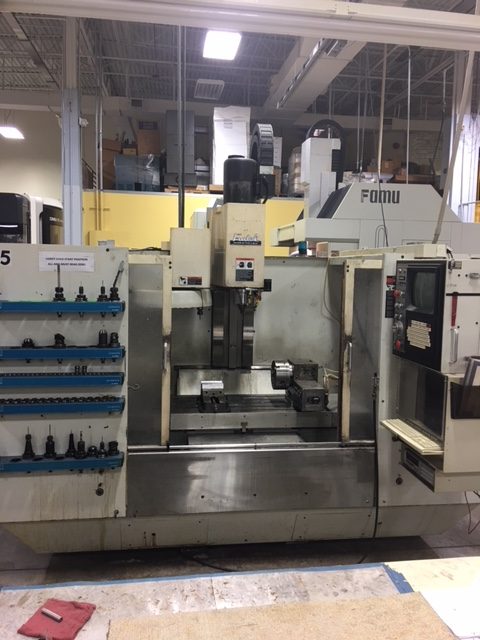

1998 FADAL VMC-4020HT
Fadal 88HS, 40.20.20", 10000 RPM, Cat 40, 15 HP, 21 Tools, Fourth Axis Table, Box Way Construction
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
X-Axis 40"
-
Y-Axis 20"
-
Z-Axis 28"
-
Table Size 47.94" x 20"
-
Spindle Speed 75 - 10
-
Spindle Taper BT 40
-
Spindle Motor 15 HP
-
Tools 21
-
Table Load Capacity 1500 lbs.
-
Rapid Traverse Rates (X&Y/Z) 700 / 600 IPM
-
Rapid Traverse Rates 400 IPM
-
Max Tool Diameter 3" / 6"
-
Max Tool Length 15"
-
Max Tool Weight 15 lbs.
-
Machine Dimensions (L x W x H) 116" x 87" x 95"
-
Machine Weight 10,000 lbs.
-
Spindle Nose to Table Top 4" - 24"
-
Spindle Torque 160 ft. lbs.
Product Features

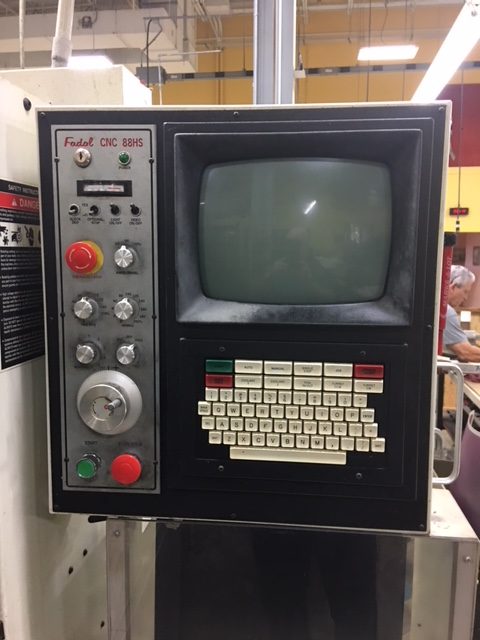

- FADAL 88HS CNC Control
- 12" Monochrome CRT
- FADAL VH-65 Fourth Axis Rotary Table
- 6" Manual 3-Jaw Chuck
- High Torque Spindle Motor
- Rigid Tapping
- Heavy Duty Box Way Construction
