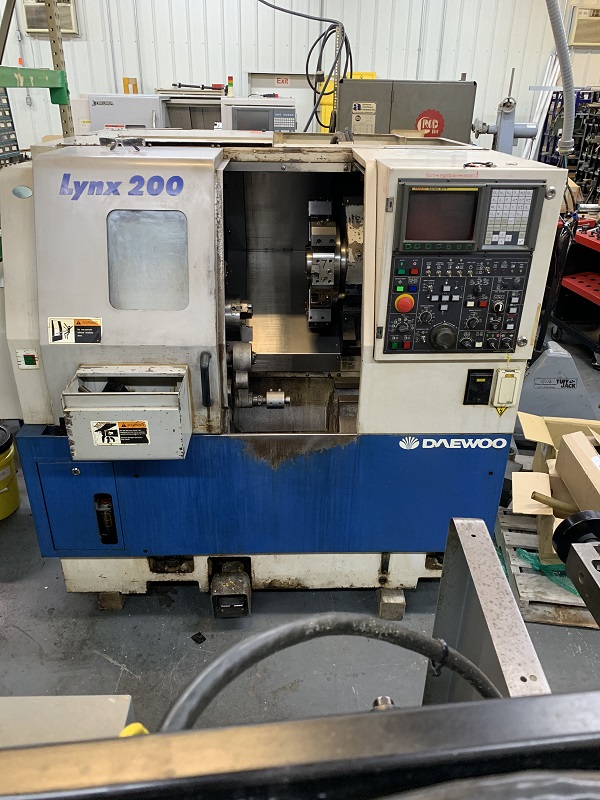

1998 DAEWOO LYNX 200A

Fanuc 0T, 1.77" Bar, 6.5" Chuck, 5000 RPM, 12 Tools, 10 HP, Parts Catcher, Tool Presetter, Chip Conveyor, Barfeed Interface
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6.5"
  • Max Diameter Bar Capacity 1.77"
  • Max Swing Over Bed / Carriage 18.11" / 13.78"
  • Turning Diameter (Max / Std) 11" / 6.5"
  • Max Machining Length 12.7"
  • Spindle Motor 10 HP
  • Spindle Speed 50 - 5000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.09"
  • Tools 12
  • Rapid Traverse Rates (X & Y / Z) 790 / 945 IPM
  • X-Axis Travel 6.3"
  • Z-Axis Travel 13"
  • Turret Index (Single Step) 0.12 Seconds
  • Machine Dimensions (L x W x H) 63.78" x 62.6" x 61.02"
  • Machine Weight 7030 lbs.

Product Features

  • Fanuc 21T CNC Control
  • 9" Monochrome CRT

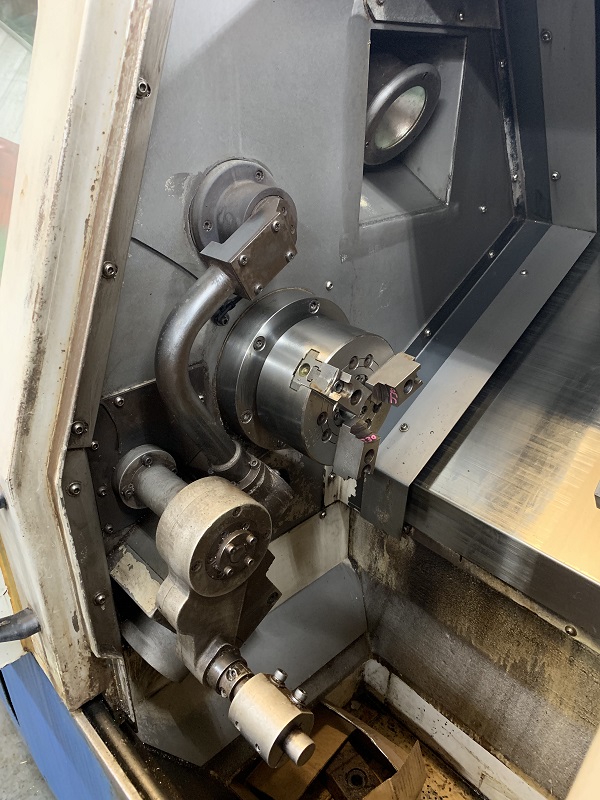

  • 6.5" Hydraulic Chuck
  • Manual Tailstock
  • Tool Presetter
  • Auto Parts Catcher
  • Turbo Chip Conveyor (Side Exit)
  • Barfeed Interface
  • Heavy Duty Box Way Construction
  • Manufacture Date February 1998
  • 13,951 Power On Time
  • 4427 Cutting Time
