< Back to Vertical M/C
Special Item

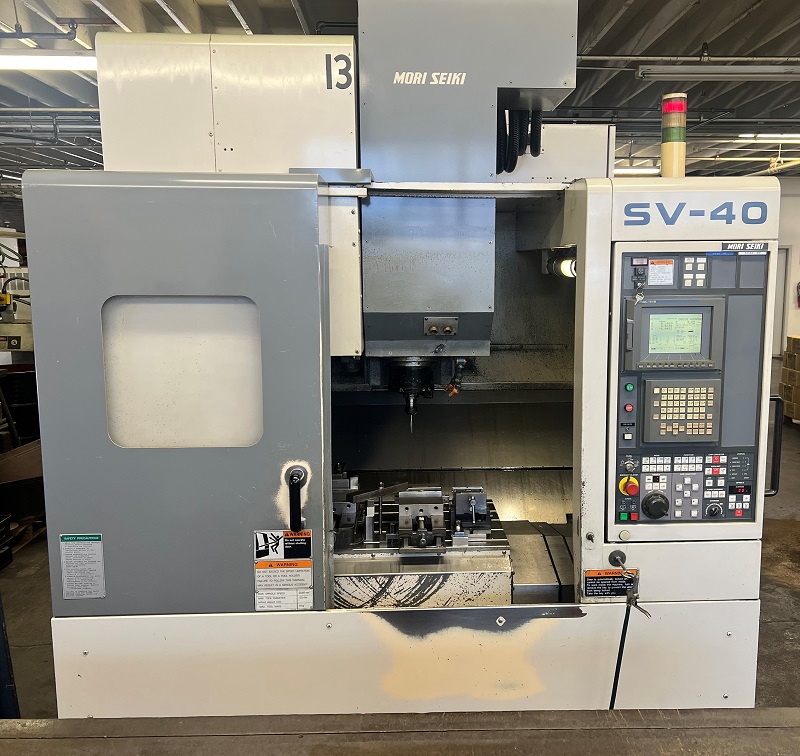

1997 MORI SEIKI SV-40

FANUC 18M, 24.17.18", 12000 RPM, 30 SMTC, Cat 40, 30 HP, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 23.6"
  • Y-Axis 16.9"
  • Z-Axis 18.1"
  • Table Size 35.38" x 19.63"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 / 24.8 HP
  • Tools 30
  • Table Load Capacity 1100 lbs.
  • Rapid Traverse Rates 1260 IPM
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x D x H) 84.5" x 97.6" x 106.4"
  • Machine Weight 11,466 lbs.
  • Spindle Nose to Table Top 5.9" - 24"
  • Tool Change Time (T - T / C - C) 0.91 / 2.8 Seconds

Product Features

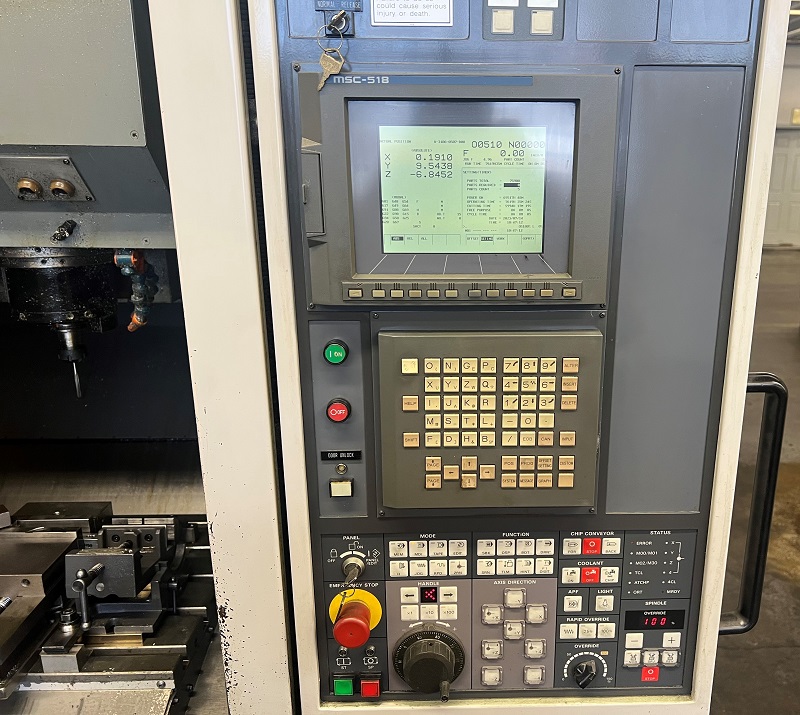

  • MORIC MSC-518 (FANUC 18iM) CNC CONTROL
  • 10.4" Monochrome LCD
  • PC/MCIA Interface
  • Rigid Tapping
  • Helical Interpolation
  • Three Color Tower Light

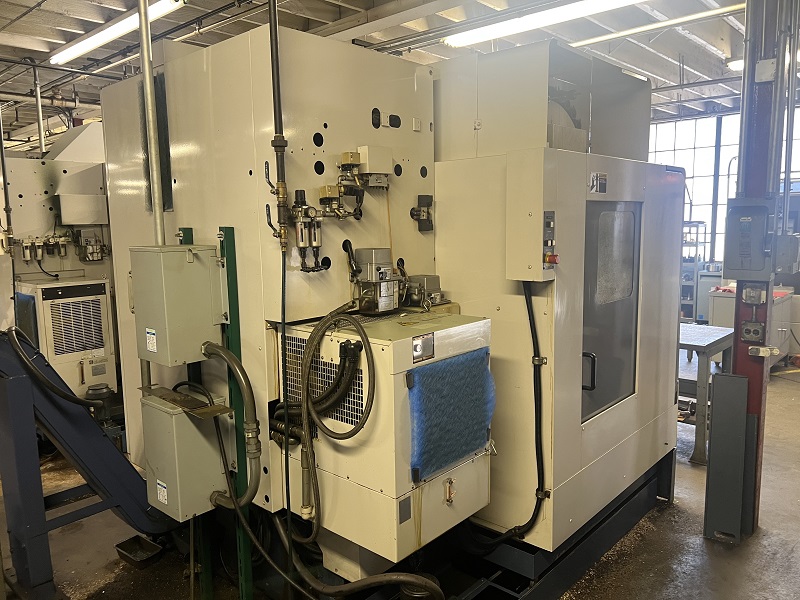

  • Spindle Chiller Unit
  • Full Enclosure

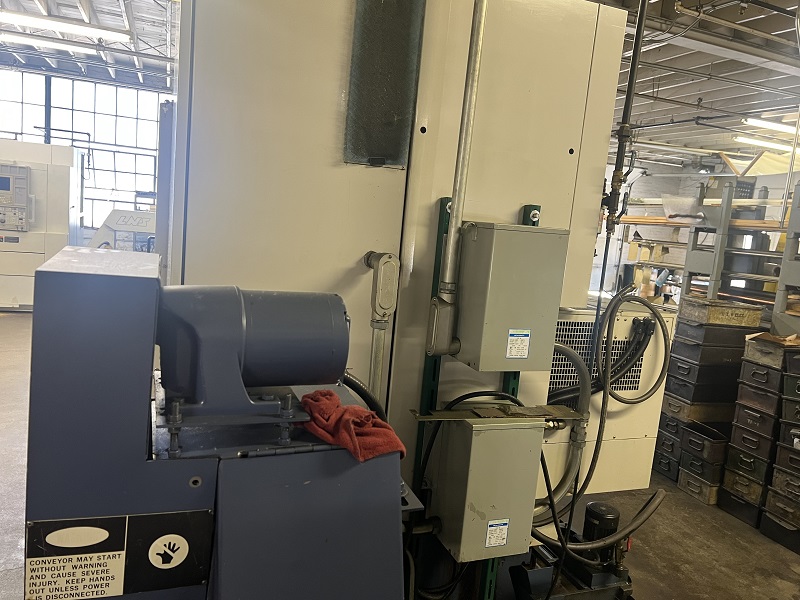

  • Turbo Chip Conveyor (Hinge Type Right Rear Exit)
  • Manufacture Date June 1997

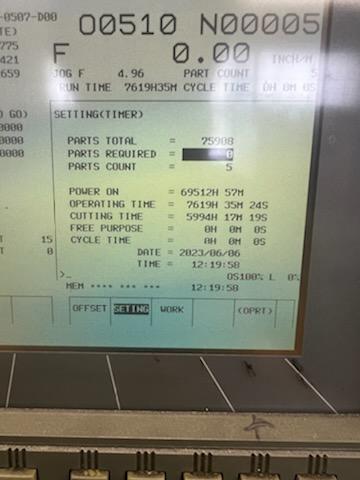

  • 69,512 Power On Time
  • 7619 Operating Time
  • 5994 Cutting Time
