Special Item

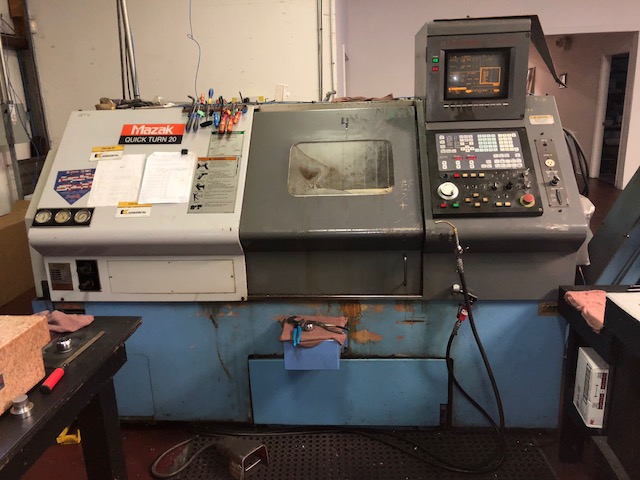

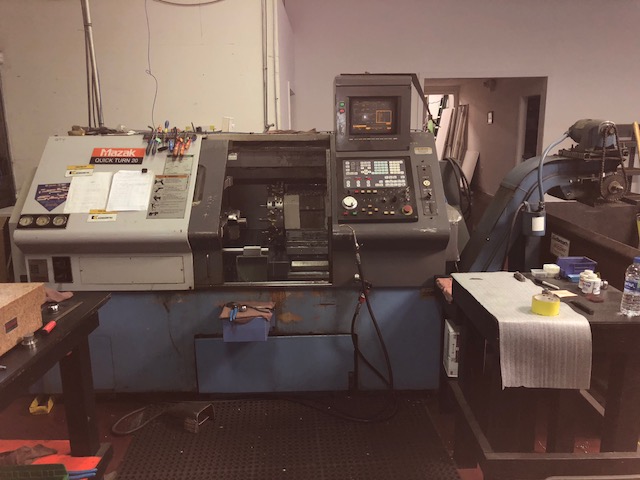

1997 MAZAK QUICK TURN 20

T-Plus, 2" Bar, 8" Chuck, 5000 RPM, 12 Tools, 20 HP, Tool Eye, Tailstock, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed 17.32"
  • Max Machining Length 17.5"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.44"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 1200 / 1300 IPM
  • X-Axis Travel 7.125"
  • Z-Axis Travel 20.125"
  • Turret Index (Single Step / Full) 0.35 / 0.72 Seconds
  • Machine Dimensions (L x W x H) 105" x 68.5" x 73.1"
  • Machine Weight 9370 lbs.
  • Max Turning Diameter 11.81"
  • Tailstock Taper MT#4

Product Features

  • MAZATROL T-Plus CNC Control
  • 10.4" Monochrome CRT

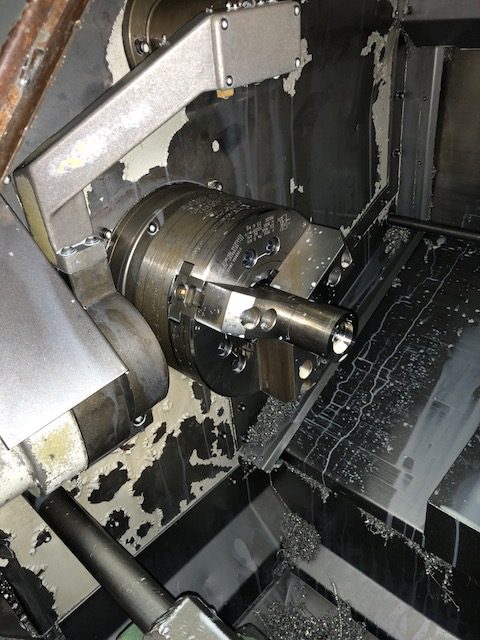

  • 8" Kitagawa B208 Hydraulic Chuck

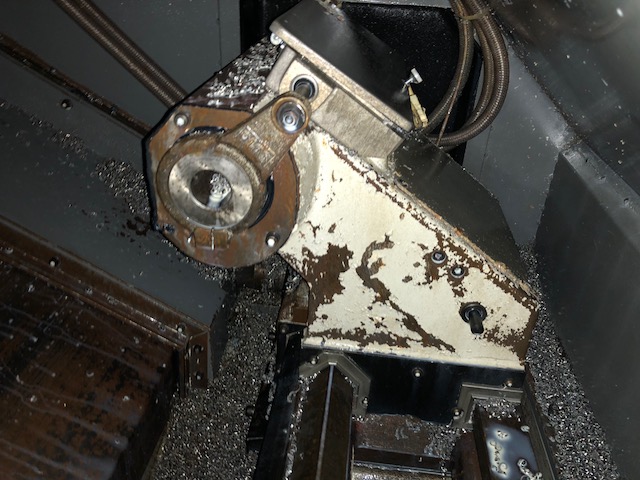

  • Programmable Tailstock Body & Quill
  • Programmable Tool Eye
  • Chip Conveyor (Side Exit)
  • Auto Parts Catcher

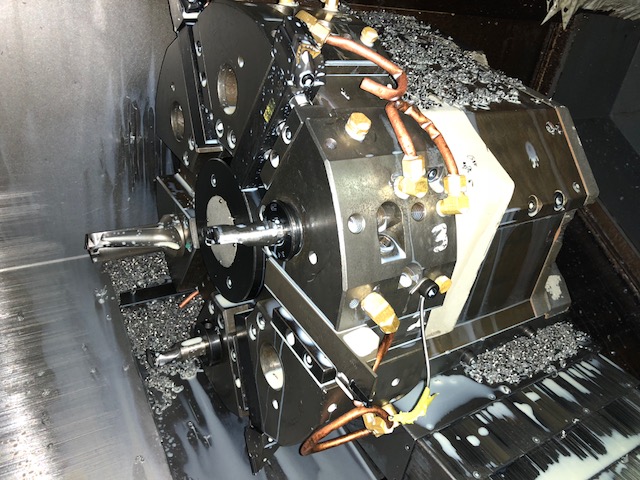

  • (4) OD Wedge Blocks
  • (3) Boring Bar Sockets
  • Manufacture Date October 1997
