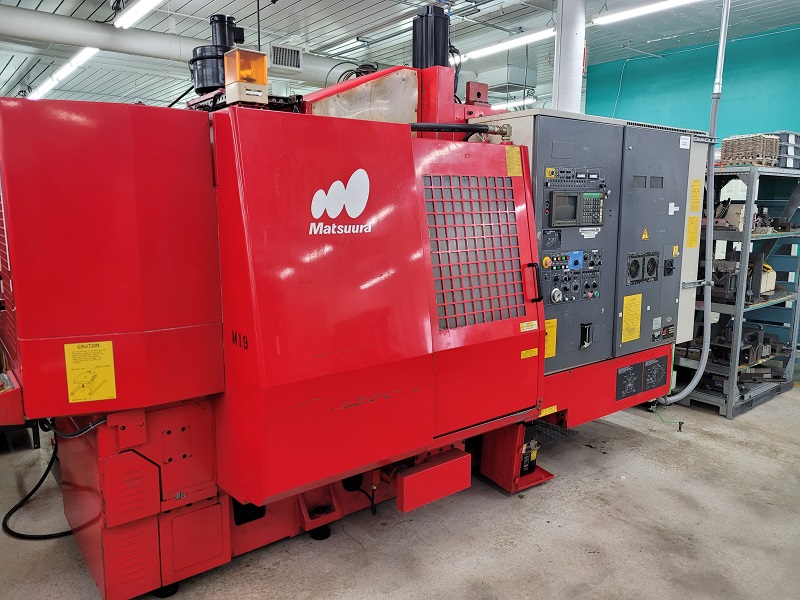

1997 MATSUURA MAM-500HF PC2

YASNAC i-80, 11.8" Plt, 20.18.18", 60 Tools, BT 40, 20 HP, One Degree, 8000 RPM, TSC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 660 lbs.
  • Pallet Size 11.81"
  • X-Axis 19.69"
  • Y-Axis 18.5
  • Z-Axis 17.72"
  • Pallet Index 1 Degree
  • Spindle Speed 30 - 8000 RPM
  • Spindle Taper BT 40
  • Spindle Motor 20 HP
  • Spindle Center to Table Top 1.57" - 20.08"
  • Tools 210
  • Tools 60
  • Rapid Traverse Rates 1181 IPM
  • Tool Change Time (T-T / C-C) 1 / 6 Seconds
  • Max Tool Length 13.78"
  • Max Tool Weight 22 lbs.
  • Machine Weight 14,000
  • Number of Pallets 2
  • Spindle Torque 108 ft. lbs.

Product Features

  • Yasnac i80 CNC Control
  • 9" Monochrome CRT
  • Automatic Two Pallet Changer
  • Through Spindle Coolant
  • Chip Conveyor (Hinge-Type Rear Exit)
  • Rigid Tapping
  • Spindle Chiller Unit
  • Yellow Operating Condition Light
  • Heavy Duty Box Way Construction
  • Manufacture Date April 1997
