1997 HITACHI SEIKI HT-23SIII

Seicos L Multi, 2.5" Bar, 10" Chuck, 15 HP, 3600 RPM, Barfeed, Parts Catcher, Q Setter, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.5"
  • Max Swing Over Bed 17.7"
  • Max Machining Length 12"
  • Spindle Motor 15 HP
  • Spindle Speed 30 - 3600 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 10
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 8.46"
  • Z-Axis Travel 19"
  • Turret Index (Single Step) 0.1 Seconds
  • Machine Dimensions (L x W x H) 139" x 82" x 80"
  • Machine Weight 8500 lbs.
  • Max Turning Diameter 13.38"
  • Tailstock Taper MT #5

Product Features

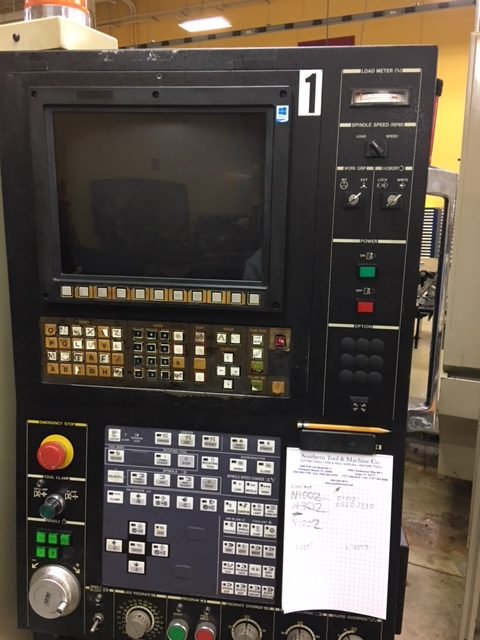

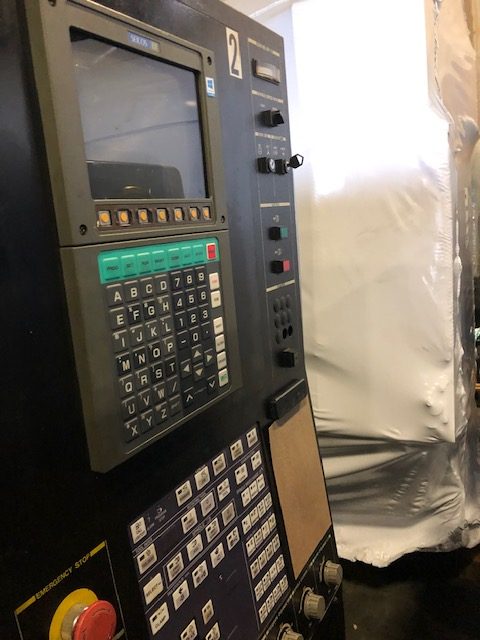

  • SEICOS L MULTI CNC CONTROL
  • 14" Color CRT
  • Conversational & G-Code Programming
  • 10" Hydraulic Chuck
  • Q Setter (Tool Presetter)
  • One Touch Programmable Tailstock
  • Chip Conveyor (Side Exit)
  • Auto Parts Catcher

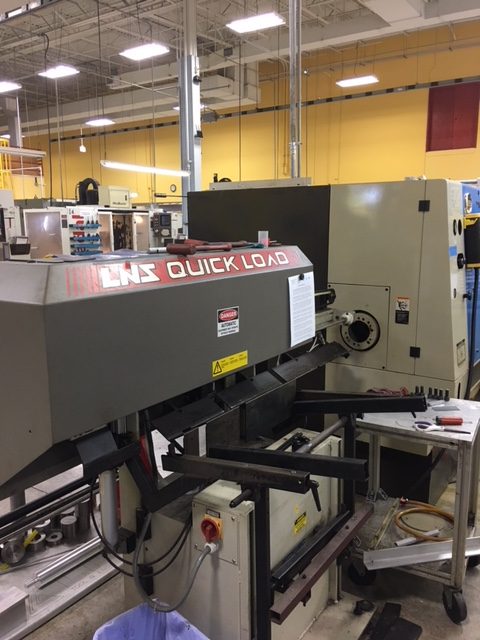

  • LNS Quick Load Short Magazine Barfeed
  • Yellow Operating Light
