Special Item

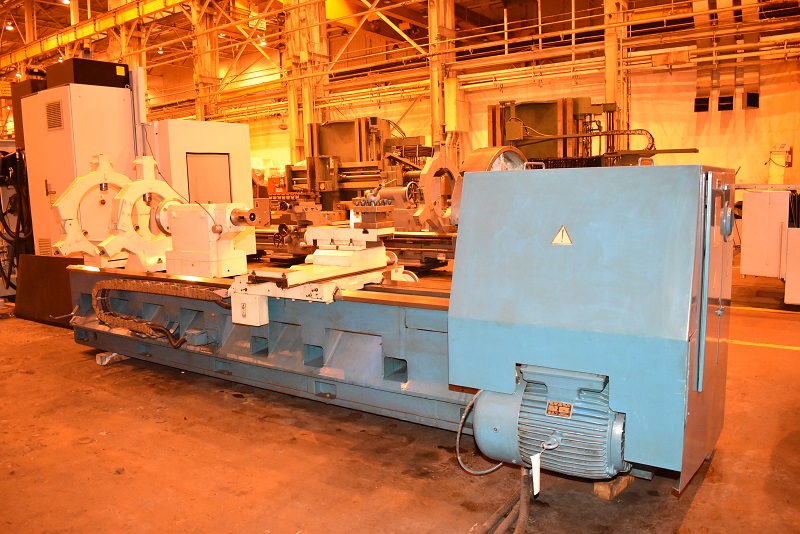

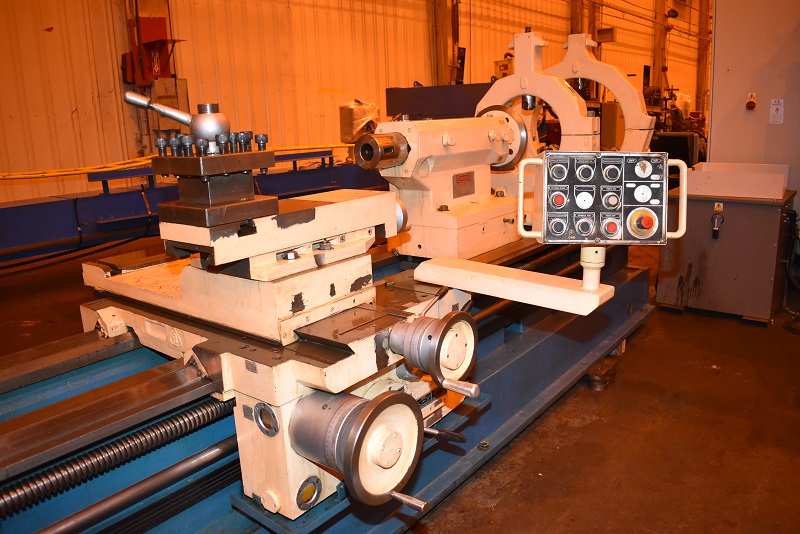

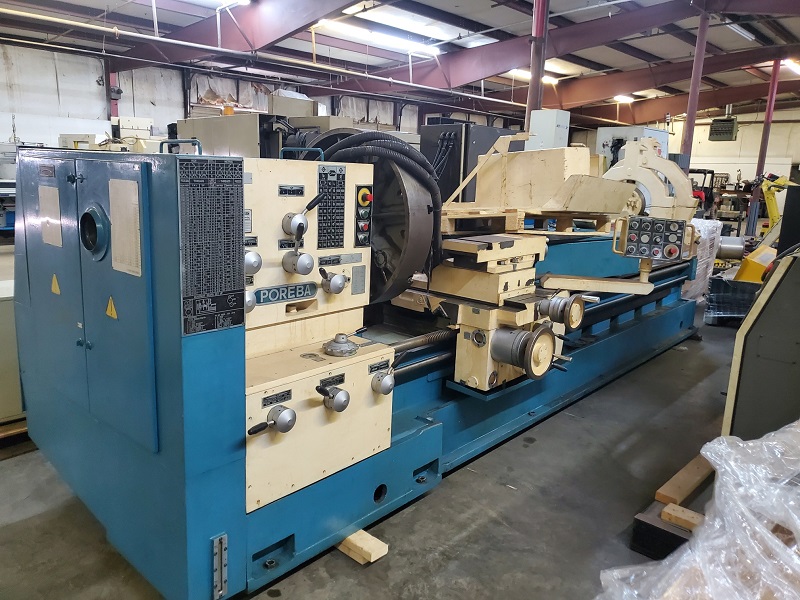

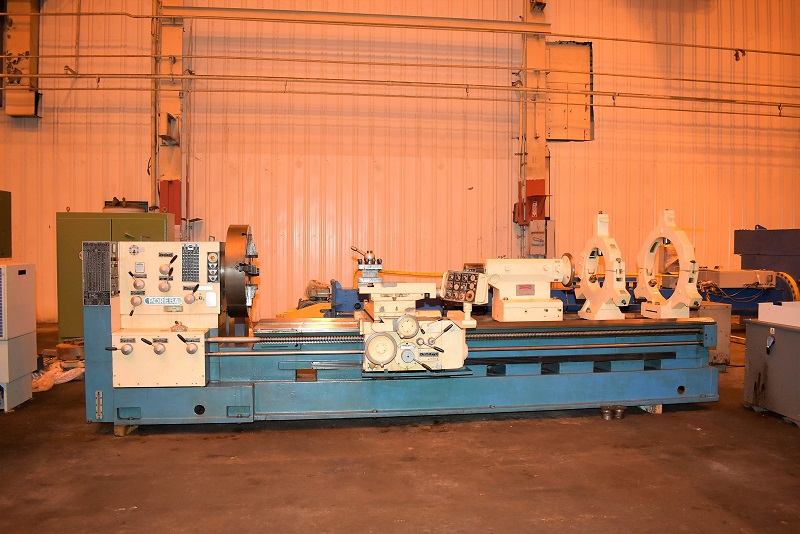

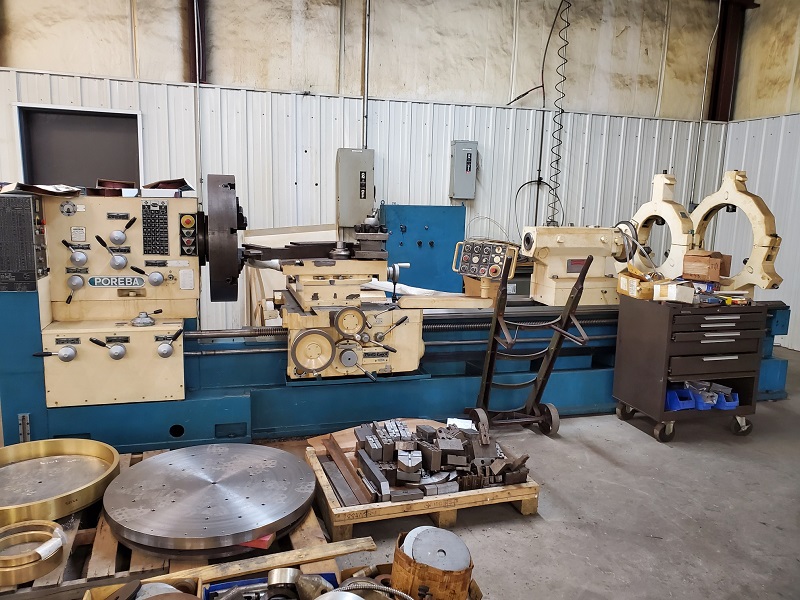

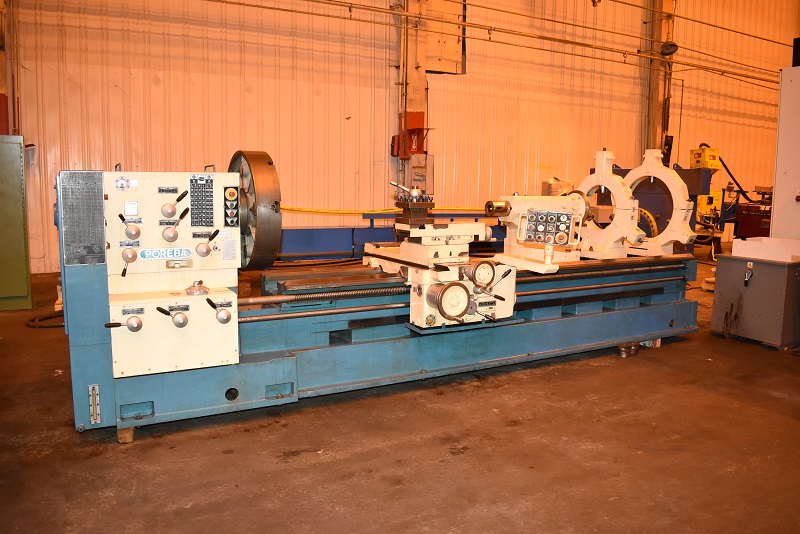

1996 PROEBA TRP93/3M ENGINE LATHE

36"/25"/45" Swing, 19" Chuck, 3.63" Bore, 40 HP, 710 RPM, A1-11 Spindle Nose, 31" 4-Jaw, (2) Steady Rests
Talk to a representative today!
(803) 548-8000

Product Details

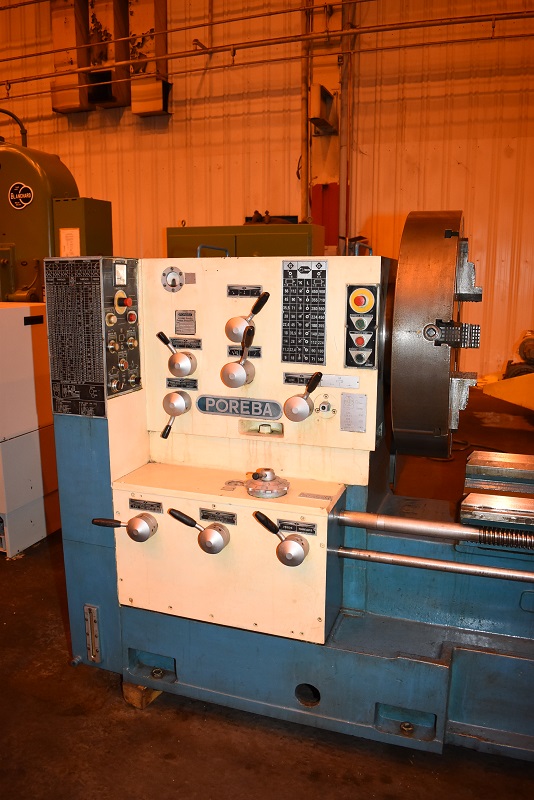

  • Spindle Motor 40 HP
  • Spindle Speed 7.1 to 710 RPM
  • Spindle Nose A1-11
  • Spindle Bore 3.63
  • Rapid Traverse Rate 160 IPM
  • X-Axis Travel 22.8"
  • Z-Axis Travel 120"
  • Spindle Torque 4130 ft. lbs.
  • Swing In Removable Gap 45"
  • Swing Over Bed 36"

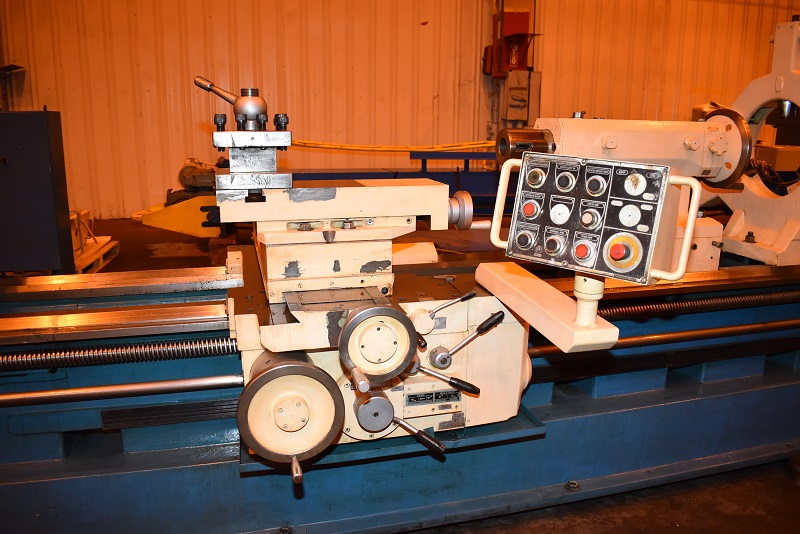

  • Swing Over Cross Slide 25"

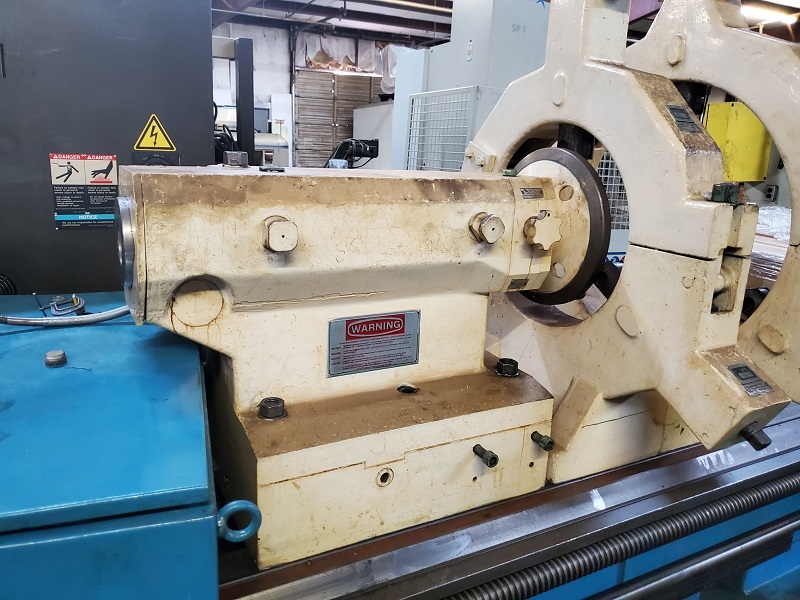

  • Tailstock Taper MT#6

Product Features

  • 19" Manual 3-Jaw Chuck

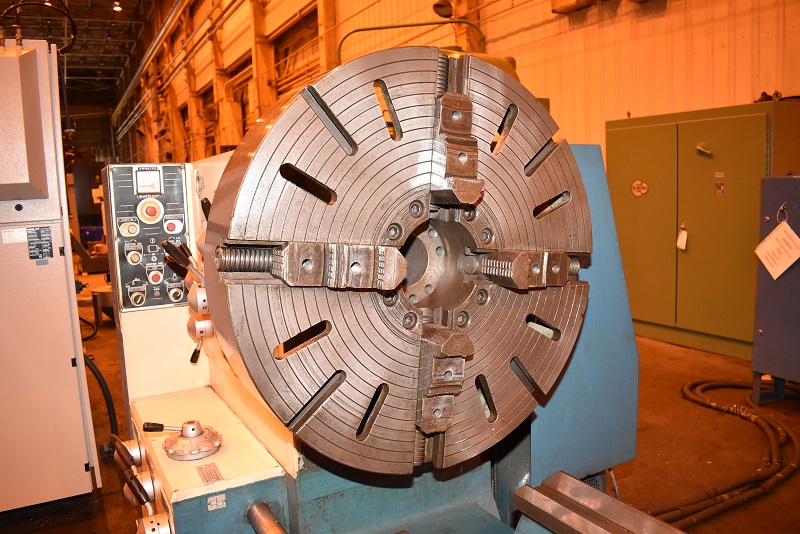

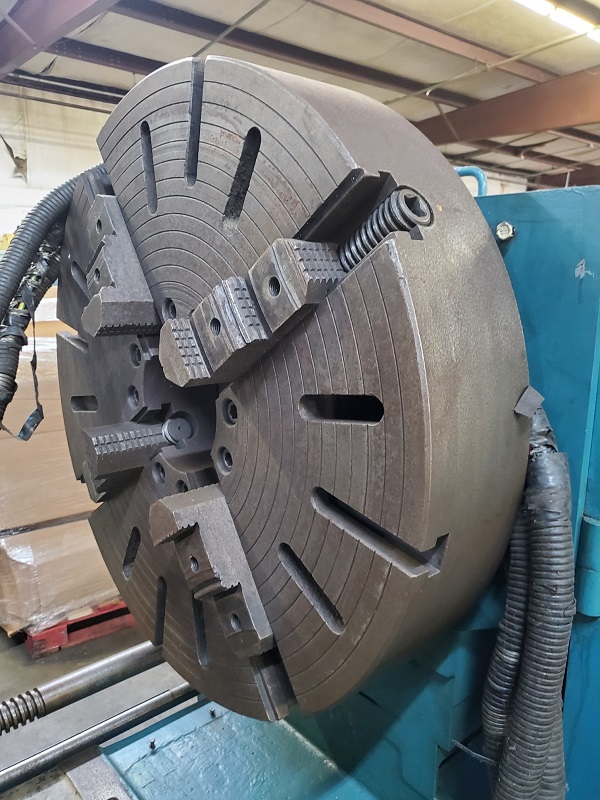

  • 31" Manual 4-Jaw Chuck
  • Inch/Metric Threading
  • Hardened V Block Guideways
  • 4-Way Tool Post
  • Removable Gap Bed

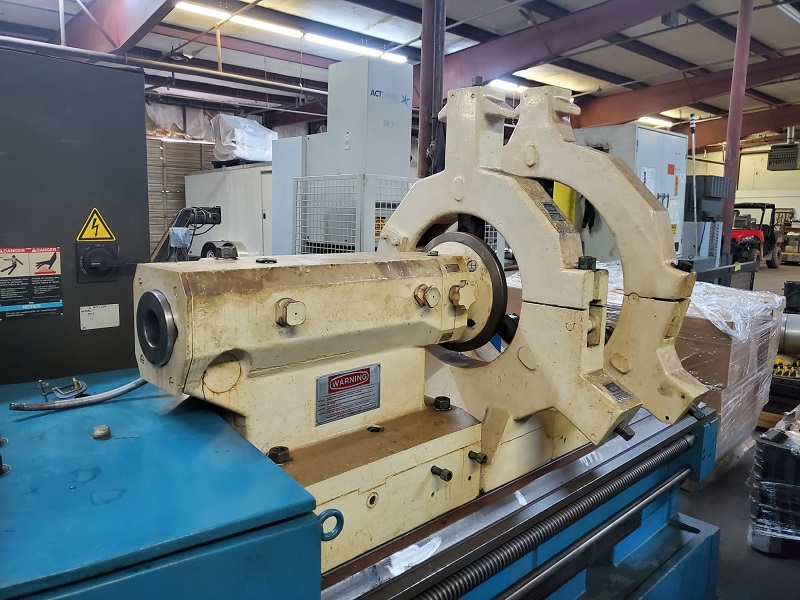

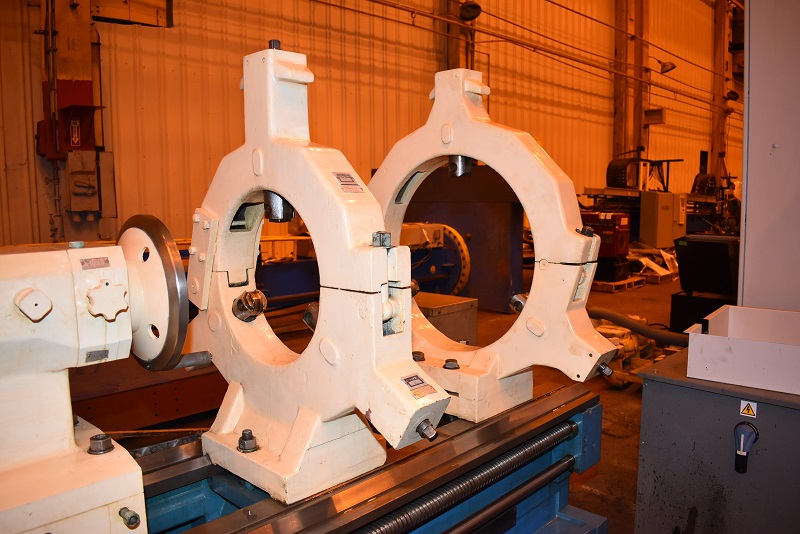

  • (2) 16" Dia. Capacity Roller-Type Steady Rests
