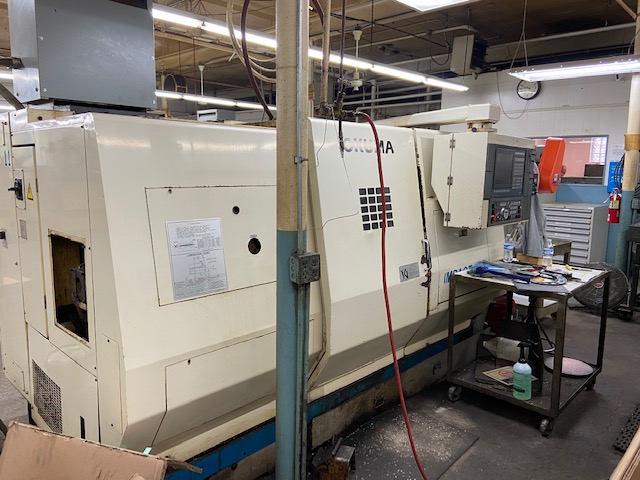

1996 OKUMA LU-15

OSP-7000L, 2" Bar, 8" Chuck, 4500 RPM, 30HP, Upper and Lower Turrets, Tailstock
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20.87" / 14.96"
  • Spindle Motor 30 / 20 HP
  • Spindle Speed 45 - 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.44"
  • Tools (Upper / Lower Turret) 12 / 8
  • Rapid Traverse Rates (X / Z) 591 / 787 IPM
  • X-Axis Travel (Upper / Lower) 10.23" / 5.51"
  • Z-Axis Travel (Upper / Lower) 25.2" / 24.21"
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 130.22" x 82.68" x 75.87"
  • Machine Weight 11,000 lbs.
  • Max Turning Diameter 14.17"
  • Tailstock Taper MT#4

Product Features

  • OKUMA OSP-7000L CNC CONTROL
  • 10.4" Color LCD

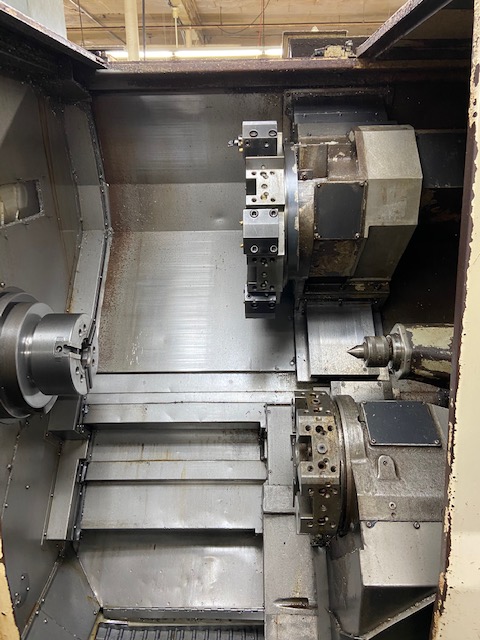

  • Upper and Lower Turrets for Simultaneous 4-Axis Turning
  • 8" Hydraulic Chuck
  • Programmable Tailstock
  • Slant Bed Box Way Construction

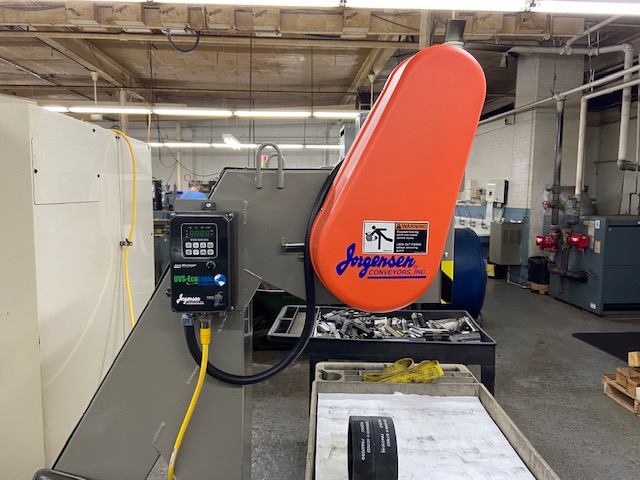

  • Jorgensen Chip Conveyor
